Oil Pump and Lube Tube Installation | Service Procedures TRSM0940

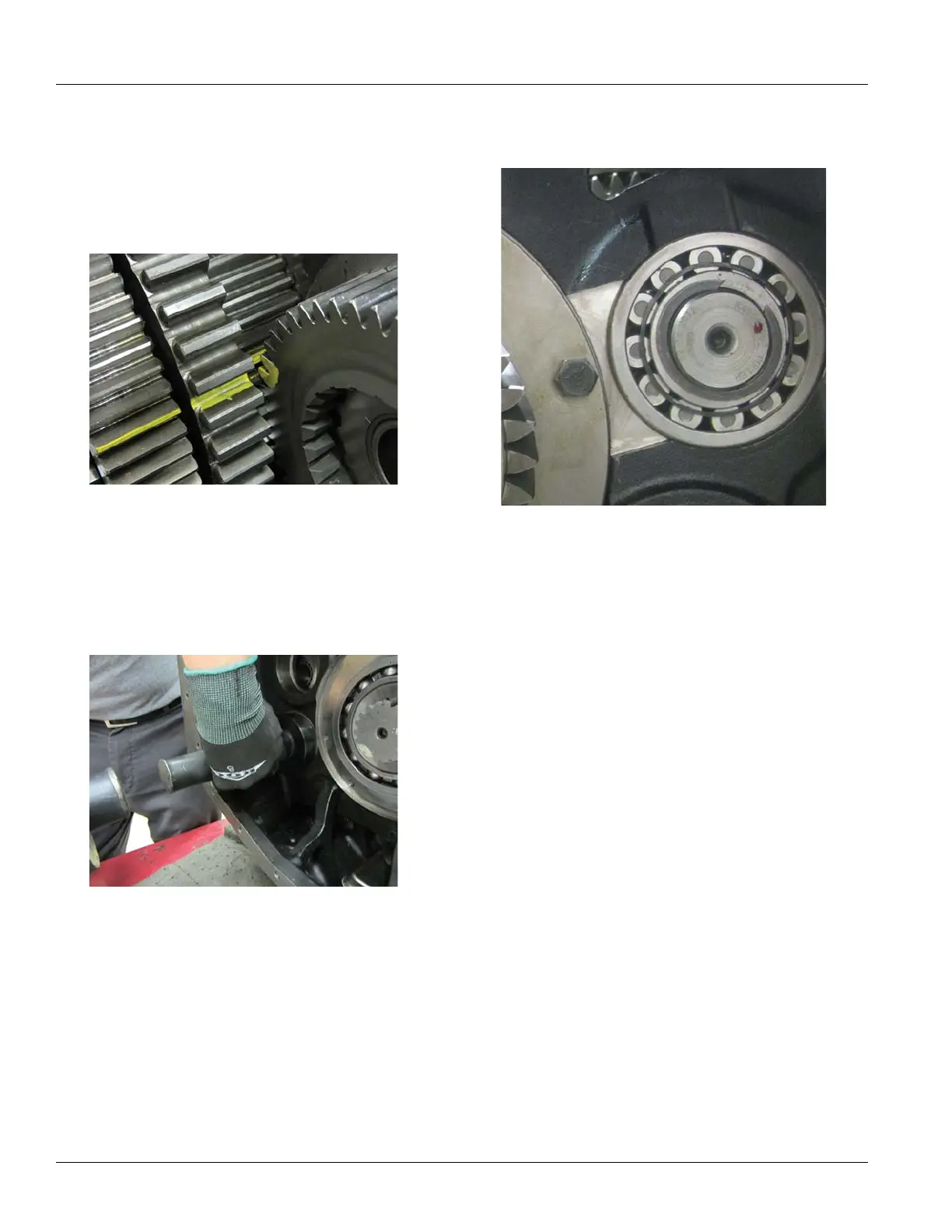

17. Line up the marked tooth on the upper Counter Shaft
with the two marked teeth on the Main Drive Gear.
Note: E
nsure the lower Counter Shaft is still in time
with the Main Drive Gear before moving the upper
Counter Shaft into place.
18. Using
the rear Counter Shaft Bearing Driver,
RR1012TR-4, drive the rear bearing onto the upper
Counter Shaft and into the intermediate wall of the
Transmission Main Case until there is enough room to
install the rear Counter Shaft Bearing snap ring.
19. Install
the rear upper Counter Shaft Bearing snap ring.
To Next Page
