TRSM0940 Service Procedures | Oil Pump and Lube Tube Installation

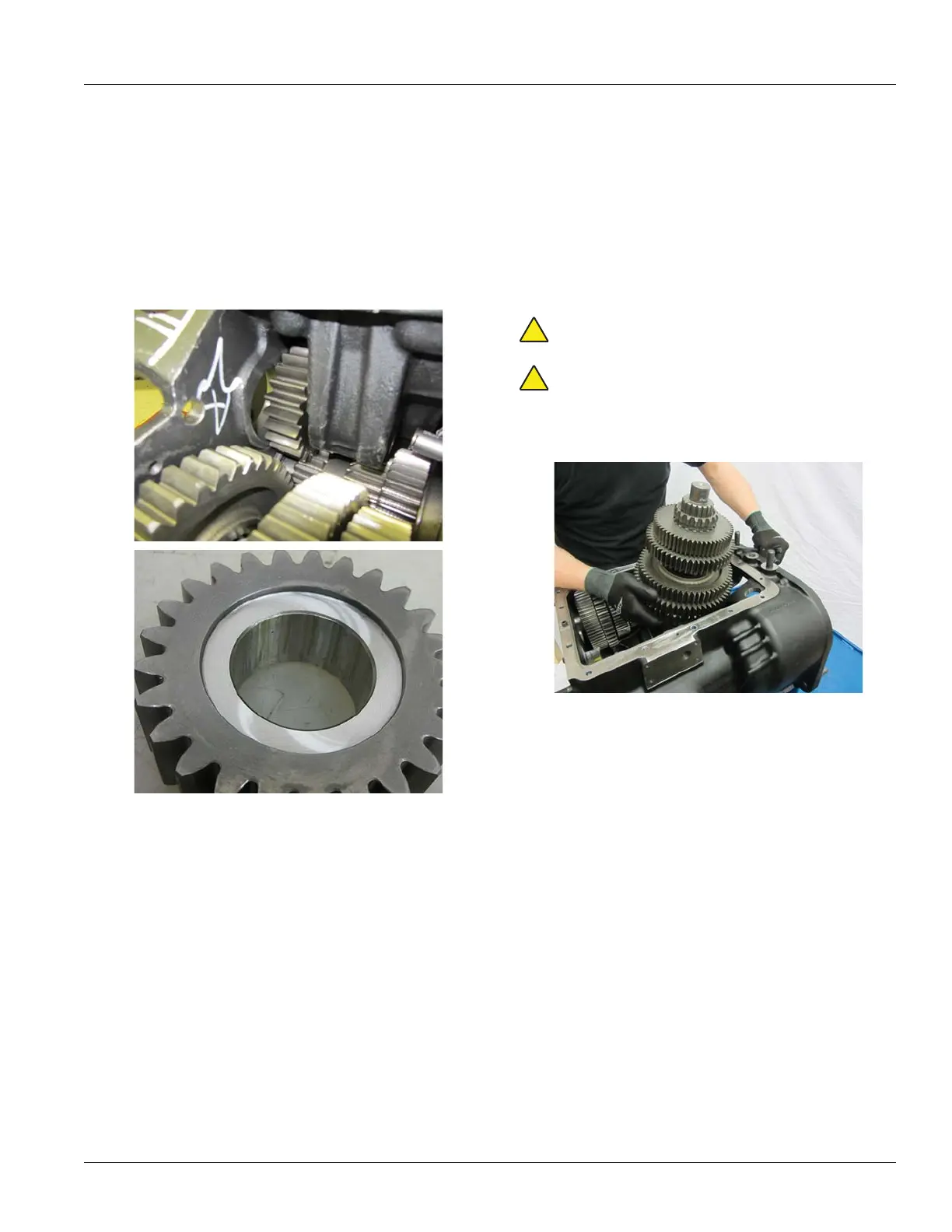

14. Place the upper Reverse Idler on top of the lower
Counter Shaft; tuck it as close to the side of the case as
possible.
Note: Ensure
the gear is installed in the proper direc-
tion. The gear should have “FRONT” scribed on the
side facing the
front of the transmission. If no mark-
ings, the face of the gear with
the machined indentation
should go to the rear of the transmission.
15. Using a J-hook, install
the Main Shaft assembly into
the Transmission Main Case by placing the rear of the
Main Shaft through the opening in the intermediate
wall and lowering the front of the Main Shaft into place.
Pull the Main Shaft forward and pilot the tip into the
Input Shaft Bushing.
Note: Reverse Gear needs to
be tucked into 1st Gear
(over the 1st–Reverse Sliding Clutch) during installa-
tion to ensure adequate room to position the Main
S
haft.
Caution: The front sliding clutch (4th–5th) can
slide off
the Main Shaft during installation.
Caution: The reverse gear will move freely during
installation. If low-force gearing is present, the hub will
also move
freely on the shaft.
16. Install the
rear Main Shaft Bearing partially into the
case to aid in supporting the Main Shaft assembly.
Note: Ensure the Reverse Gear
remains tucked against
1st Gear.
To Next Page
