LAS/VAS Auxiliary Section Assembly and Installation | Service Procedures TRSM0940

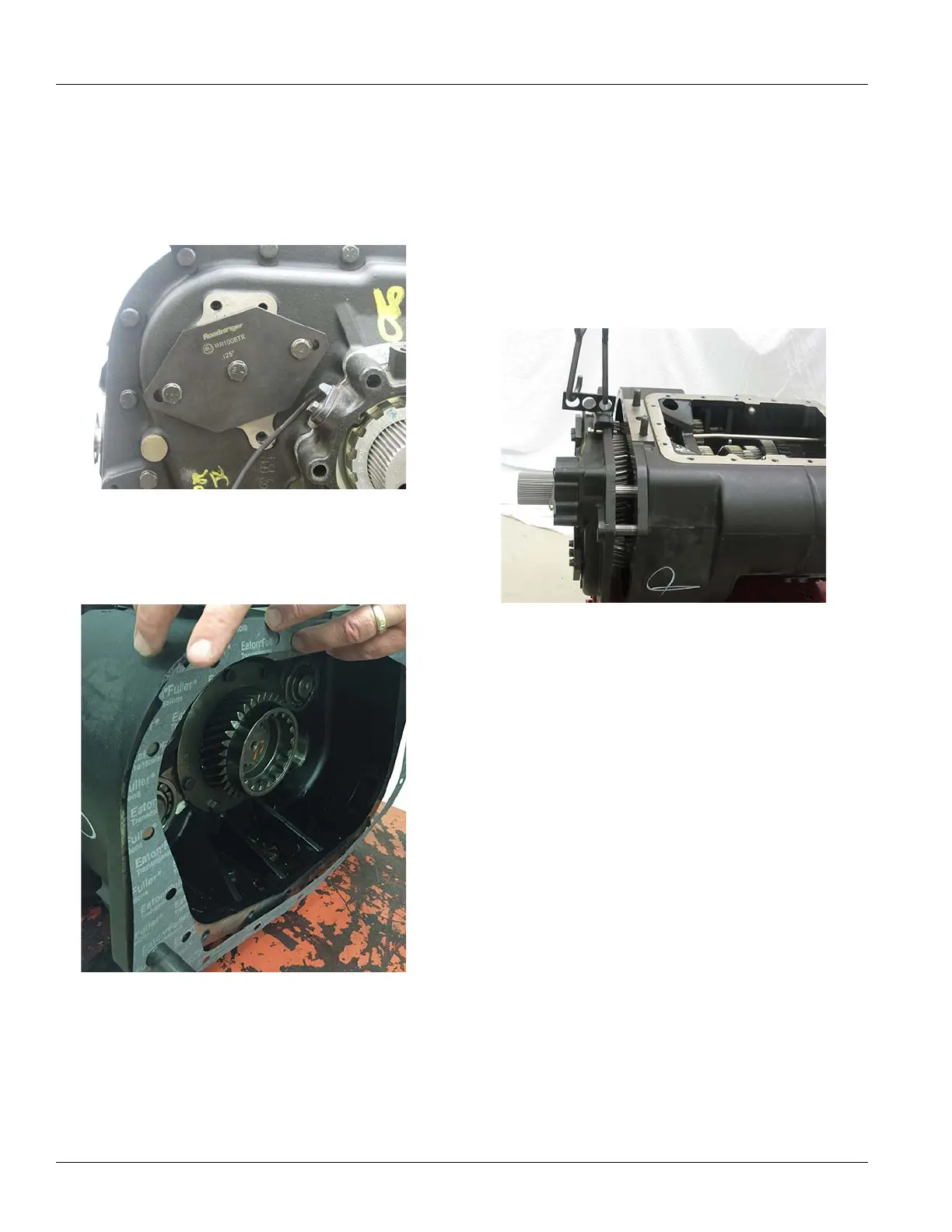

LAS/VAS Auxiliary Section Installation in Chas-
sis
1. Ensure that the Auxiliary Counter Shaft Support Straps
are still installed and all three cap screws are snug.
2. Install new gasket between the Main Case and Aux
iliary
Case.
3. Using a transmission
jack and support bracket, lift the
Auxiliary Case assembly and line up the two holes in
the Auxiliary Case with the Transmission Main Case
alignment pins. Push the case forward toward the
Transmission Main Case.
Note: Verify the Auxiliary Cou
nter Shafts are still timed
to the Auxiliary Reduction Gear before installing. This
will allow for easier installation and timing to the Auxil-
iary Drive Gear.
To Next Page
