LAS/VAS Auxiliary Section Assembly and Installation | Service Procedures TRSM0940
3. Subtract the thickness of feeler gauges needed to fit in
between the Auxiliary Case and Auxiliary Counter Shaft
Covers from 0.100”. Use that number to pick a shim
that will allow for end-play of within 0.001”–0.005”.
Note: Example:
0.042" of feeler gauges fit in between
Auxiliary Case and the Auxiliary Counter Shaft Bearing
Cover. Subtract 0.042" from 0.100" which equals
0.058". A shim of 0.052"–0.055” would be required for
the 0.003"–0.005” end-play. (If the required thickness
shim does not exist, use the closest undersized shim.)

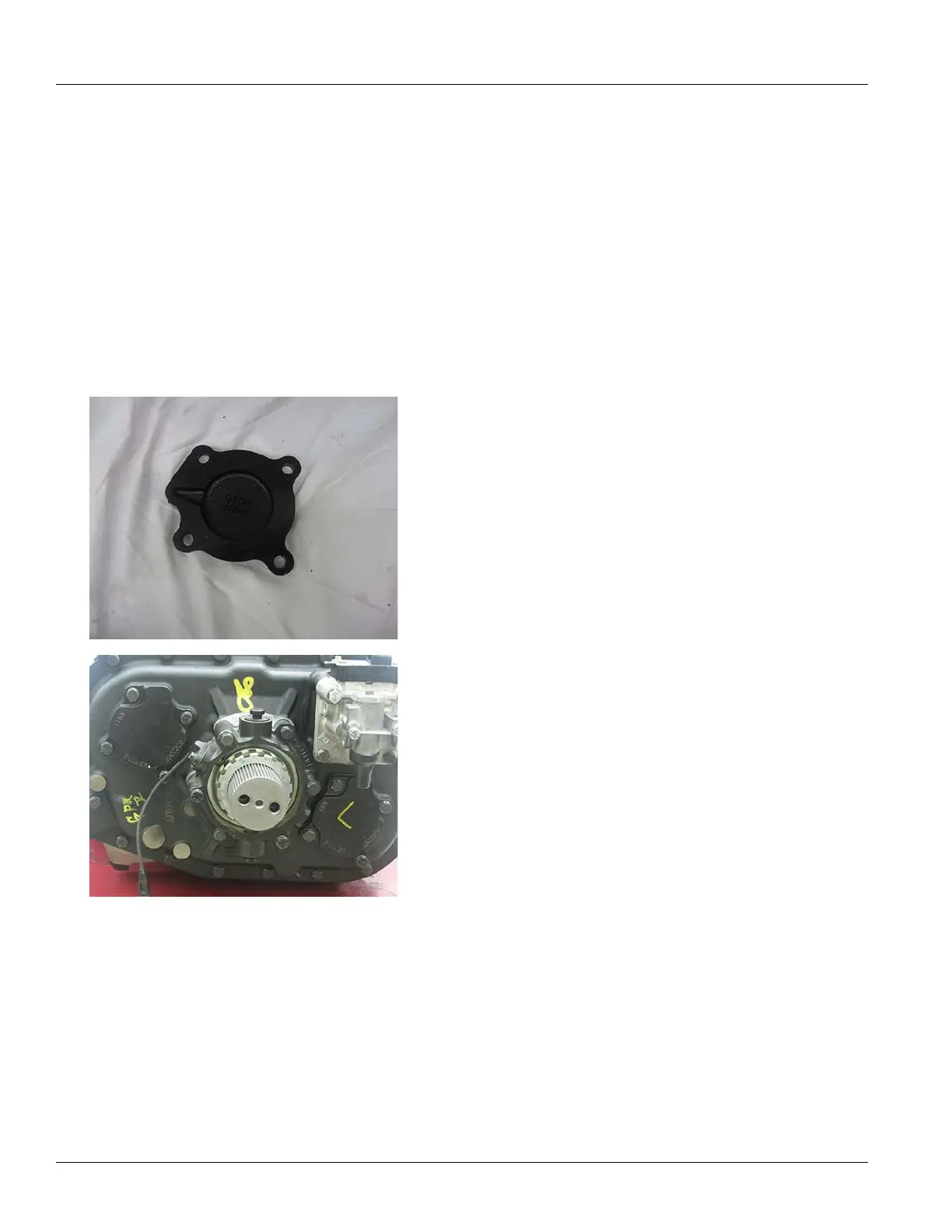

4. Install
required shim into bearing bore, Install new
gasket between the Main Case and Auxiliary Case.
