2018.12.12
© 2017 Eaton. All rights reserved
48
TRSM0940 Service Procedures | VCS/VMS Auxiliary Section Removal and Disassembly

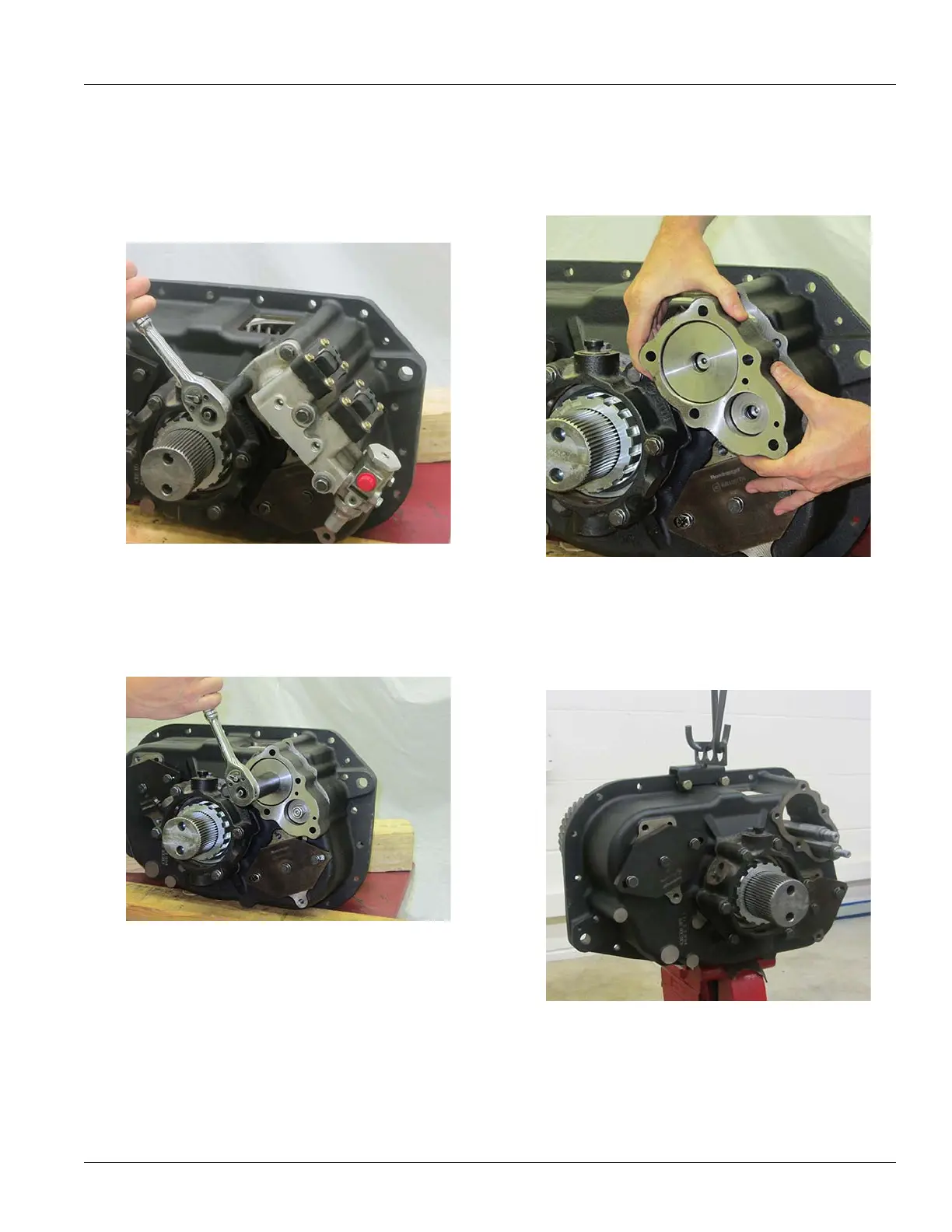

Auxiliary Section Disassembly
1. Remove the 5 cap screws that fasten the Combination
Cylinder Cover to the Auxiliary Main case. Remove the
Range Cover.
2. Remove th
e 15/16” & 3/4” nuts that fasten the Range
and Reduction Pistons to the Range and Reduction
shift Yoke bars.
3. Remove the Combination
Cylinder assembly.
Note: For Combination Disassembly and Assembly,
see
4. Prepare
the Auxiliary Section to remove the Auxiliary
Counter Shafts. For ease of disassembly, mount the
Auxiliary Section upright in a vise.
