TRSM0940 Service Procedures | VCS/VMS Auxiliary Section Removal and Disassembly

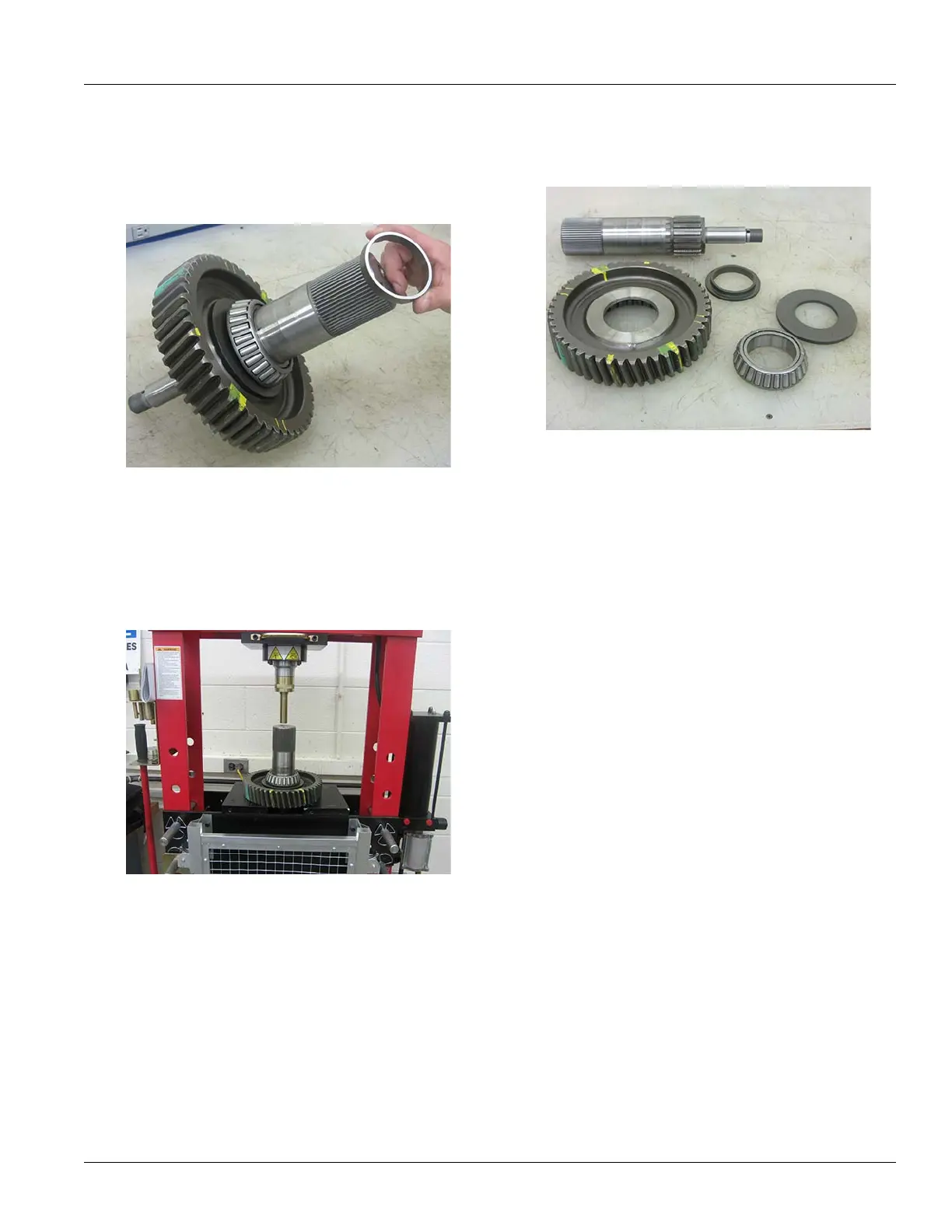

Auxiliary Mainshaft Assembly Disassembly
1. Remove the bearing inner spacer from the Output
Shaft
2. Using the Deep Reduction
Gear front as a base, press
the Output Shaft through the bearing and gear.
Note: I
f reusing the bearing set, the tapered roller bear-
ings are specific to each side of the race.
3. Remove the
spacer and stepped washer from the Deep
Reduction Gear
