TRSM0940 Service Procedures | VCS/VMS Auxiliary Section Assembly and Installation

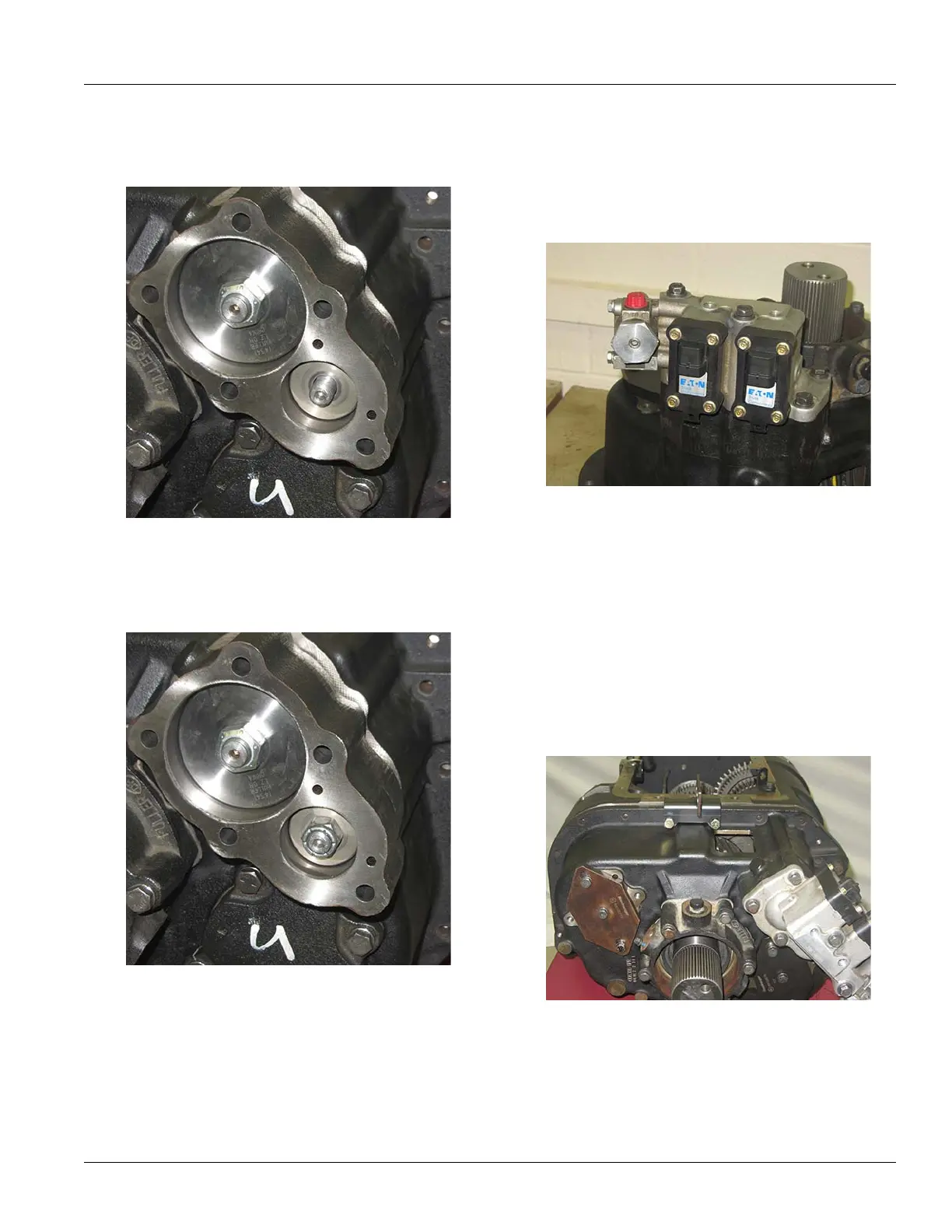

17. . Install the 15/16” nut to secure the range yoke bar.
Torque to 70-85 lb-ft.
18. Install the 3/4” nut that
secures the reduction yoke bar.
Torque to 50-65 lb-ft.
19. Position
a new gasket on the Combination Cylinder
mounting surface. Install the Combination Cylinder
Cover. Apply Eaton® Sealant #71205 or equivalent to
the five (5) retaining cap screws and torque to 35-45
lb-ft.
20. Attach the Auxiliary Section lifting bracket to
the top of
the Auxiliary Case.
21. Position
a new Auxiliary Case Gasket on the mounting
surface of the Main Case.
22. Install
the Auxiliary Case Assembly onto the transmis-
sion Main Case dowel pins. Using the Output Shaft,
wiggle the auxiliary
case forward until it is as far for-
ward as possible. Remove the auxiliary section lifting
bracket.
