65
© 2017 Eaton. All rights reserved
2018.12.12
VCS/VMS Auxiliary Section Assembly and Installation | Service Procedures TRSM0940

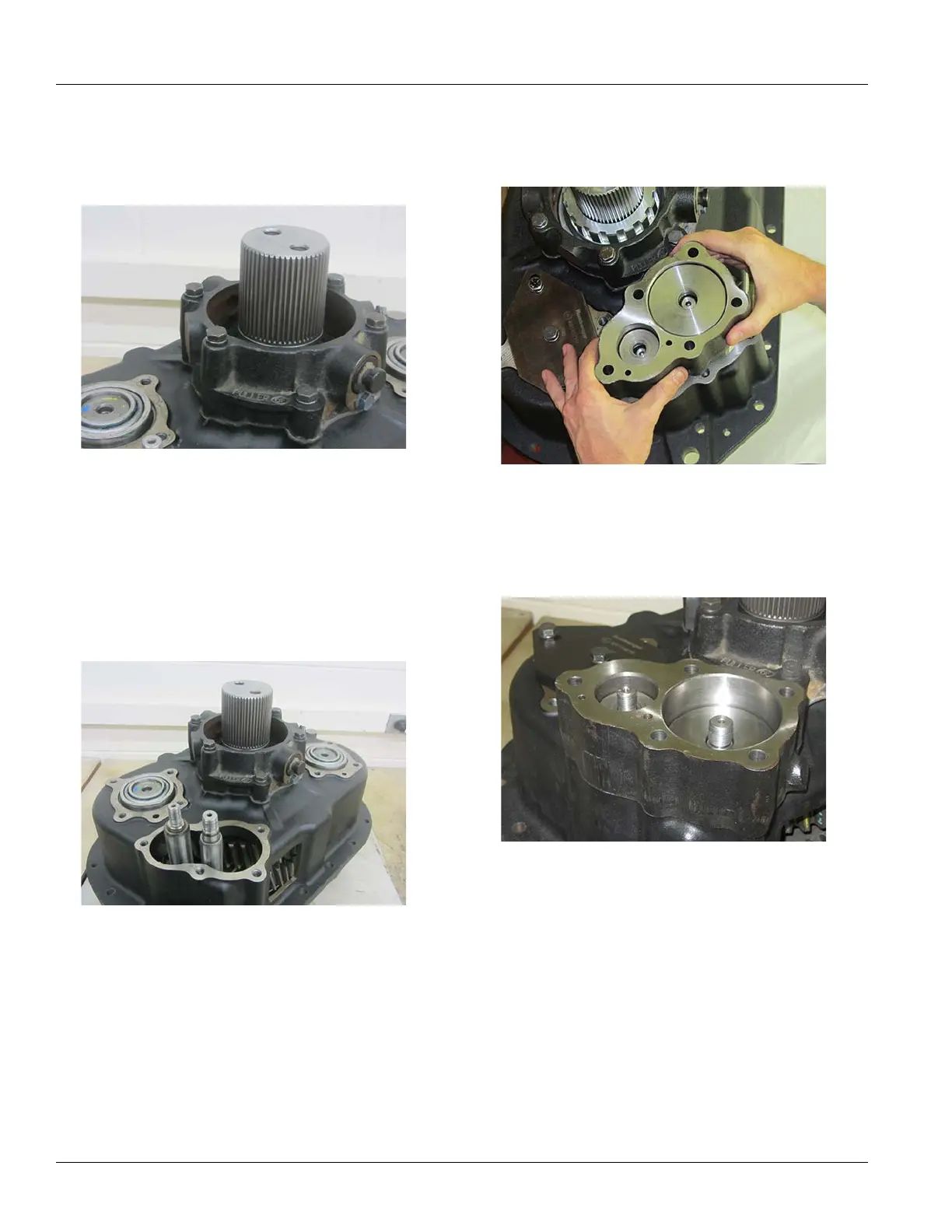

11. Install the six (6) retaining capscrews in the non-cham-
fered holes on the rear bearing co
ver. Torque to 35-45
lb ft.
12. Install the Auxiliary Counters
haft Bearing Races.
13. Install the Auxiliary Cou
ntershaft support straps,
RR1002TR, with 2 – 3/8”NC x 1” and 1 – 3/8” NC x 2
½” clean capsrews
Note: Do
not torque with an air gun. Tighten only to
hand tight.
14. Ap
ply lube to the o-rings on the Combination Cylinder
and the yoke bars for the Range and Reduction.
15. Position
a new gasket on the Combination Cylinder
mounting surface. Install the Combination Cylinder.
16. Apply
lube to the Range and Reduction pistons. Install
the pistons into their respective cylinders in the
Combination Cylinder.
To Next Page
