TRSM0940 Service Procedures | MHP/MXP/VHP/VXP Auxiliary Section Removal and Disassembly

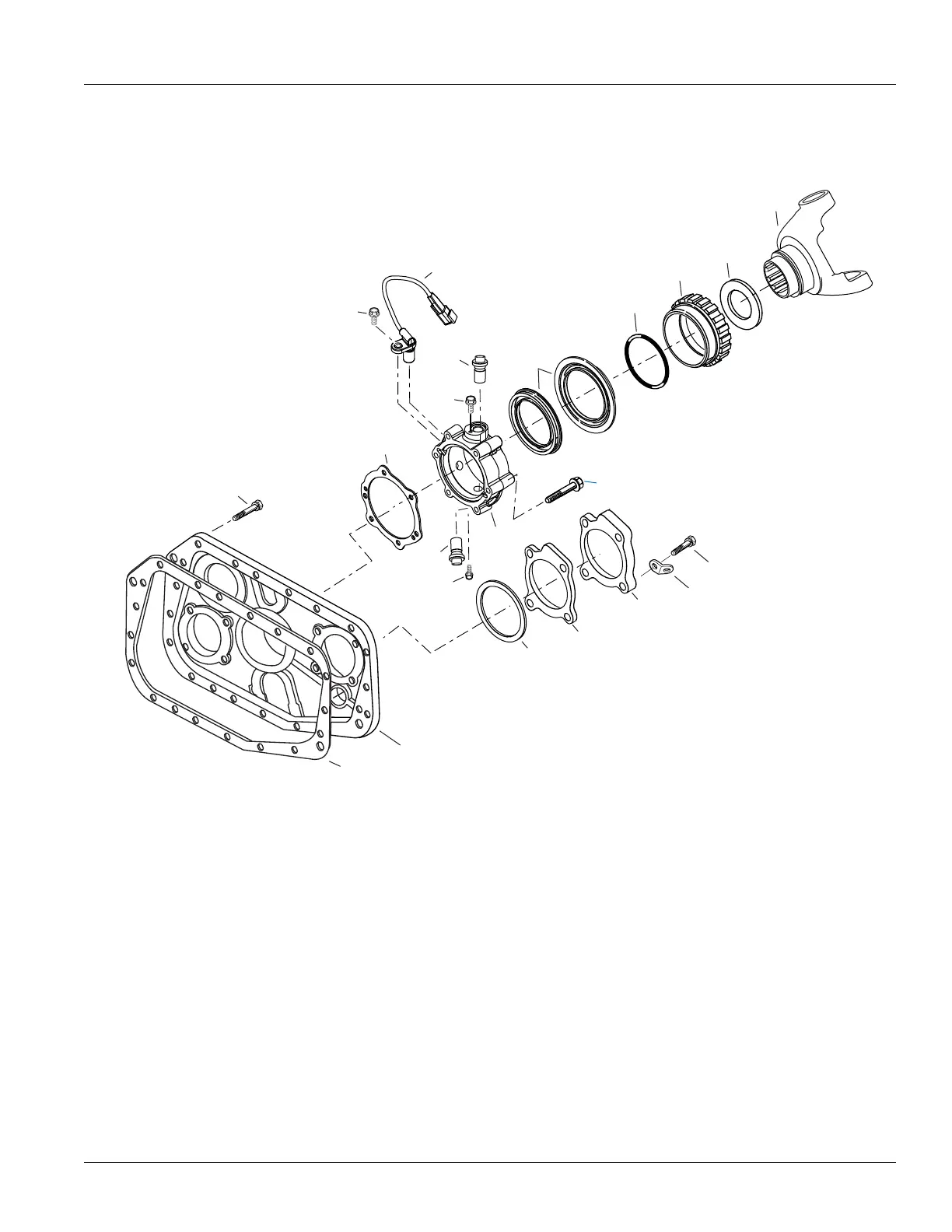

Component Identification
1. Rotor Assembly
2. O-Ring
3. Oil Seal
4. Capscrew
5. Rear Bearing Cover Assembly
6. Gasket
7. Capscrew
8. Capscrew
9. Cover
10. Gasket
11. Shim
12. Gasket
13. Rear Housing
14. Yoke-1710 Half Round
15. Lifting Eye
16. Capscrew
17. Capscrew
18. Directional Speed Sensor
19. Plug
20. Shield
4
6
3
7
5
2
1
9
8
10
11
12
13
14
15
16
17
18
19
20
4
19
