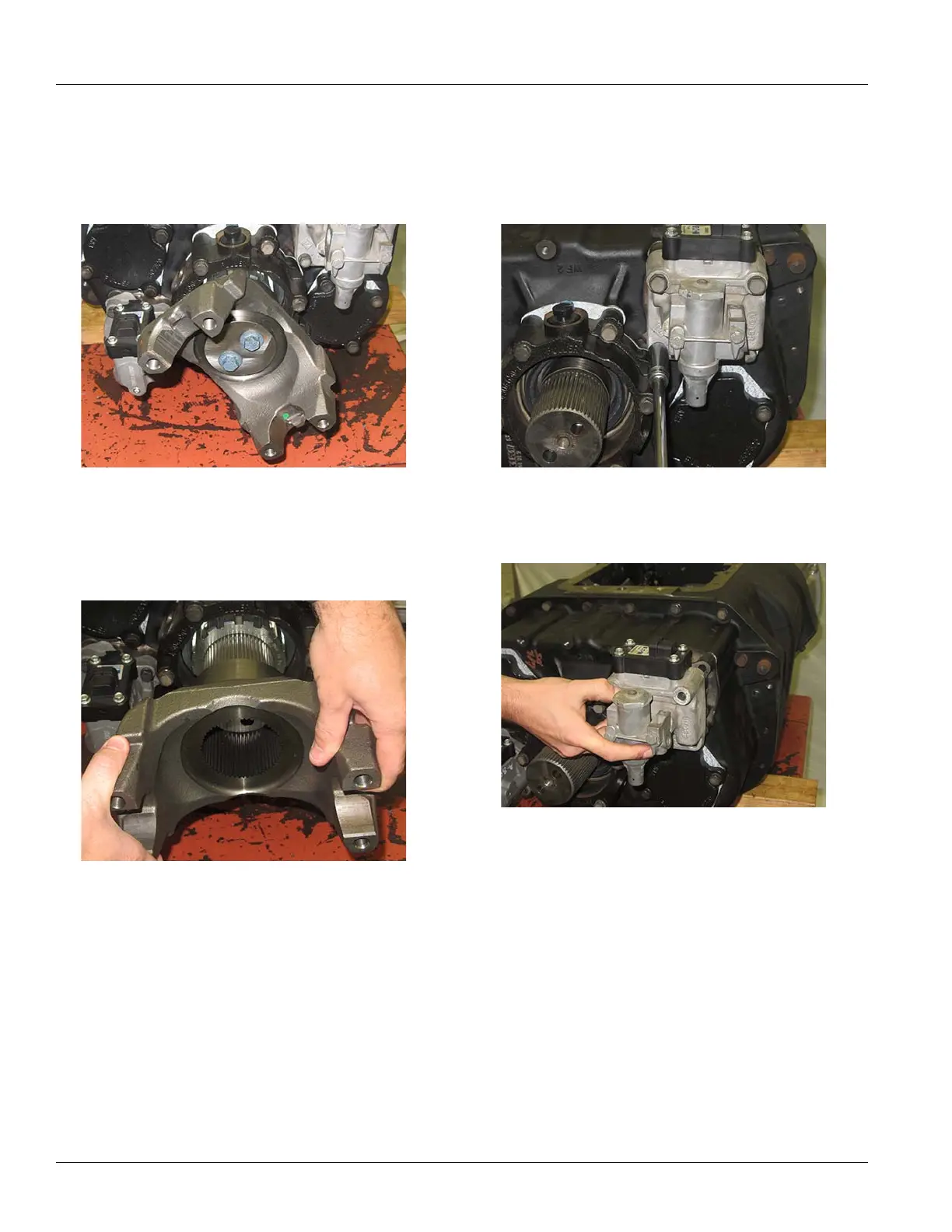

Output Yoke Removal
1. Remove the two bolts that fasten the output Yoke to
the output shaft.
2. Remove t
he Output Yoke from the Output Shaft. A maul
or hammer may be required to apply force to the yoke
for removal.
Auxiliary Section Removal
1. Remove the 4 9/16” cap screws on the Range Cylinder
Cover.
2. Remove the Range Cover Assembly
