TRSM0940 Service Procedures | MHP/MXP/VHP/VXP Auxiliary Section Removal and Disassembly

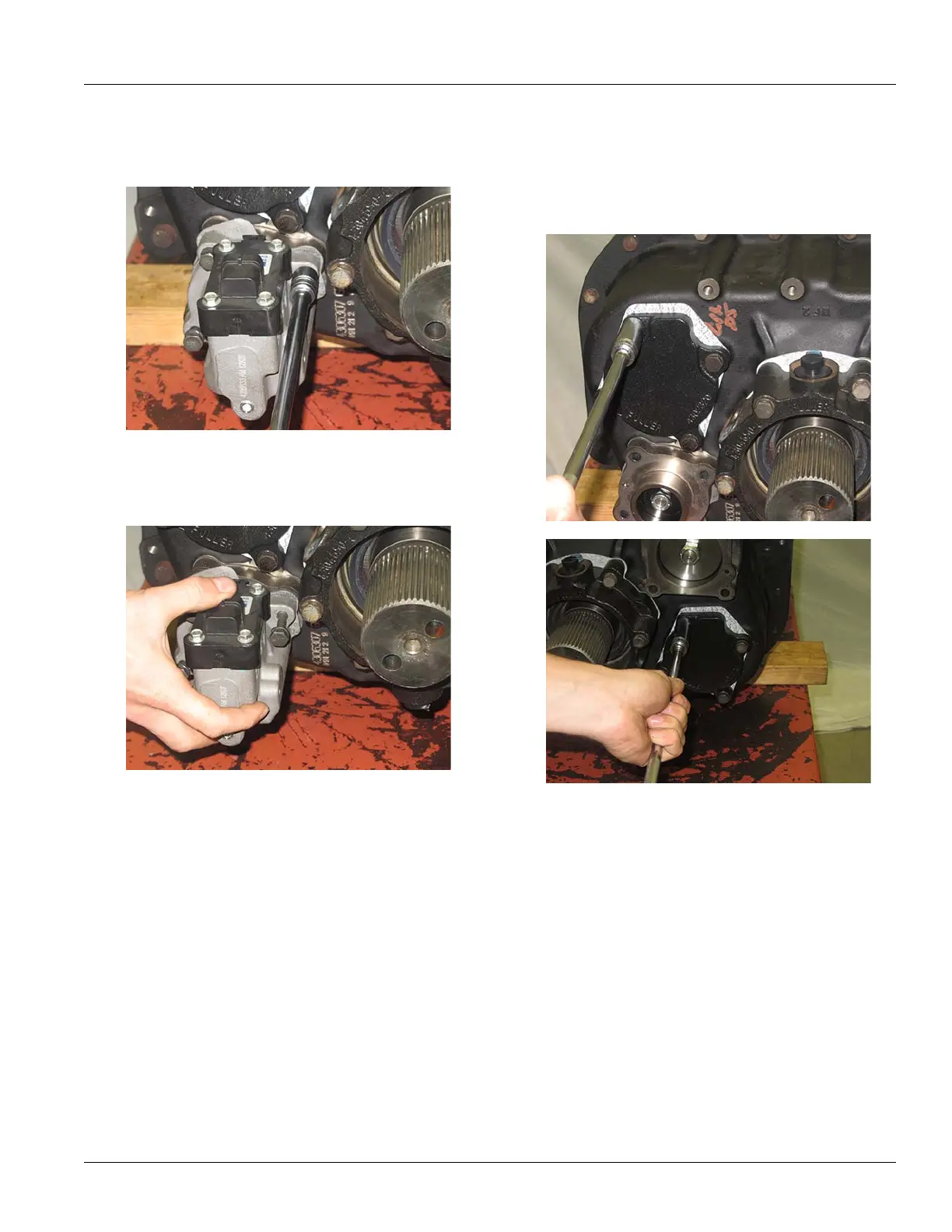

3. Remove the 4 1/2” cap screws retaining the Splitter
Cylinder Cover.
4. Remove the
Splitter cylinder cover
5. Remo
ve both Auxiliary Counter Shaft Bearing Covers.
Note: It
is helpful to mark the covers to indicate which
position they are in as they will need to be reinstalled in
the same location.
