MHP/MXP/VHP/VXP Auxiliary Section Removal and Disassembly | Service Procedures TRSM0940

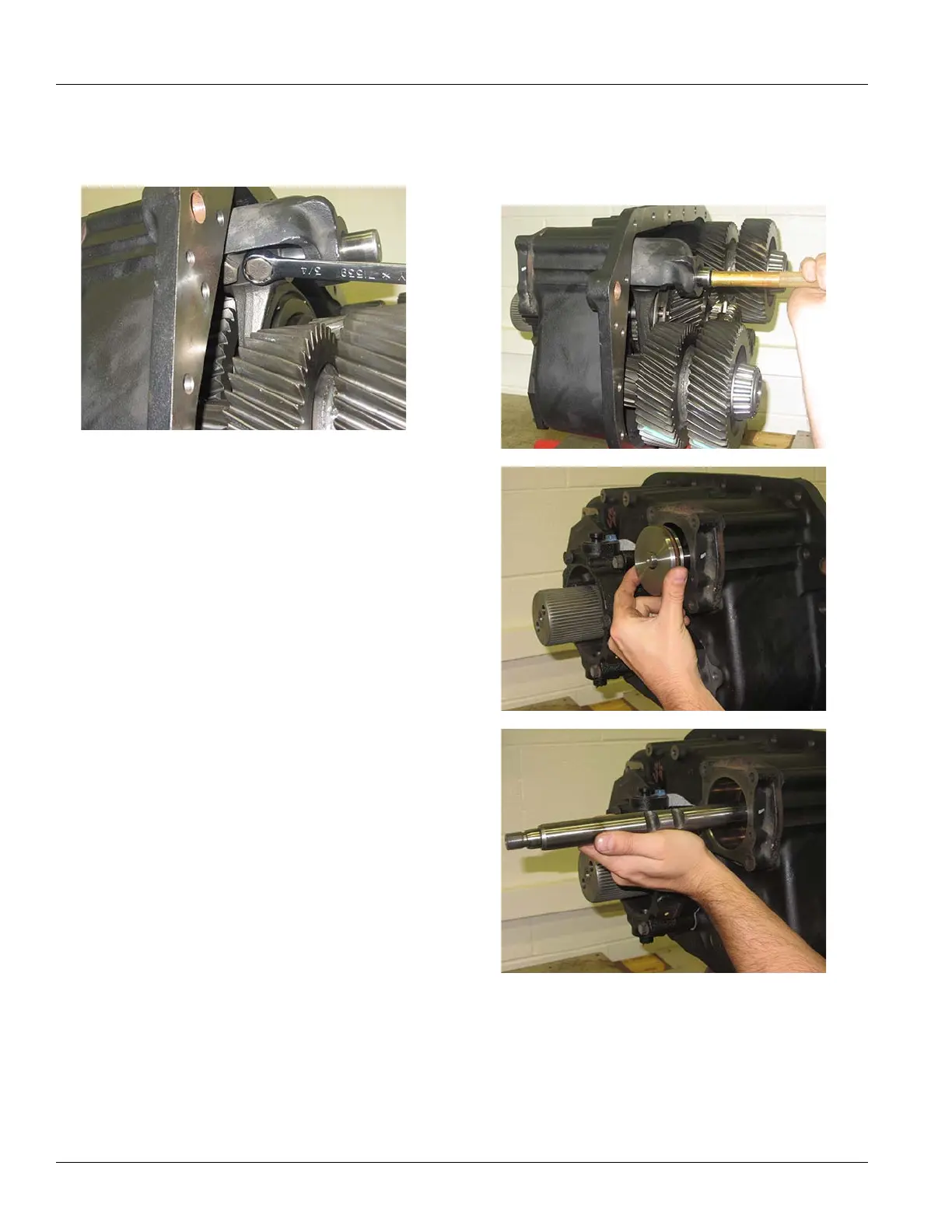

3. Remove the two 3/4” cap screws that secure the Range
Yoke Bar to the Range Yoke Fork.
4. Using a soft maul, drive the Range Yoke Bar towards
the rear of the auxiliary case. Remove the piston once
relieved from cylinder bore.
