TRSM0940 Service Procedures | MHP/MXP/VHP/VXP Auxiliary Section Removal and Disassembly

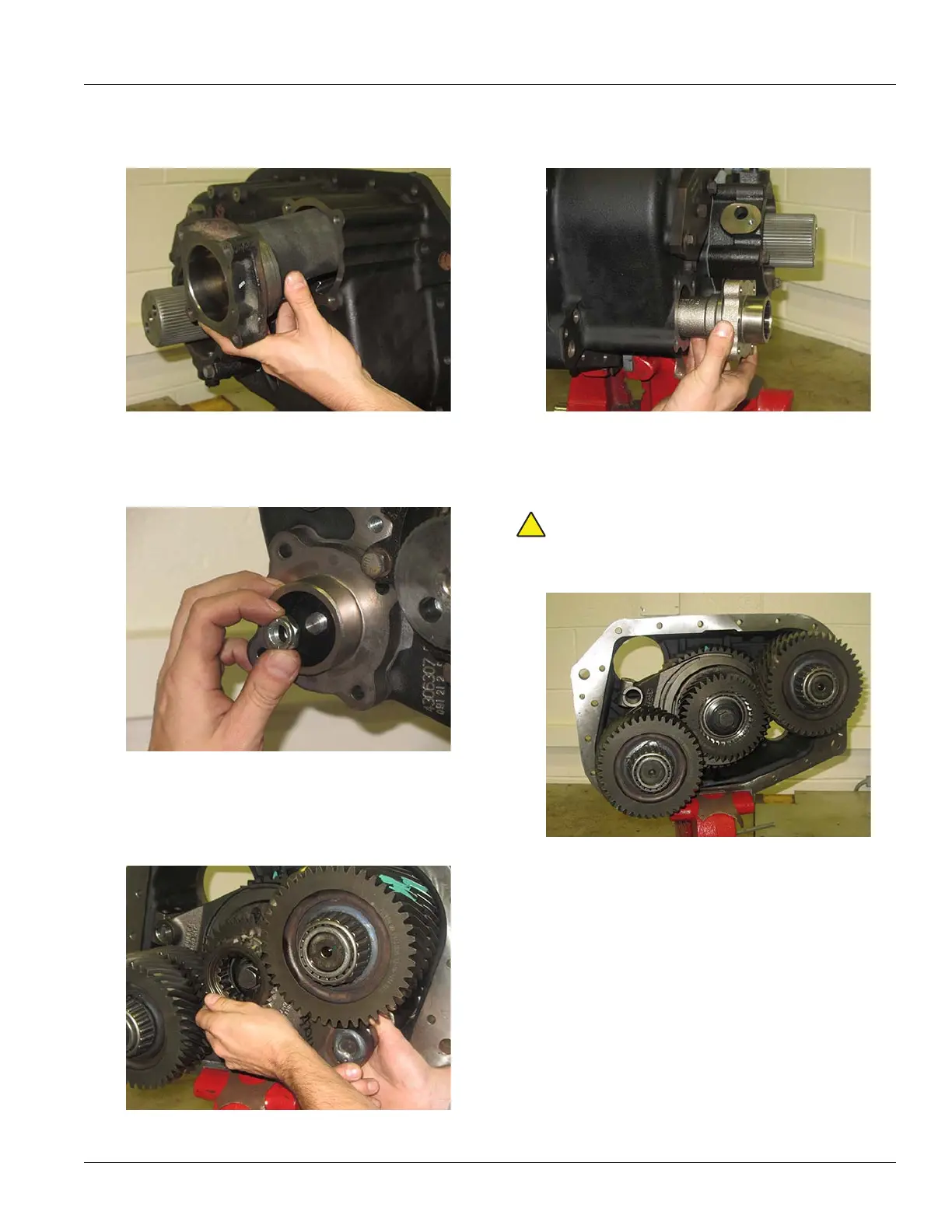

5. Remove the Range Cylinder assembly.
6. Remove the
3/4” Lock Nut on the Splitter Yoke Bar.
7. Remove the
Splitter Sliding Clutch and Splitter Yoke
bar and fork.
8. Remove the Splitter
Cylinder Assembly
9. Prepare
the Auxiliary Section to remove the Auxiliary
Counter Shafts. For ease of disassembly, mount the
Auxiliary Section upright in a vise.
Caution: As the counter shaft straps are remove, the
Counter Shaft can fall.
!
To Next Page
