MHP/MXP/VHP/VXP Auxiliary Section Removal and Disassembly | Service Procedures TRSM0940

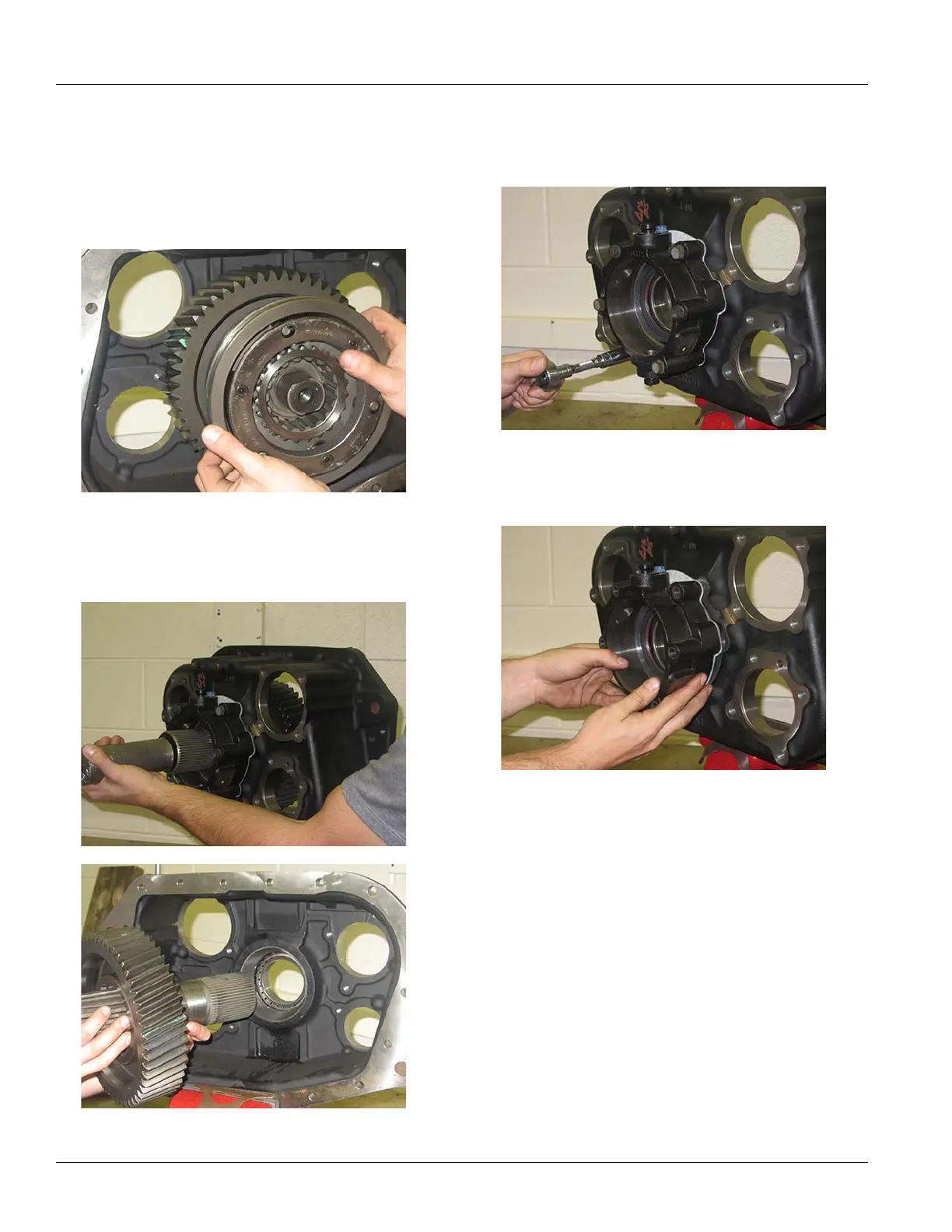

18. Remove the Range Synchronizer Assembly from the
Output Shaft
Note: For disassembly
and assembly of the Syn-
crhonizer, please refer to the “How to disassemble the
Sychroniz
er Assembly” section.
19. Using a
soft bar and maul, drive the Output Shaft for-
ward and through the Rear Bearing Assembly.
20. Remove the
six cap screws that fasten the Output Shaft
bearing cover to the Auxiliary Section.
21. Remove the Output Shaft bearing cover.
22. Inspect the Rear Bearing Cover oil seal
for damage.
Remove if damage is found.
