EBS-6100 Printer User's Manual
Paragraph 6 - SERVICE and maintenance
EBS
Ink-Jet Systems
®
112
20070529#20.5
These components
must not be
replaced with
others as such
a replacement may
cause the lack of
tightness!!!
This sleeve must be replaced
with a new one each time the
ink filter is changed !!!
IN
OUT
Ink level
R3
Main ink filter

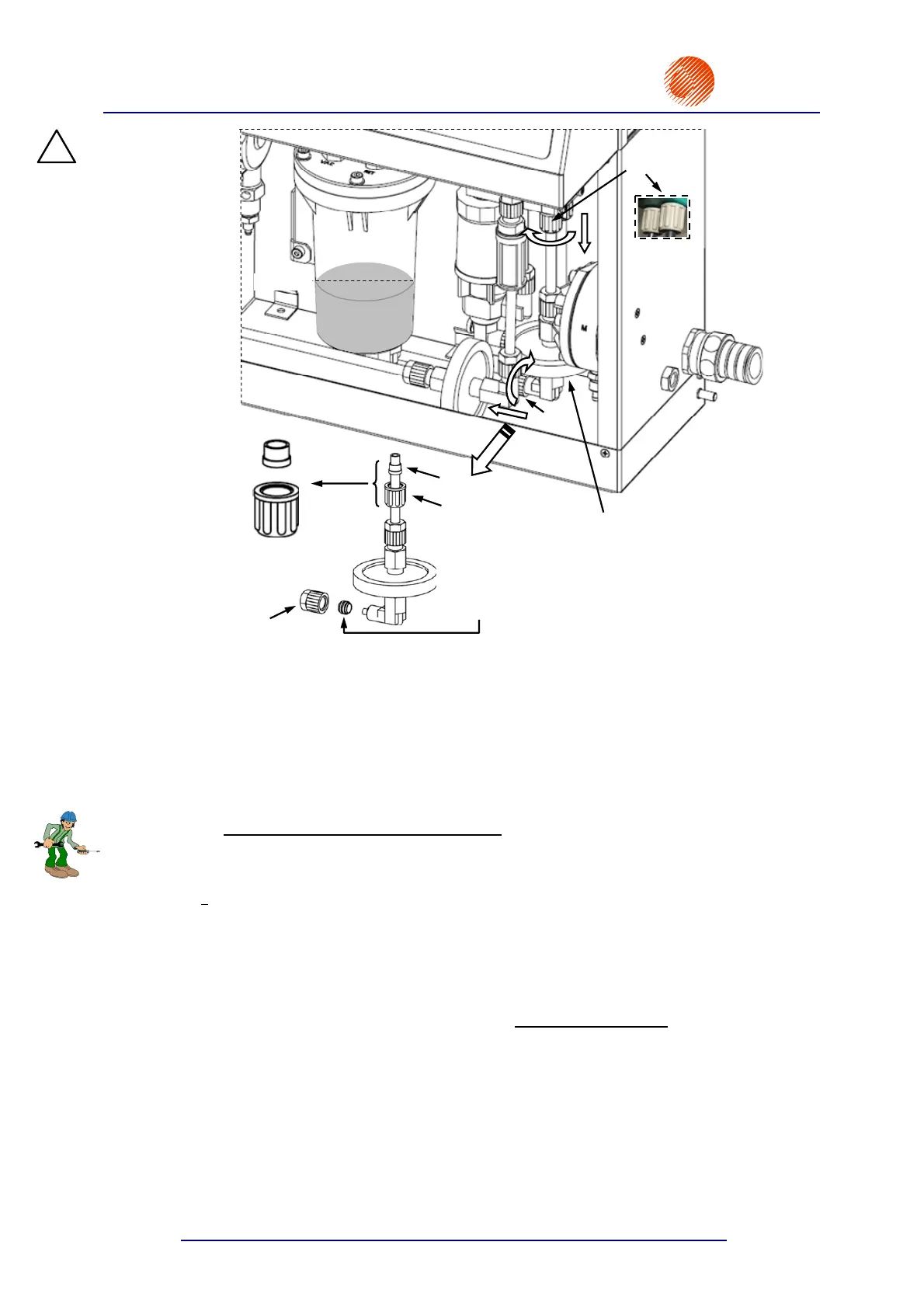

Fig. 6.3.5.1. Replacing the main ink filter
Contaminations may get into the printer’s ink system during replacement of the main ink filter.
Therefore it is recommended that the filter replacement be followed by a slightly shorter,
about 10-minute ink filtering procedure similar to that described before.
Replacing Ink Filter Inside the Gun
Replace (clean out) the ink filter inside the head gun by following the steps below:
• wait until impurities deposit on the filter
and select the V0 OFF command (or press
the INK ON/OFF key on the external panel) in order to stop the flow of ink to the
head; the V0 lamp on the internal panel goes out,
• wash the nozzle with solvent,
•
use a size 4 open ended spanner to unscrew sleeve , which is used to hold down
the tube that supplies ink to the gun. Use size 8 open ended spanner to hold up the
filter fitting, if need be,
• pull out the unscrewed pipe and the fixing sleeve
,
• using an open ended spanner size 8 unscrew the filter fitting for gun
, remove the
filter fitting from the gun and wash with solvent,
• remove the ink filter
, insert a new one in the proper direction or wash the existing
filter thoroughly if possible,
• assemble the above-mentioned parts in the reverse order,
• select the V0 ON command (or press the INK ON/OFF key on the external panel) in
order to let the ink flow to the head (the lamp V0 on the internal panel comes on).
NOTE: Each time the gun filter is replaced the nozzle clogs up. Remember to clean the
nozzle afterwards – see subsection 6.3.3 Clogged nozzle - cleaning the nozzle.
!
