EBS EBS-6100 - The Maximum Print Rate Vs. Resolution Settings

 EBS-6100 Printer User's Manual
 Paragraph 4 - Operating the Printer
EBS
Ink-Jet Systems
®
 94
20070529#20.5
I
J
A4
A5
a a±
∆a
b b± ∆b

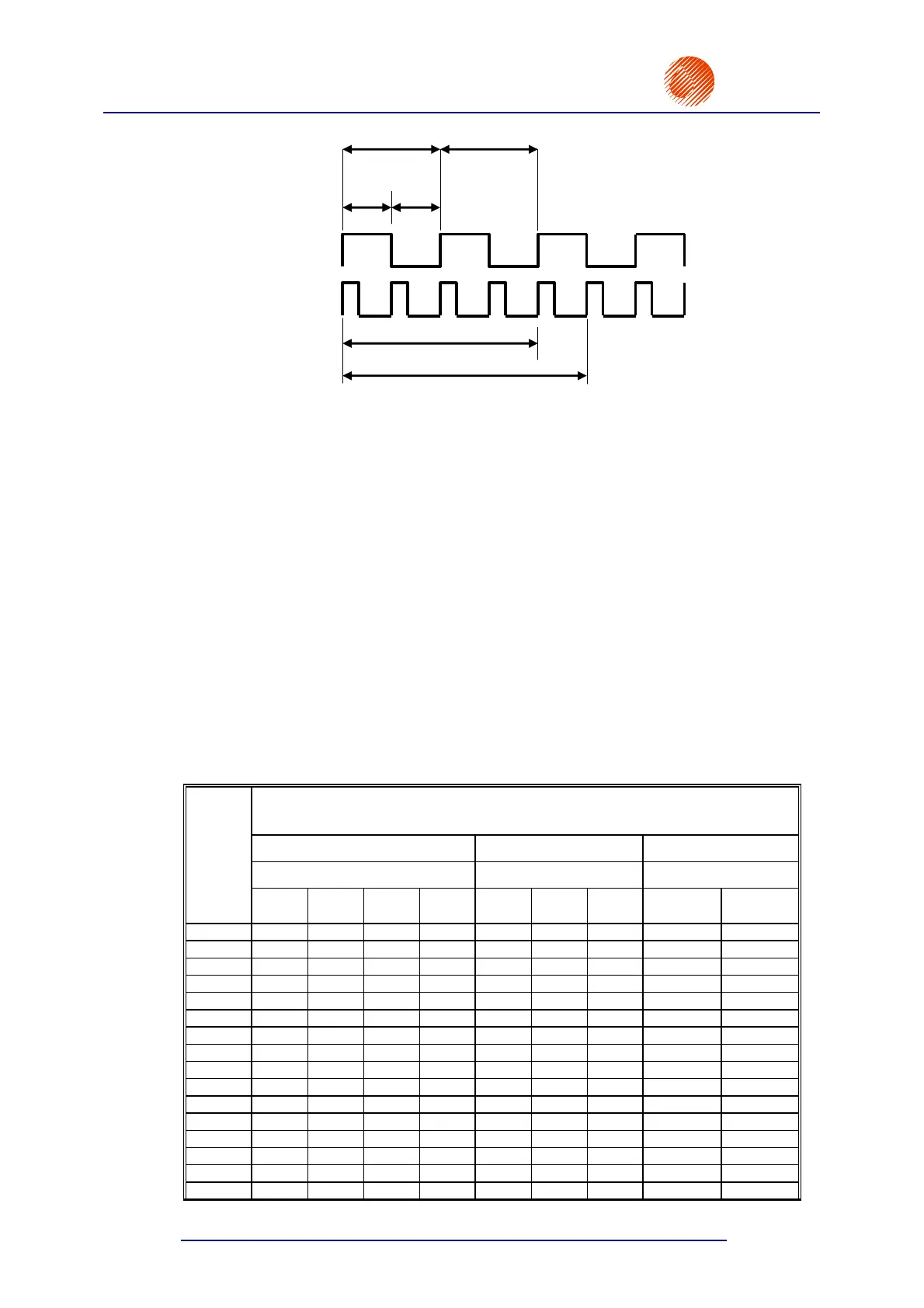

Fig. 4.6.5.1.
Thus, if D=4 (see point 1 above) measured distance A4 (see Fig. 4.6.5.1) can be biased
with error ∆a, and for D=5, measured distance A5 can be biased with error ∆a+∆b.
The maximum percentage error described in this section is U
r
=((∆a+∆b)/a)*100%.
The maximum error which may occur under such conditions provided that the above errors
are not significant, can be expressed approximately as:
U=U
s
+U
t
+U
p
+U
r
In the most adverse case, we can obtain the maximum rate that is by U% smaller than the
theoretical value. The values of the above errors depend on specific installation and can vary
extremely for various applications. Therefore every case needs to be considered on an
individual basis. For more information on the above you can contact an experienced
serviceperson.
4.6.6. The Maximum Print Rate vs. Resolution Settings
The table below shows the maximum print rate vs. the settings of the Resol. dot/cm print
parameter for various print rates (set with the Speed print parameter) and various print
heights (7, 16, 25, 32 dots).
Maximum Print Rate [m/min]
Speed=SLOW MIDDLE FAST
Print Height [dots] Print Height [dots] Print Height [dots]
The
Resol. dot/cm
parameter
32 25 16 7 25 16 7 16 7
9
42 55 65 148 55 130 297 245 595
10
37 50 58 133 50 117 267 220 535
11
34 45 53 121 45 106 243 200 487
12
31 41 48 111 41 97 223 183 446
13
29 38 45 103 38 90 206 169 412
14
27 35 41 95 35 83 191 157 382
15
25 33 39 89 33 78 178 147 357
16
23 31 36 83 31 73 167 137 334
17
22 29 34 78 29 68 157 129 315
18
21 27 32 74 27 65 148 122 297
19
19 26 30 70 26 61 140 116 281
20
18 25 29 66 25 58 133 110 267
21
18 23 27 63 23 55 127 105 255
22
17 22 26 60 22 53 121 100 243
23
16 21 25 58 21 50 116 95 232
24
15 20 24 55 20 48 111 91 223
