 EBS-6100 Printer User's Manual
 Paragraph 4 - Operating the Printe
r
20070529#20.5
 95

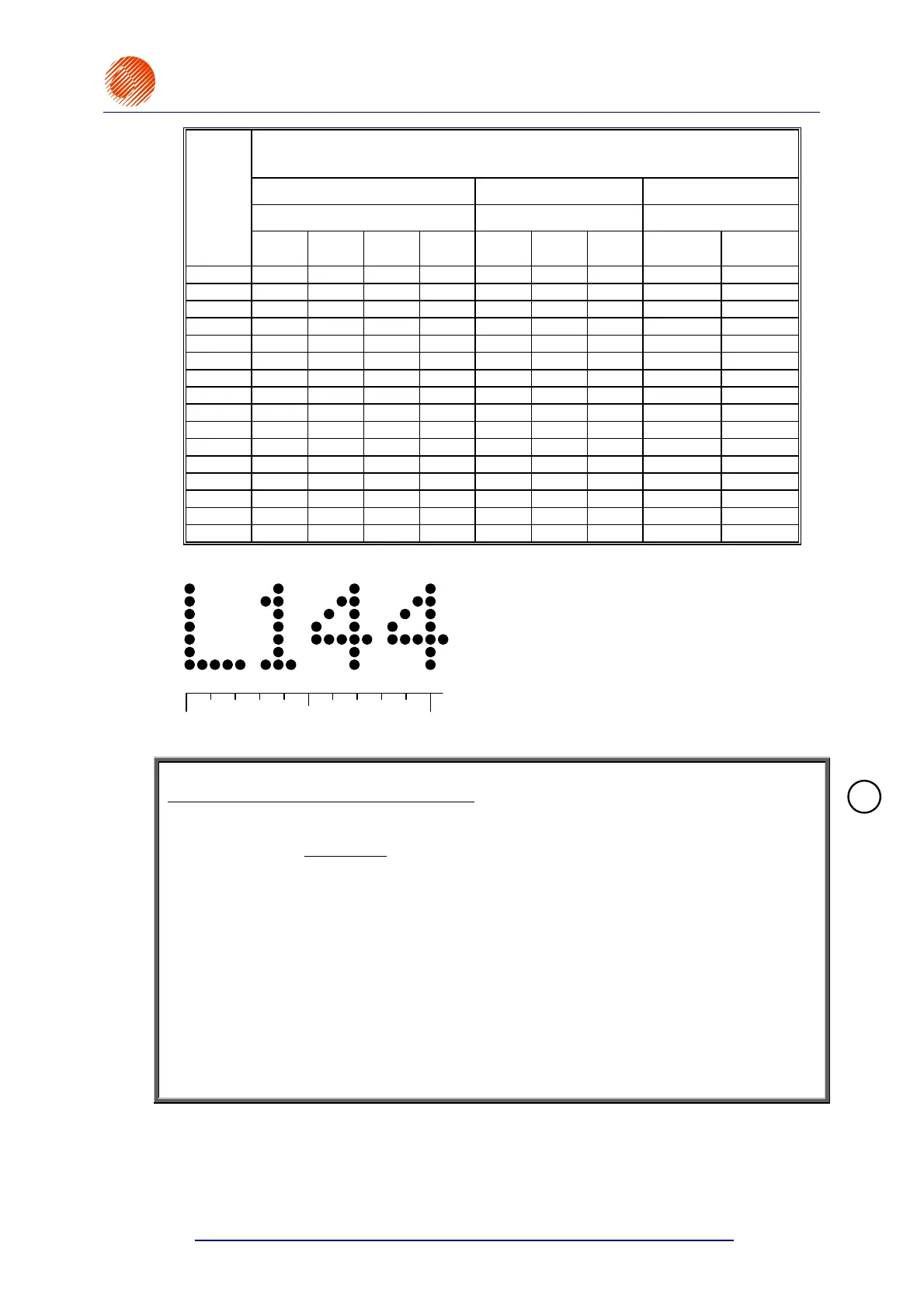

Maximum Print Rate [m/min]
Speed=SLOW MIDDLE FAST
Print Height [dots] Print Height [dots] Print Height [dots]
The
Resol. dot/cm
parameter
32 25 16 7 25 16 7 16 7
25
15 20 23 53 20 46 107 88 214
26
14 19 22 51 19 45 103 84 206
27
14 18 21 49 18 43 99 81 198
28
13 17 20 47 17 41 95 78 191
29
13 17 19 46 17 40 92 76 184
30
12 16 18 44 16 39 89 73 178
31
12 16 18 43 16 37 86 71 172
32
11 15 17 41 15 36 83 68 167
33
11 15 17 40 15 35 81 66 162
34
11 14 16 39 14 34 78 64 157
35
10 14 16 38 14 33 76 63 153
36
10 13 15 37 13 32 74 61 148
37
10 13 15 36 13 31 72 59 144
38
9 13 15 35 13 30 70 58 140
39
9 12 14 34 12 30 68 56 137
40
9 12 14 33 12 29 66 55 133
A sample print for Distance=1
0
1cm
12345678910 11 12 13 14 15 16 17 18 19 20 21
Resol. dot/cm=20
NOTE:
If the conveyor travel speed is constant
, the Speed print parameter is set and the
Cnv spd m/min print parameter is adjusted to the conveyor travel speed, bear in mind the
following hints:
• In order to get proportional
characters (i.e. of the same amounts of dots in the vertical
and horizontal directions), you can use only two parameters: the print height (number of
units of length, e.g. millimetres) and the horizontal resolution (the Resol. dot/cm print
parameter).
• The print height can be changed by changing the distance between the product to be
labelled and the head and/or the setting of the Height print parameter and/or
(exceptionally) high voltage.
• Please note that there is a difference between the print height measured in units of length
(e.g. mm) and the print height given as a number of dots. If the print height is defined by
a number of dots, we take into consideration character matrices, a layout of subtexts
within the print, dot-route corrections and the related constrains. If the print height is
given in length units, we mainly think of the appearance of an overprint.
• If the print height changes, the vertical resolution changes and in order to get proportional
characters, you need to modify the Resol. dot/cm or Cnv spd m/min print parameter.
4.7. Synchronizing Print Heads
The EBS-6100 printer has only one head, so no synchronisation is required.
!
