Eckold KF 170 PD - Mechanics and Operation Parameters

9
Kraftformer KF 170 PD
2018-05-09 | ECKOLD AG
Technical data
232 mm
560 mm
600 mm
241
140
186
4 x d11
146 mm
(22.047 inch)
(9.134 inch)
(23.622 inch)
(5.748 inch)
170
(6.693 inch)
105 - 97 mm
(19.882 inch)
790 mm
1545 mm
1060 mm
505 mm
(31.10 inch)
(60.827 inch)
(41.732 inch)
(4.134 - 3.819 inch)

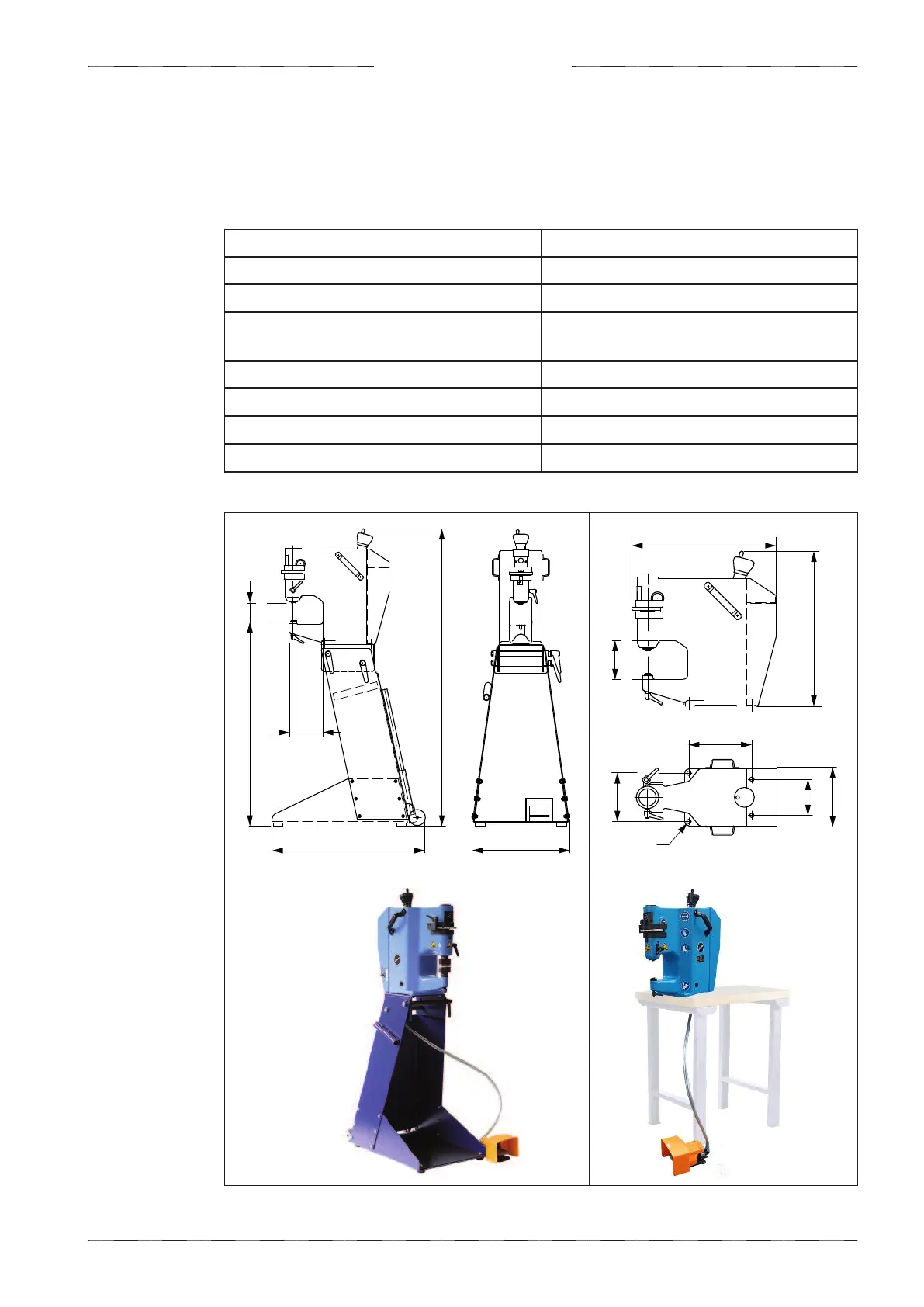

2.5 Mechanics
2.5.1 Dimensions and weight
Length 790 mm
Width 505 mm
Height 1545 mm
Throat, horizontal
(to the front edge of tool holder)
170 mm
Throat, vertical 146 mm
Working height with standard tools FWA/FWR ~ 1100 - 1150 mm
Weight (without stand) ca. 93 kg
Weight (with stand) ca. 151 kg
• with stand
• without stand
