Eckold KF 170 PD - Covering Parts

Kraftformer KF 170 PD
2018-05-09 | ECKOLD AG MEL-8
Machine Spare Parts List (MEL)

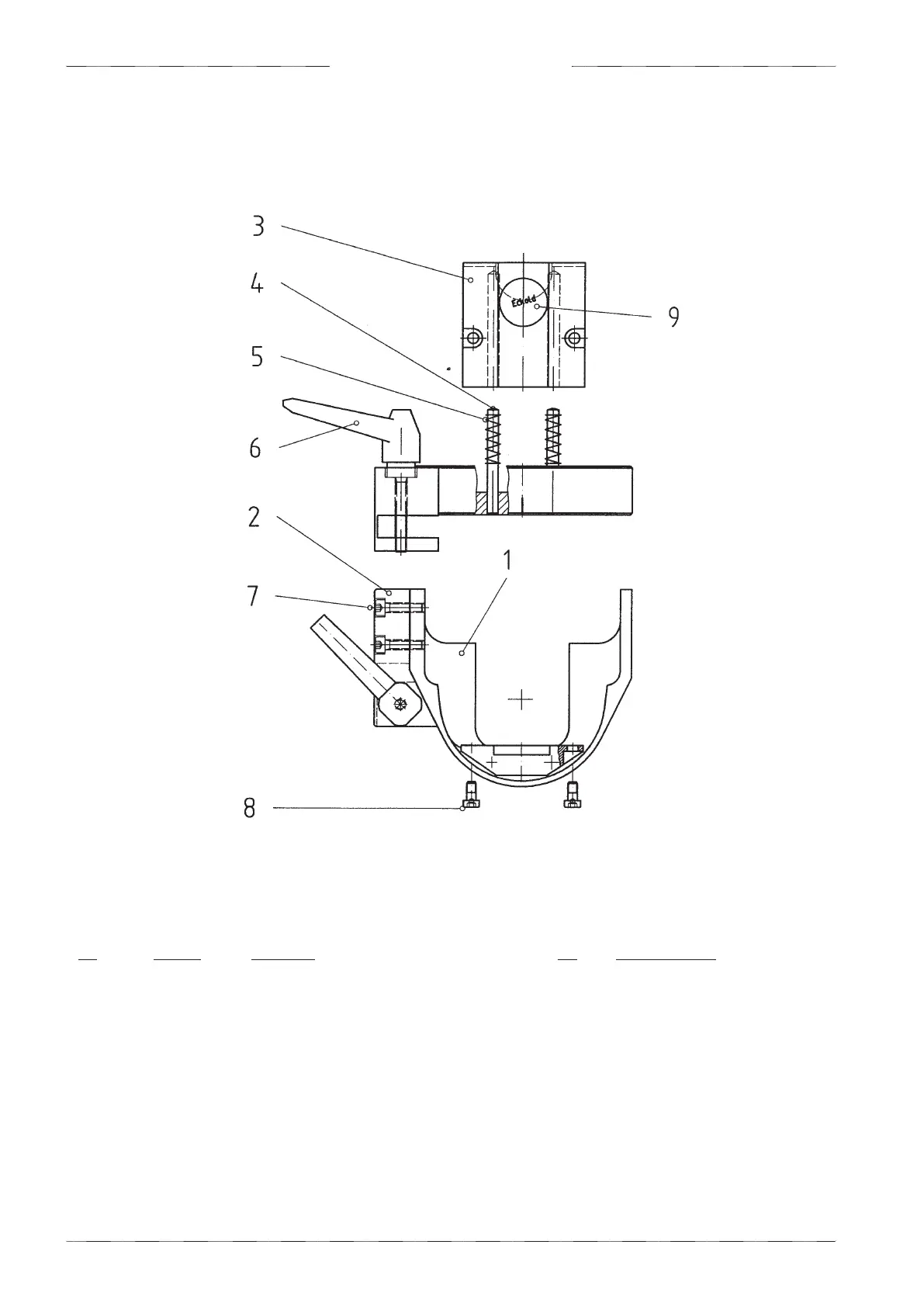

11.3.5 Covering 023.125.0015
Pos Item No. Designation Qty Type / Dimensions
023.125.0015 Covering
1 023.910.0283 Covering 1
2 023.910.0284 Clamping piece 1
3 023.910.0229 Covering 1
4 255.002.0916 Straight pin 2 DIN 6325 6 m6 x 55
5 266.011.0470 Pressure spring 2 DIN 2098 0.63 x Dm5.0 x 38.5
6 260.009.0062 Clamping leves with threaded bolt 1 MR.63 p-M 6 x 40
7 252.020.0106 Cap screw 2 DIN 6912 M 5 x 20
8 252.020.0101 Cap screw 2 DIN 7984 M 5 x 10
