Kraftformer KF 170 PD
2018-05-09 | ECKOLD AG

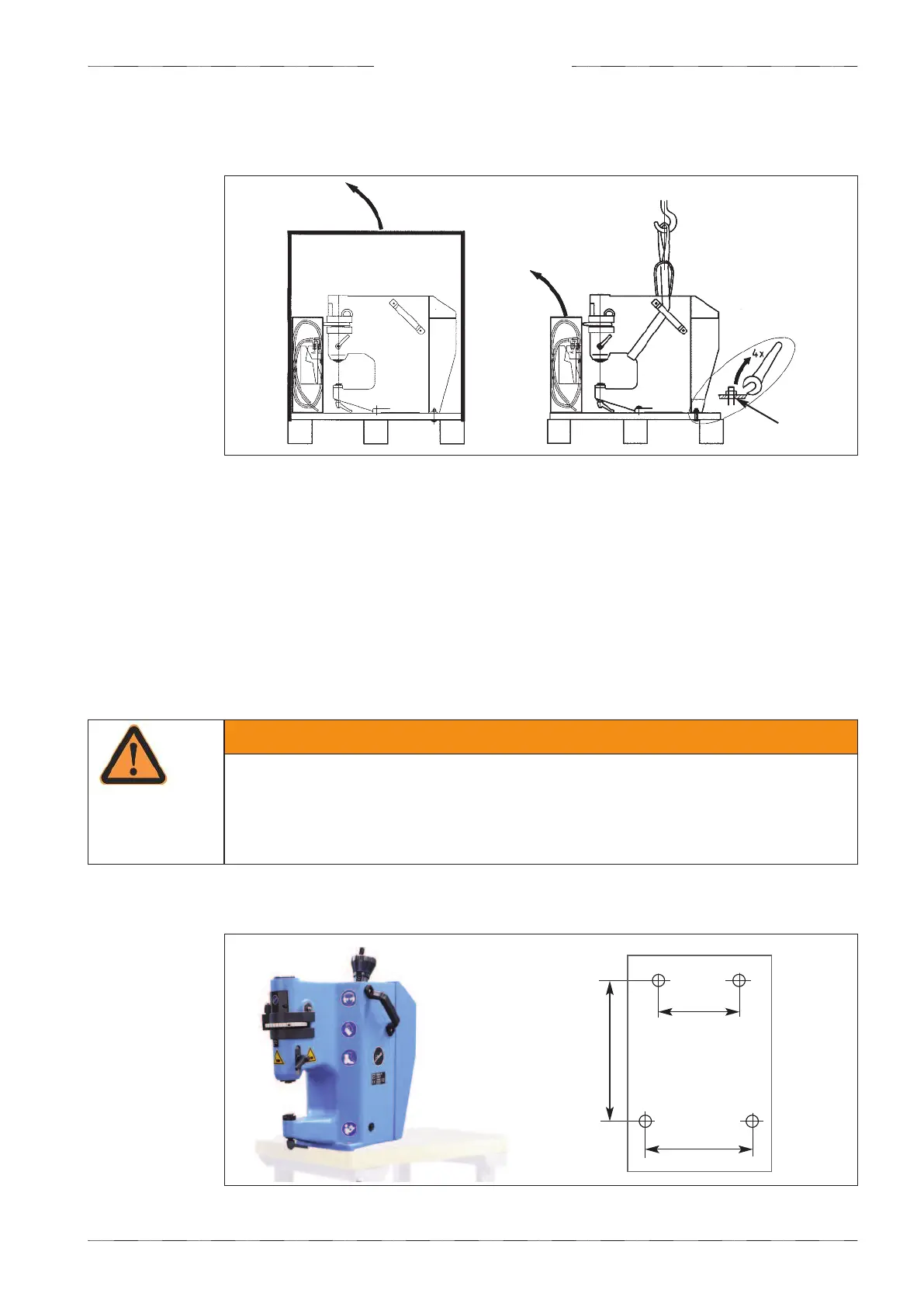

4.8.1 Unpacking / Setup of the machine (Apparatus head)
1
2
Consider the machine
weight of
approx. 93 kg before
attempting to lift it.
Pic. 4.8.1 - Unpacking / Setup of the machine (Apparatus head)
1. Remove band and pins at the bottom edge of the box. Remove the cover and cardboard
sleeve.
2. Take off the securing screws before lifting the machine.
Make sure that the product does not turn when it is lifted!
Only use a crane with a rotating crane hook.
Apparatus heads have to be securely fastened to a sturdy workbench by means of screws.
WARNING
— Danger of Tilting ! If it is not securely fastened to the workbench it can tilt
and fall over during operation.
—> Risk of injury to personnel and damage to the product
• Apparatus heads securely on a stable workbench fix
4.8.2 Fastening of Apparatus head
Pic. 4.8.1 - Fastening of Apparatus head
186 mm
140 mm
241 mm
Transport / Set up
