Eckold KF 170 PD - Pedestal Parts

Kraftformer KF 170 PD
2018-05-09 | ECKOLD AG MEL-20
Machine Spare Parts List (MEL)

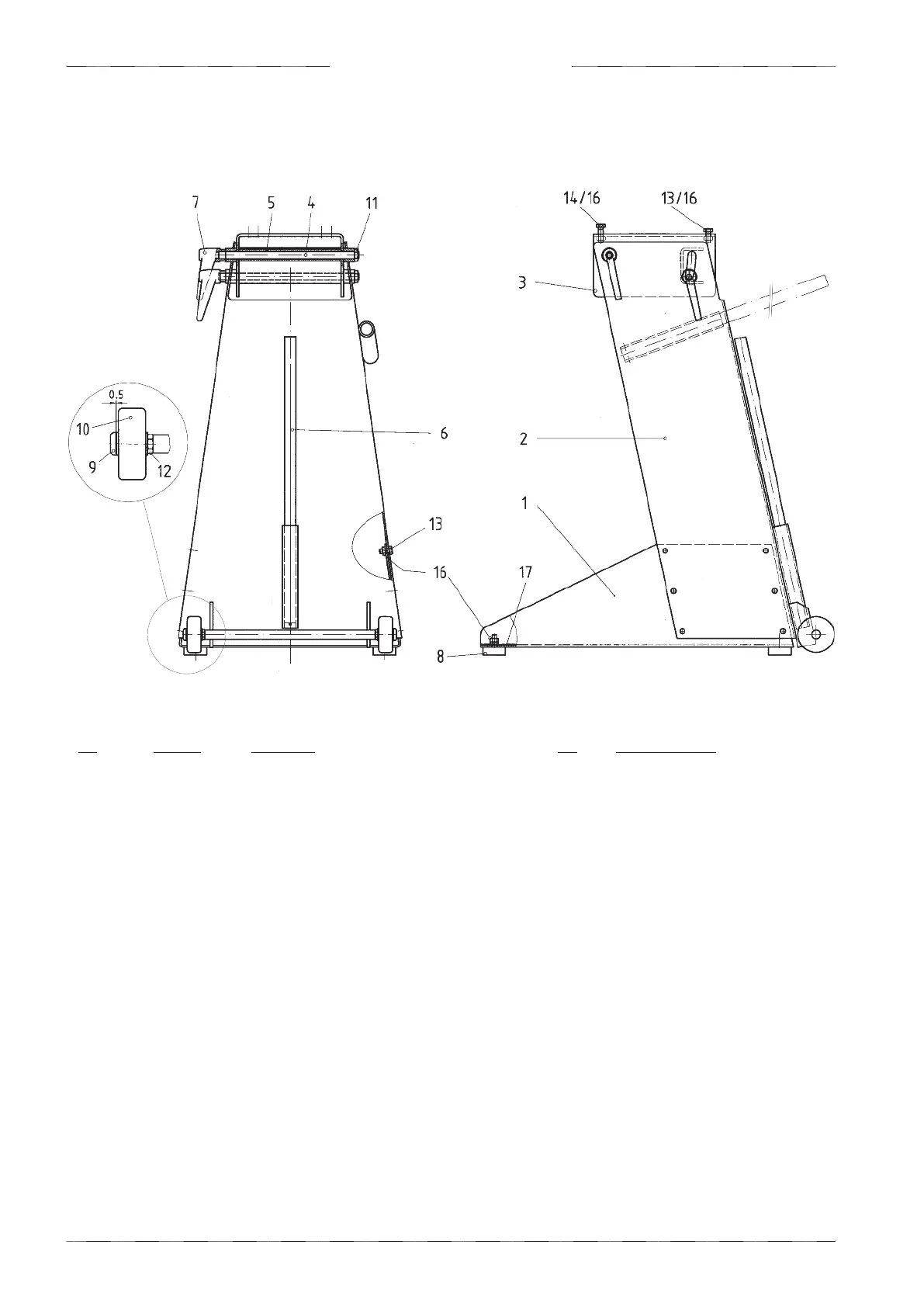

11.9 Pedestal 023.127.0000
Pos Item No. Designation Qty Type / Dimensions
023.127.0000 Pedestal
1 023.127.0005 Cover 1
2 023.127.0004 Cover 1
3 023.910.0294 Edging sheet metal 1
4 023.910.0250 Threaded rod 2
5 023.910.0295 Distance sleeve 1
6 023.910.0253 Tube 1
7 260.009.0568 Clamping lever with bushing 2 MR. 100 A - M 16
8 266.800.0510 Stop buffer 4 50 / 17 mm - M 10
9 252.060.0610 Cap screw 2 ISO 7380 M 12 x 60
10 262.750.0010 Steel disc 2 08 R. 080 C. 12
11 257.000.0180 Hexagon nut 2 DIN 439 B 0.5d M 16
12 257.000.0160 Hexagon nut 2 DIN 439 B 0.5d M 12
13 253.003.0605 Hexagon screw 14 DIN 931 M 10 x 20
14 253.003.0609 Hexagon screw 2 DIN 931 M 10 x 35
16 257.110.0180 Hexagon nut 20 DIN 934 M 10
17 023.910.0306 Rubber mat 1
252.102.0065 Fork wrench SW 24 1 DIN 894
