Eckold KF 170 PD - Tool Holder Parts

MEL-9
Kraftformer KF 170 PD
2018-05-09 | ECKOLD AG
Machine Spare Parts List (MEL)
11.3.6 Tool holder 021.300.1005

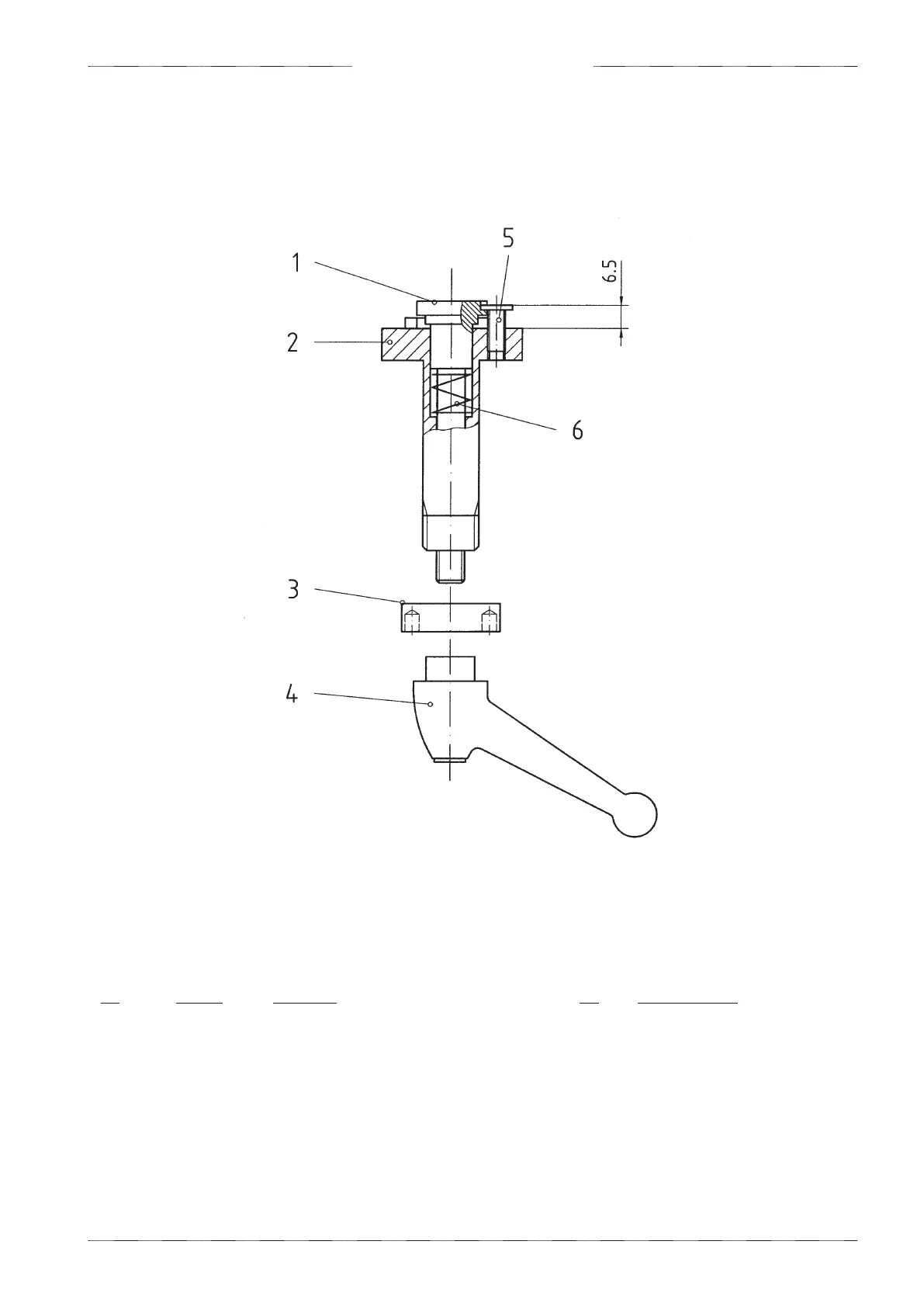

Pos Item No. Designation Qty Type / Dimensions
021.300.1005 Tool holder
1 020.910.0011 Pulling rod 1
2 021.400.1009 Tool holder 1
3 020.910.0018 Nut 1
4 260.002.0103 Clamping lever 1 J 2 M 8
5 252.140.0102 Cap screw 1 M 5 x12
6 266.000.0320 Pressure spring 1 DIN 2095 0.63 x Da 11.6 x 26
