5.5 Indicators and Controls

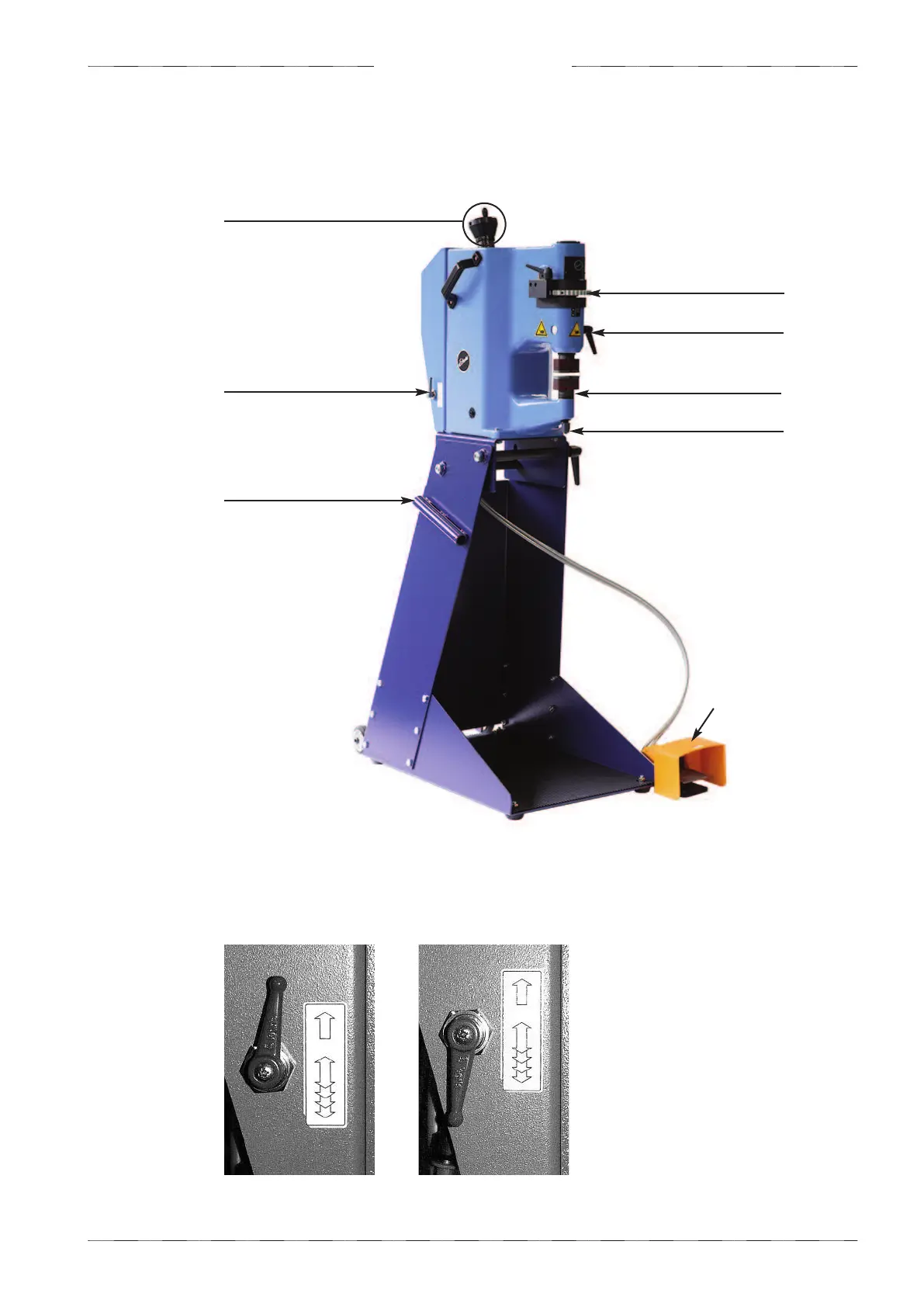

5.5.1 Lever for single- or continuous stroke
Single stroke
position
Continuous stroke
position
By turning the lever in the respective direc-
tion the KF 170 PD machine can be swit-
ched either to the single stroke or to the
continuous stroke mode.
Construction and Operation
Ram position adjustment
Foot switch
Tool holder
Tool locking
Tool locking
lever for :
single- or continuous stroke
Stroke length control
Hand lever
