The handwheel has to be turned anti-clockwise to lower the ram position (1).
The handwheel has to be turned clockwise to lift the ram position (2).
First loosen the clamping lever (A). After adjustment lock the clamping lever.
7.6 Adjustment of ram
!
2
97 - 105 mm
1
A

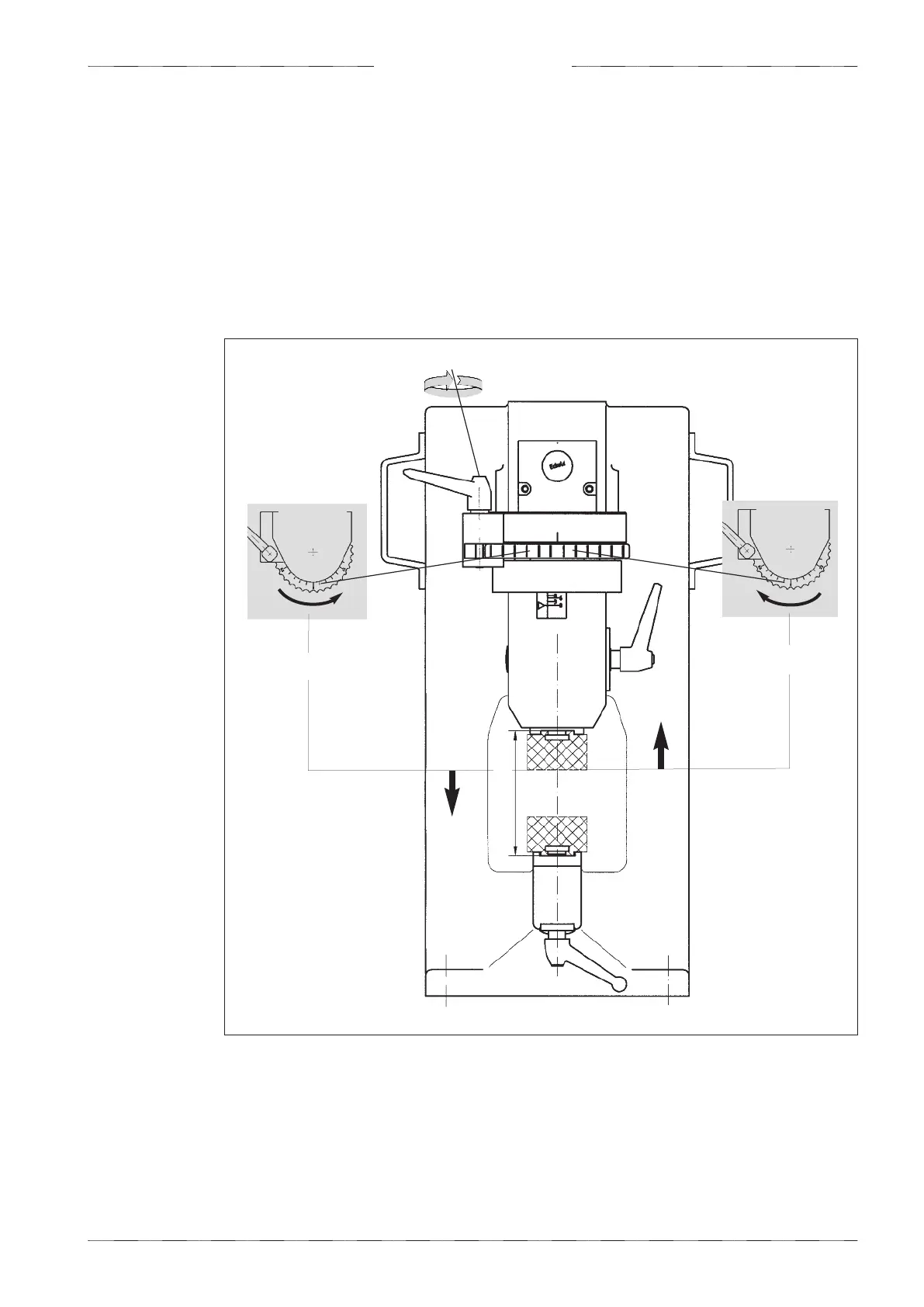

Pic. 7.6 - Adjustment of ram
