Eckold KF 170 PD - Ram Parts

MEL-5
Kraftformer KF 170 PD
2018-05-09 | ECKOLD AG
Machine Spare Parts List (MEL)

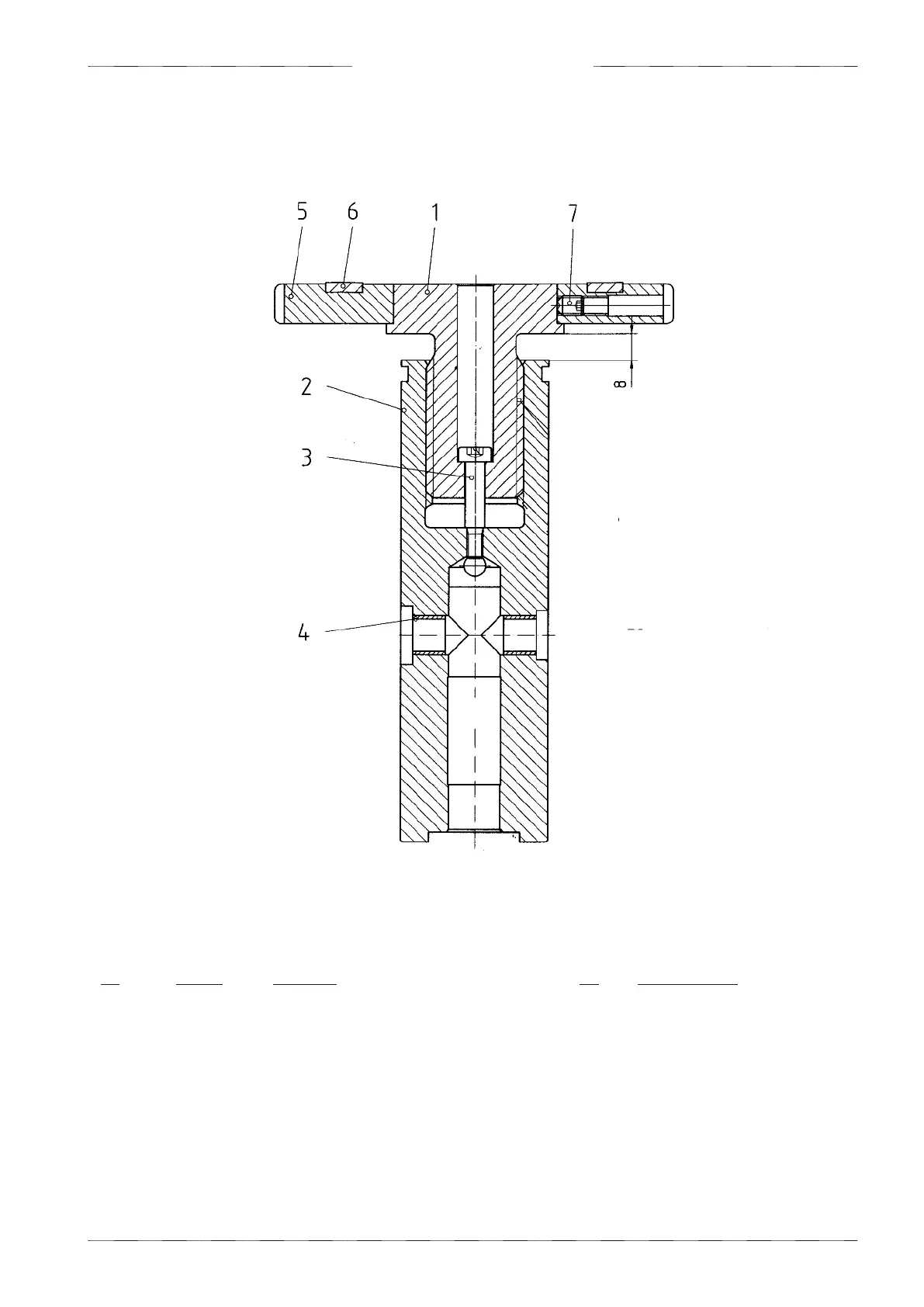

11.3.2 Ram 023.125.0013
Pos Item No. Designation Qty Type / Dimensions
023.125.0013 Ram
1 023.910.0312 Spindle 1
2 023.910.0313 Ram 1
3 252.180.0003 Dowel screw black steel 1 ISO 7379 6 / M 5 x 20
4 261.004.0024 Bush, maintenance-free 2 d 10 x d 12 x 10
5 023.910.0314 Set collar 1
6 023.910.0226 Dinstance ring 1
7 256.021.1002 Setscrew black 2 DIN 913 M 6 x 8
