Eckold KF 170 PD - Pneumatic Control Set

MEL-15
Kraftformer KF 170 PD
2018-05-09 | ECKOLD AG
Machine Spare Parts List (MEL)

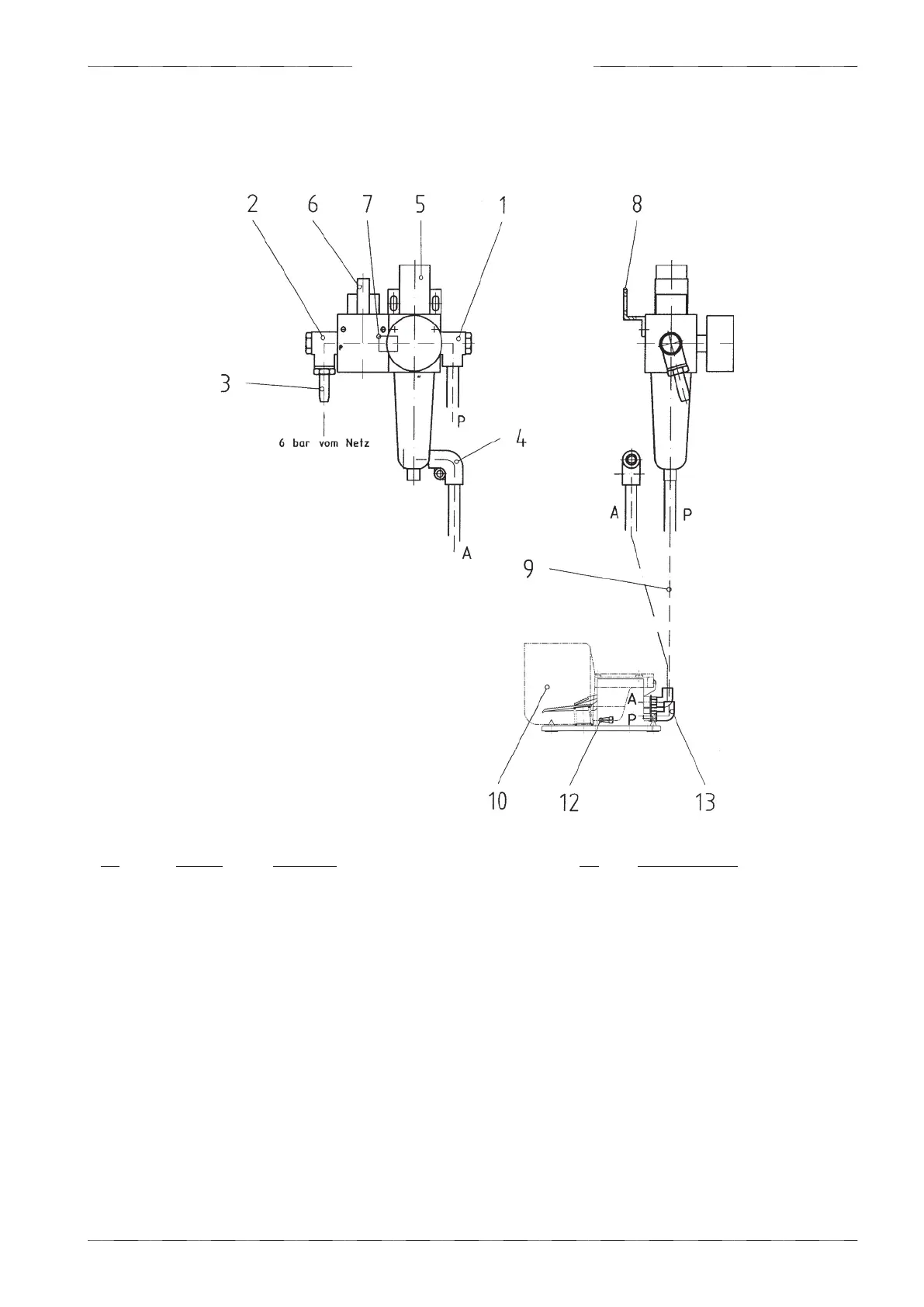

11.6.1 Pneumatic control set 023.125.0018
Pos Item No. Designation Qty Type / Dimensions
023.125.0018 Pneumatic control set
1 277.000.1010 L - type plug connection 1 QSLV 1/4 - 10
2 277.000.1102 L - type plug connection 1 LJK - 1/4
3 277.000.1204 Tail end with joint ring 1 N - 1/4 - P - 9
4 277.000.1306 Angle plug connection 1 QSL - 10
5 277.003.1006 Pressure regulator with filter 1 NL2-G1/4" 0 821 300 300
6 277.003.1502 3/2 - stop cock 1 NL2-G1/4" 0 821 300 901
7 277.003.1550 Connection set 1 NL2 1 827 009 359
8 277.003.1800 Fixation angle - Set 1 NL2 1 821 336 006
9 023.910.0287 Hose pipe 1
10 277.003.0515 Pneumatic foot pedal 1 AM-5000 3/2 NC G1/4"
12 277.003.0404 Muffler 1 G1/4 1 827 000 001
13 277.000.0910 L - type plug connection 2 QSLL - 1/4 - 10
