Eckold KF 170 PD - Apparatus Head KF 170 PD Parts

Kraftformer KF 170 PD
2018-05-09 | ECKOLD AG MEL-2
Machine Spare Parts List (MEL)

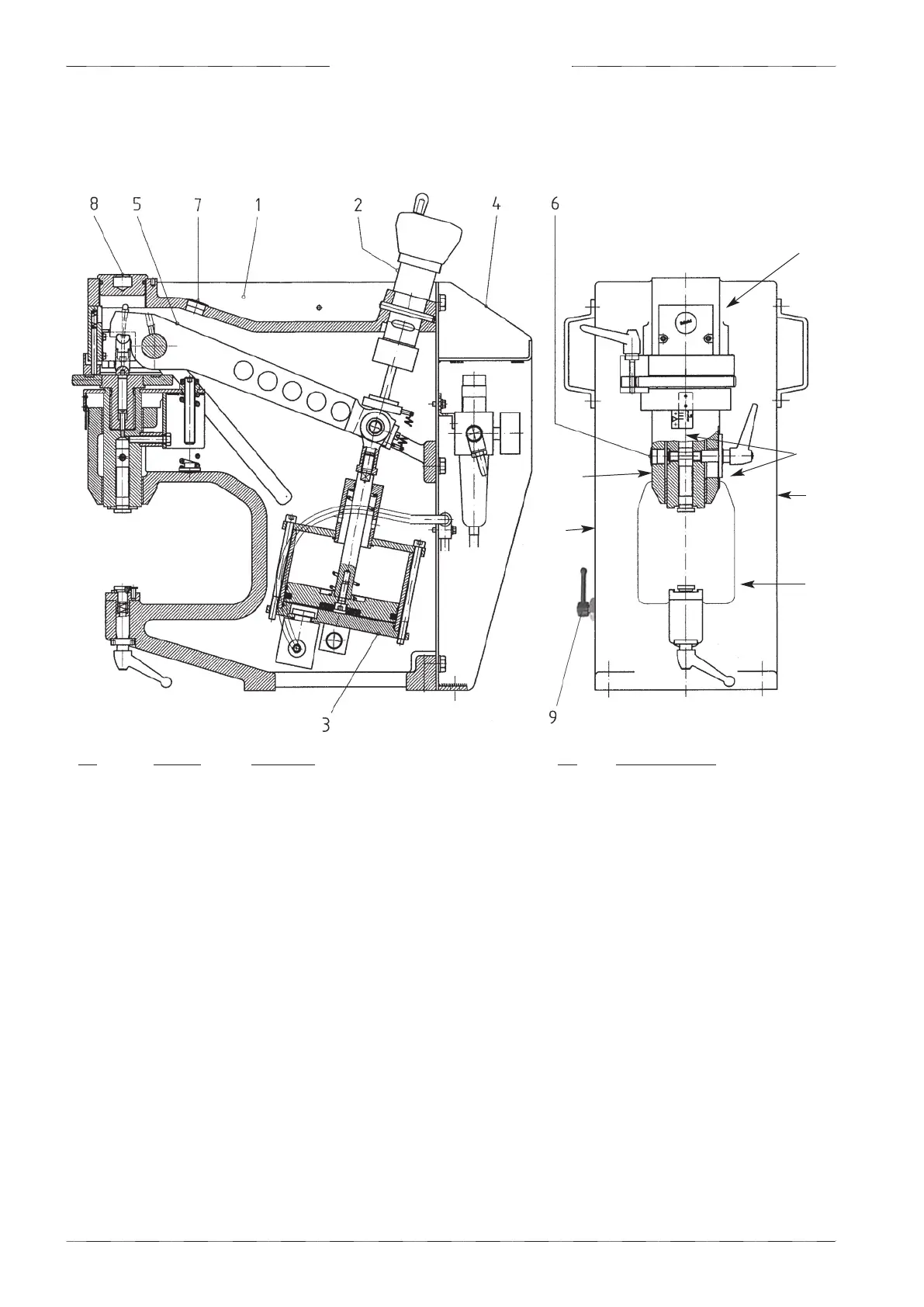

11.2 Apparatus head KF 170 PD 021.200.2500
10
11
14
15
16
12
13
11
13
Pos Item No. Designation Qty Type / Dimensions
021.200.2500 Apparatus head KF 170 PD
1 021.300.1002 Housing 1
2 021.300.1000 Stroke adjustment 1
3 023.125.0001 Pneumatic cylinder 1
4 023.125.0017 Covering 1
5 023.125.0019 Pressure lever 1
6 271.450.0010 Covering 1 PG 11
7 271.450.0020 Covering 1 PG 16
8 023.125.0032 Covering 1
9 021.300.2029 Continuous stroke module 1
10 268.170.0023 Type plate 1
11 268.100.0025 ECKOLD Logo 2
12 268.100.0080 Mandatory sign ”Read the instructions before” 1
13 268.130.0100 Warning sign ”keep hands clear” 3
14 268.100.0070 Mandatory sign ”Use protective gloves" 1
15 268.100.0096 Mandatory sign "Use protective boots" 1
16 268.100.0095 Mandatory sign "Use eye and hearing protection" 1
252.100.0002 Hexagon key 1 DIN 911, SW 5
023.125.0036 Push Grease Gun 1
252.102.0050 Fork wrench SW 17 1 DIN 894
