Kraftformer KF 170 PD
2018-05-09 | ECKOLD AG
2nd step
• Turn the handhweel anticlockwise by approx. three marks on the ring (lowering the
ram slightly).
• Insert your material and release a stroke.
• A deeper forming of the point develops.
Next steps
• Turn the handwheel further anticlockwise step by step to lower the ram even further.
• Repeat this procedure until you reach the correct form of the joining point.
• Control the joint as described in your pressjoining manual.

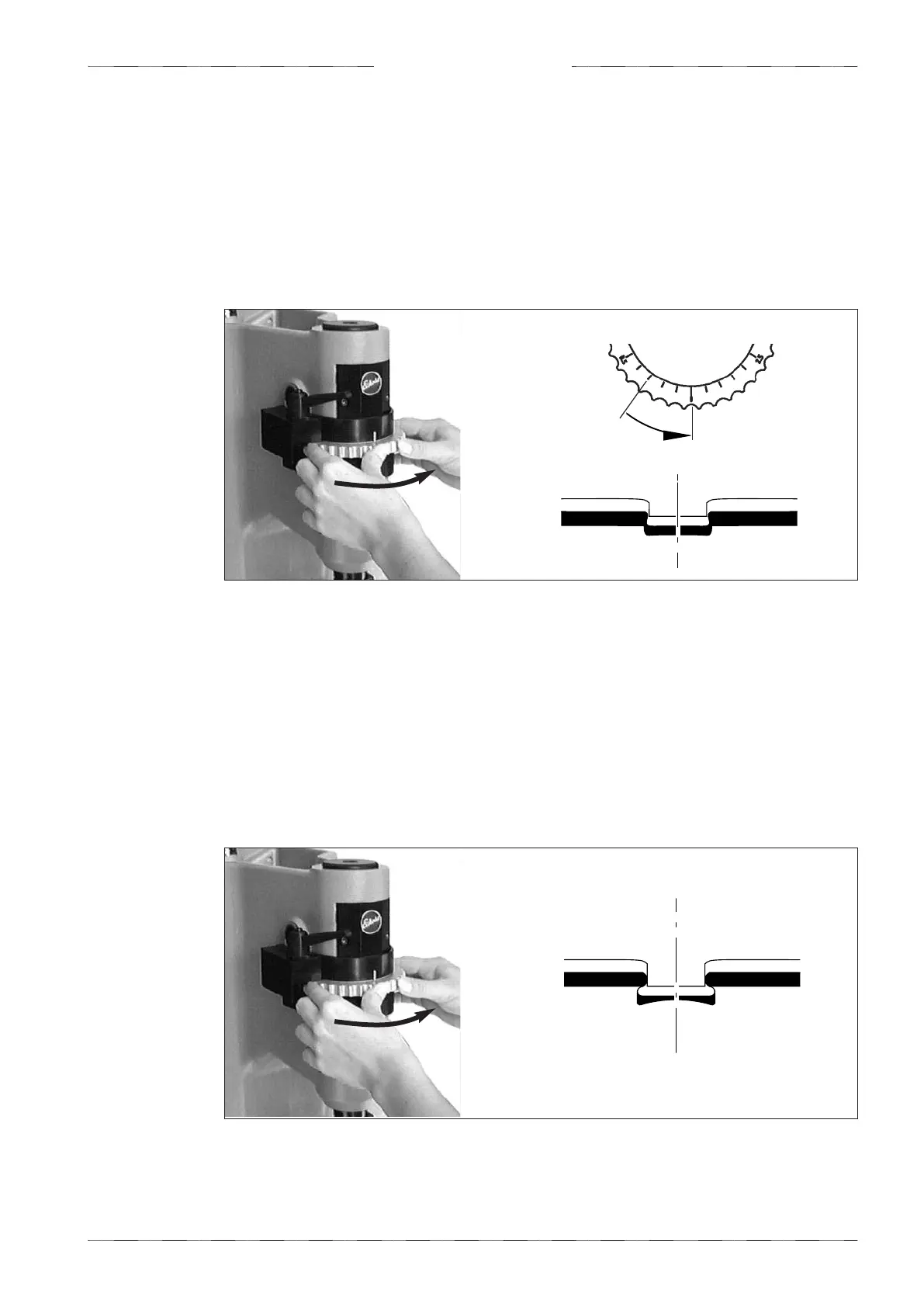

Pic. 7.8 b - Setting of ram position for the clinching - 2nd step
Pic. 7.8 c - Setting of ram position for the clinching - Next steps
