Edimax Pr
o NMS
129
IV
-4-5-
2.

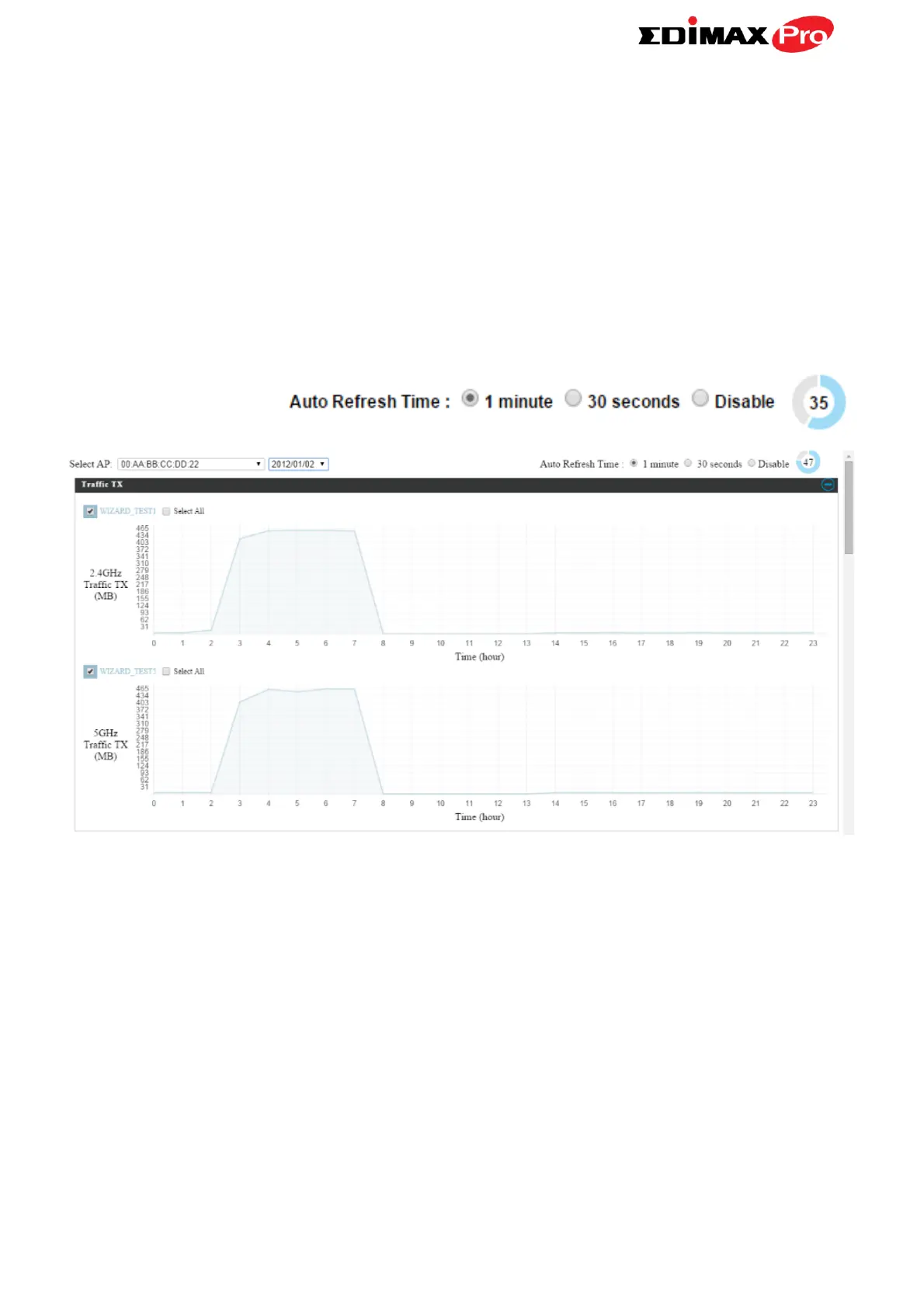

Monitoring
Displ
ays graphical
m
onit
oring inf
ormation
about
access po
ints in the
Array fo
r
2.4GHz & 5G
H
z:
Traff
ic Tx (d
ata
tra
nsmitted
in
MB), Traffi
c Rx (data recei
ved
in M
B),
No
. of Clien
ts, Wireless
Chan
nel, Tx Power (
wireless ra
dio po
wer), CPU
Usage a
nd Memory Usa
ge.
