IV-4. NMS MONITOR
IV-4-1. Access Point
IV-4-1-1. Managed AP

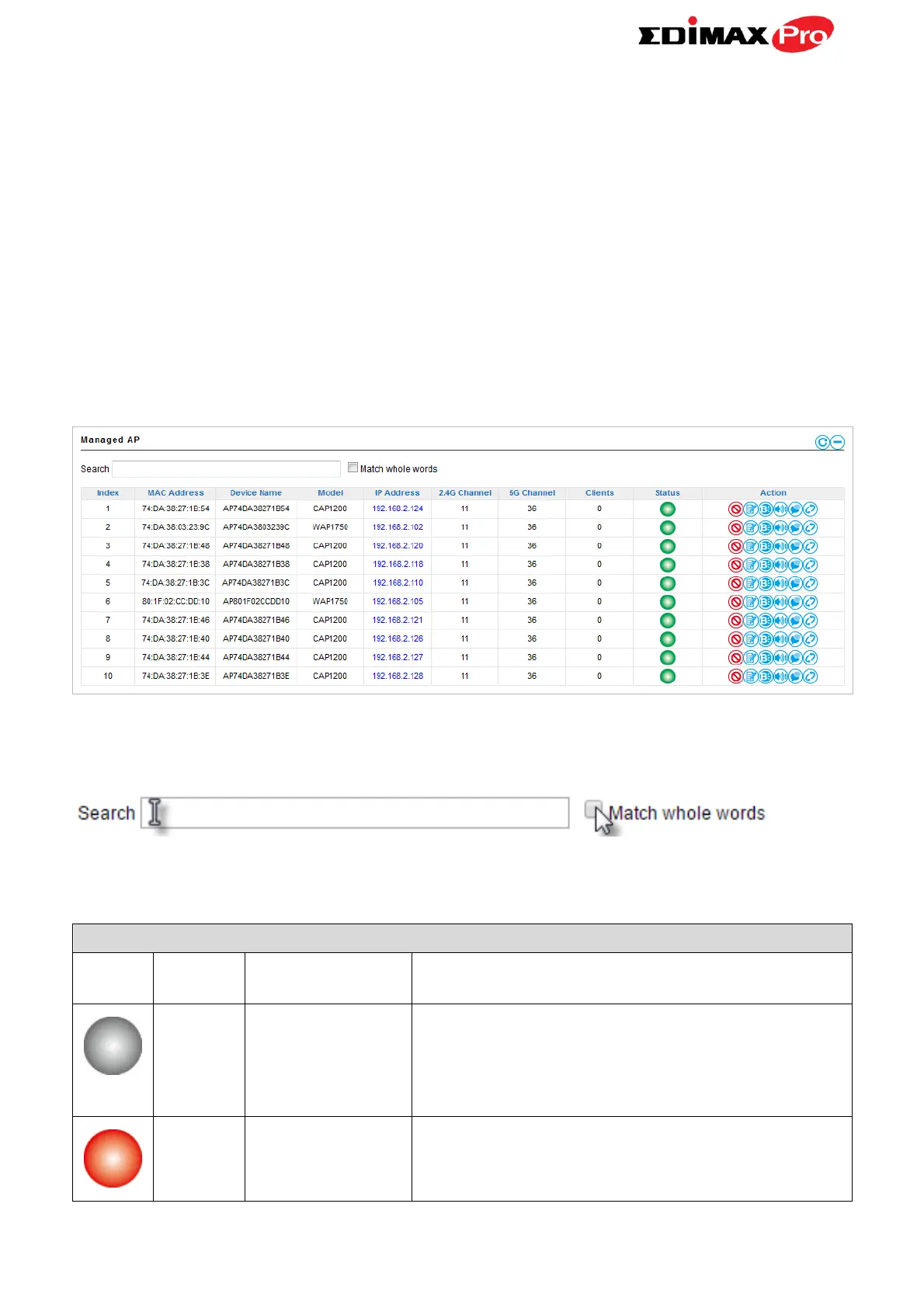

Displays information about each Managed AP in the local network: Index
(reference number), MAC Address, Device Name, Model, IP Address, 2.4GHz &
5GHz Wireless Channel Number, No. of Clients connected to each access point,
and Status (connected, connecting or disconnected).
The search function can be used to locate a specific Managed AP. Type in the
search box and the list will update:
The Status icon displays the status of each Managed AP.
Status Icons
Icon
Color
Status
Definition
Grey
Disconnected
Managed AP is disconnected. Please
check the network connection and ensure
the Managed AP is in the same IP subnet
as the AP Controller.
Red
Authentication
Failed
System security must be the same for all
access points in the AP array. Please
check security settings (refer to IV-5-8-1.
