Using the EB-34
Using the EB-34
You can interface with the EB-34 with the following:
• The EB-34 control panel
• The copier touch panel
• The Fiery Advanced Controller Interface (FACI), which includes a monitor, keyboard, and mouse.
Note: FACI is available as an option with this product, but is not a standard feature.
EB-34 control panel
The control panel allows you to access, execute, and monitor certain EB-34 functions, such as printing system pages
and rebooting or shutting down the system. The control panel also displays the current status of the EB-34.

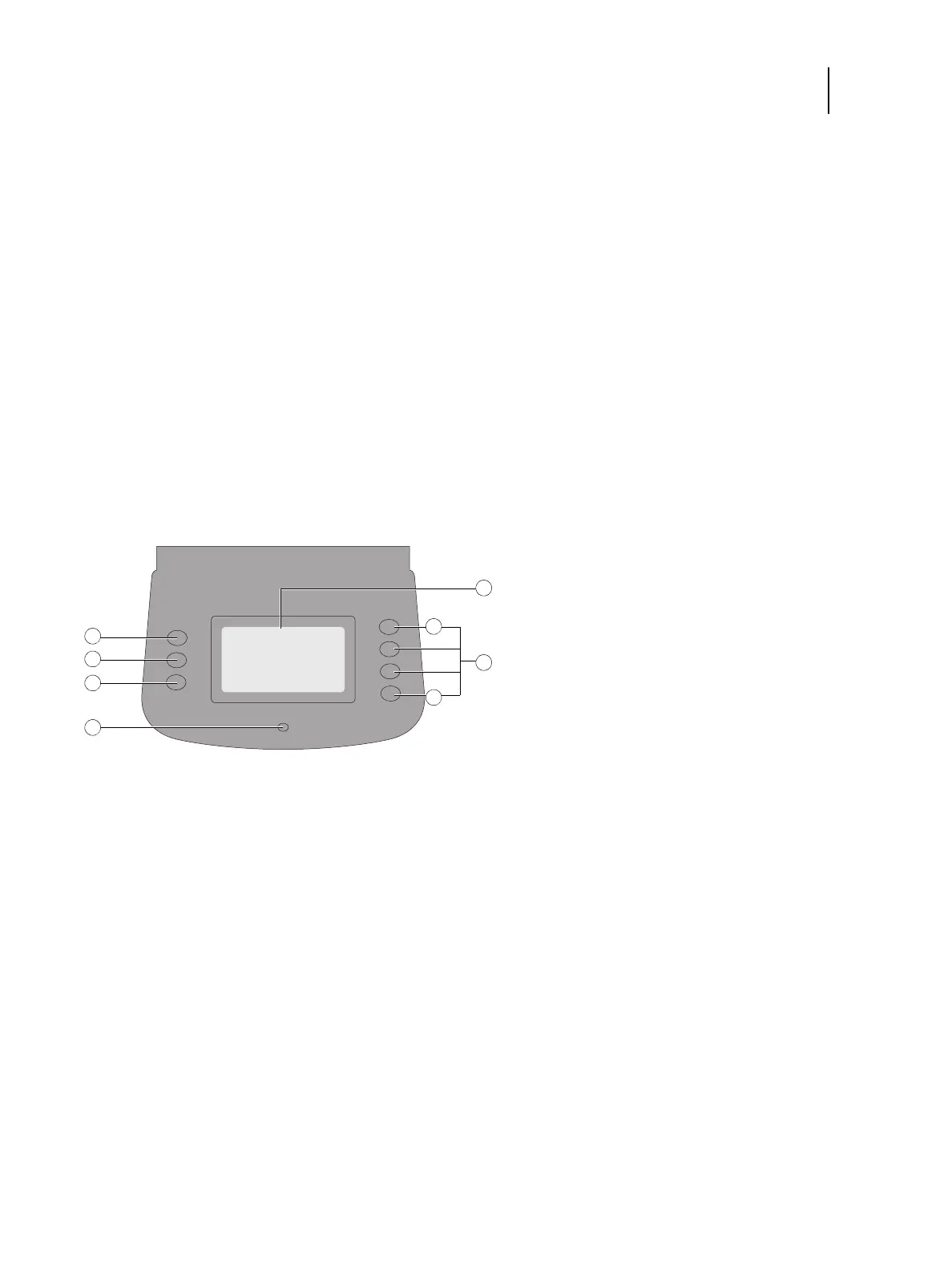

Figure 4: EB-34 control panel
Activity light
The activity light indicates the status of the EB-34 the following ways:
• Flashing amber: The EB-34 is starting up and the BIOS has established communication with the User Interface
Board (UIB).
• Flashing green: The EB-34 is continuing startup and the Windows operating system has established
communication with the UIB.
• Solid green: The EB-34 is powered on and in the Idle state.
• Solid amber: The EB-34 is powered off, but the AC power cable is plugged into the power source. The control
panel LCD continues to draw power when the EB-34 is powered off.
1 Up button 5 Display window
2 Menu button 6 First
3 Down button 7 Line selection buttons
4 Activity light 8 Fourth
1
2
3
4
5
6
7
8
