41 Installation and Service Guide: Printer Controller EB-34
Replacing Parts
2 From inside the chassis, bend the four tabs that secure the top panel to the chassis until they disengage the slots in
the chassis, and then lift the top panel away from the chassis.
It may help to partially loosen the tabs one at a time as you disengage them from the chassis.

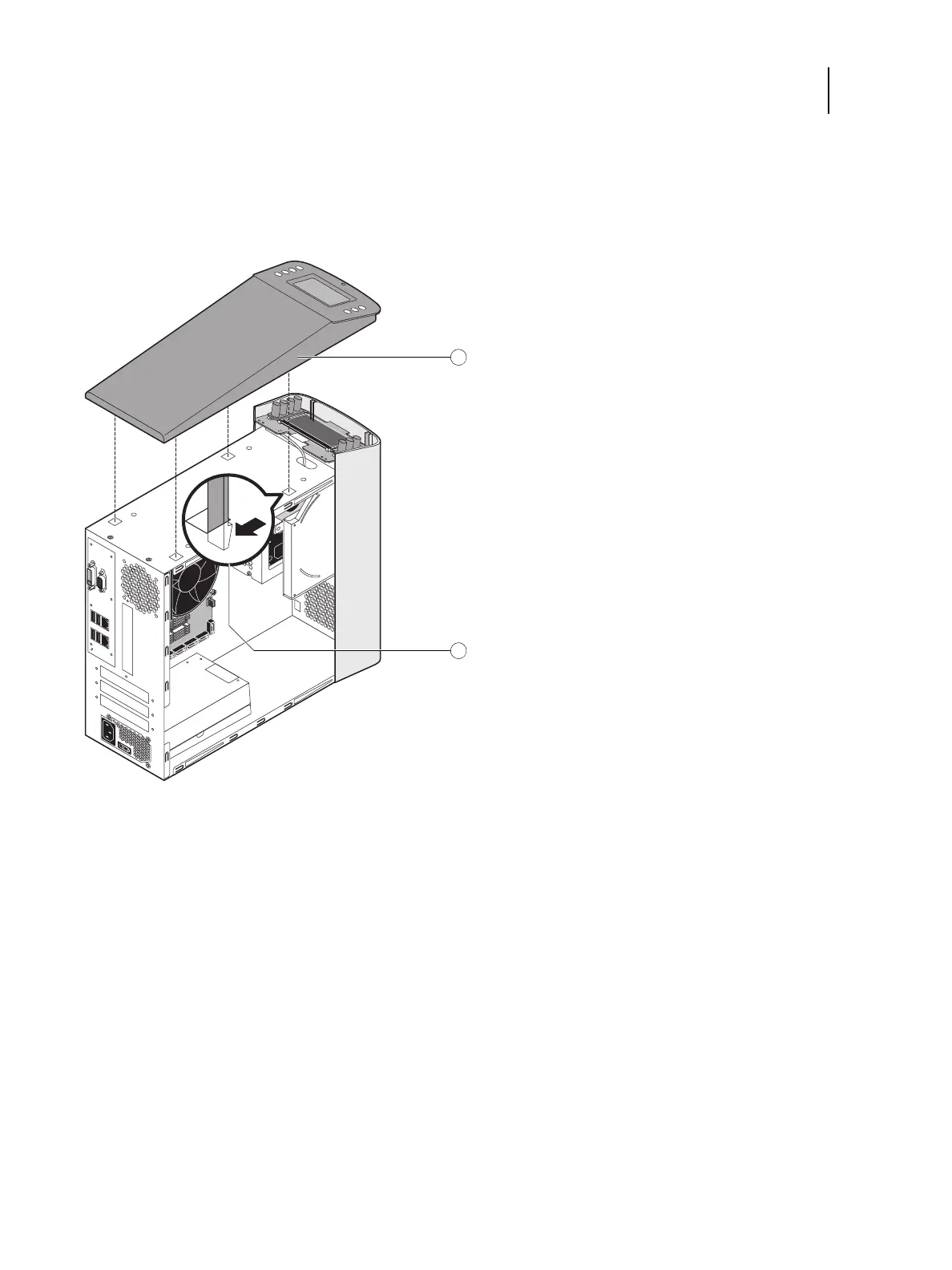

Figure 12: Removing/replacing the top panel
3 To replace the top panel, align the tabs on the underside of the panel with the slots on the top of the chassis.
4 Press the top panel against the chassis and snap it into place.
Snap the tabs into place one at a time until all four tabs have engaged the chassis.
To remove and replace the front panel
Note: To remove the front panel, you must first remove the side and top panels.
1 Shut down the EB-34 (see page 38).
1 Top panel
2 Tab and slot (1 of 4)
