Express Install for File OE release 7.0 or lower
207
NAS Install Options
EMC CONFIDENTIAL
10. Enter the Control Station external networking configuration information from the
values in the “Control Station 0 networking worksheet” on page 277:
Note: This is the network connection to the Control Station that is used to remotely
administer the VNX gateway system.

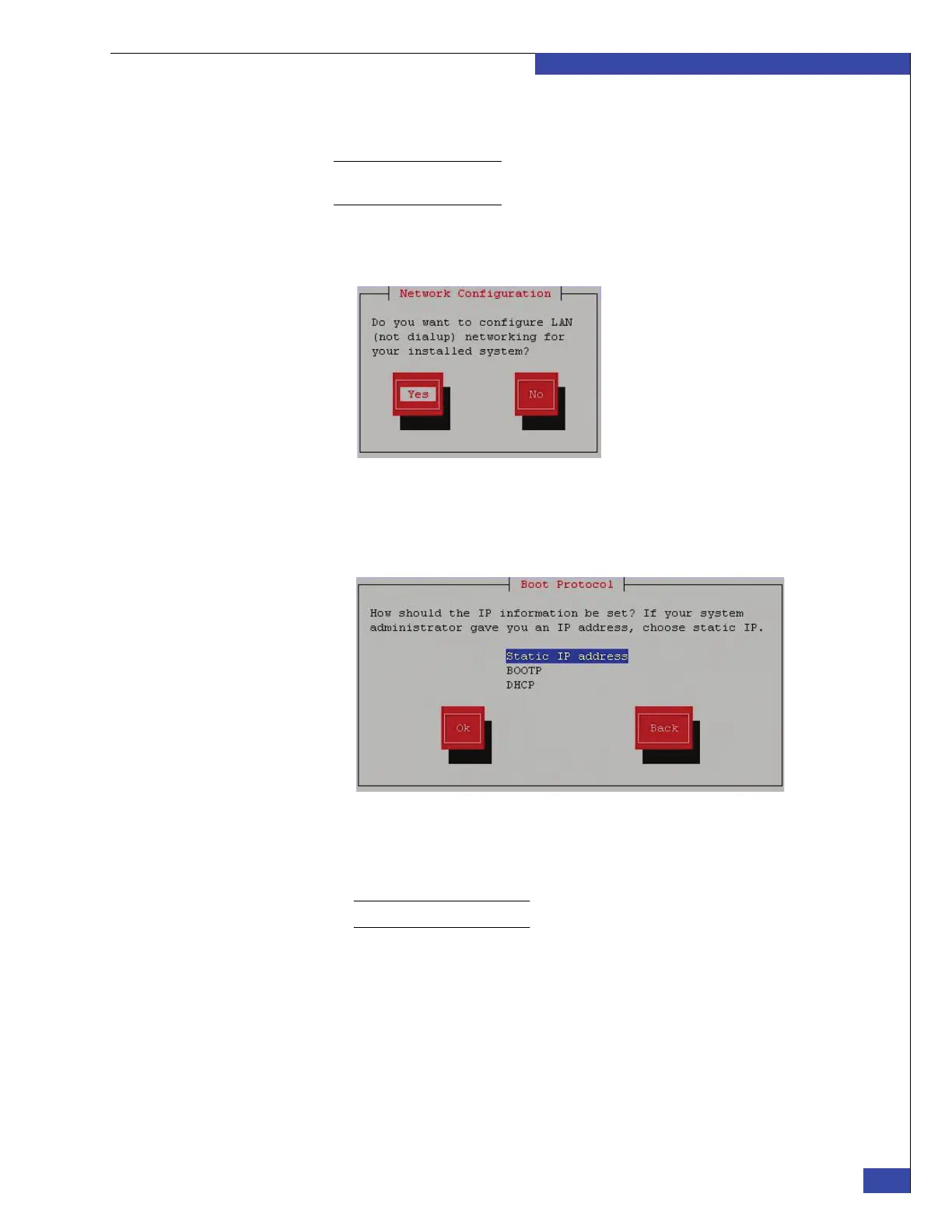

The system displays the Network Configuration dialog box shown in Figure 116.
a. Tab to Yes and then press Enter.
Figure 116 Network Configuration
The system displays the Boot Protocol dialog box shown in Figure 117.
b. Select Static IP address, BOOTP, or DHCP; tab to Ok; and press Enter.
Figure 117 Boot Protocol
If you selected Static IP address, the system displays the Configure TCP/IP
dialog box shown in Figure 118 on page 208.
Note: If you selected BOOTP or DHCP, this dialog box is skipped.
