Emerson CW026 - Figure B-6 Liebert Air Economizer Damper Wiring, CW026 - CW084 Models

Customer-supplied Equipment and Ductwork
101 Liebert
®
CW
™
System Design Manual

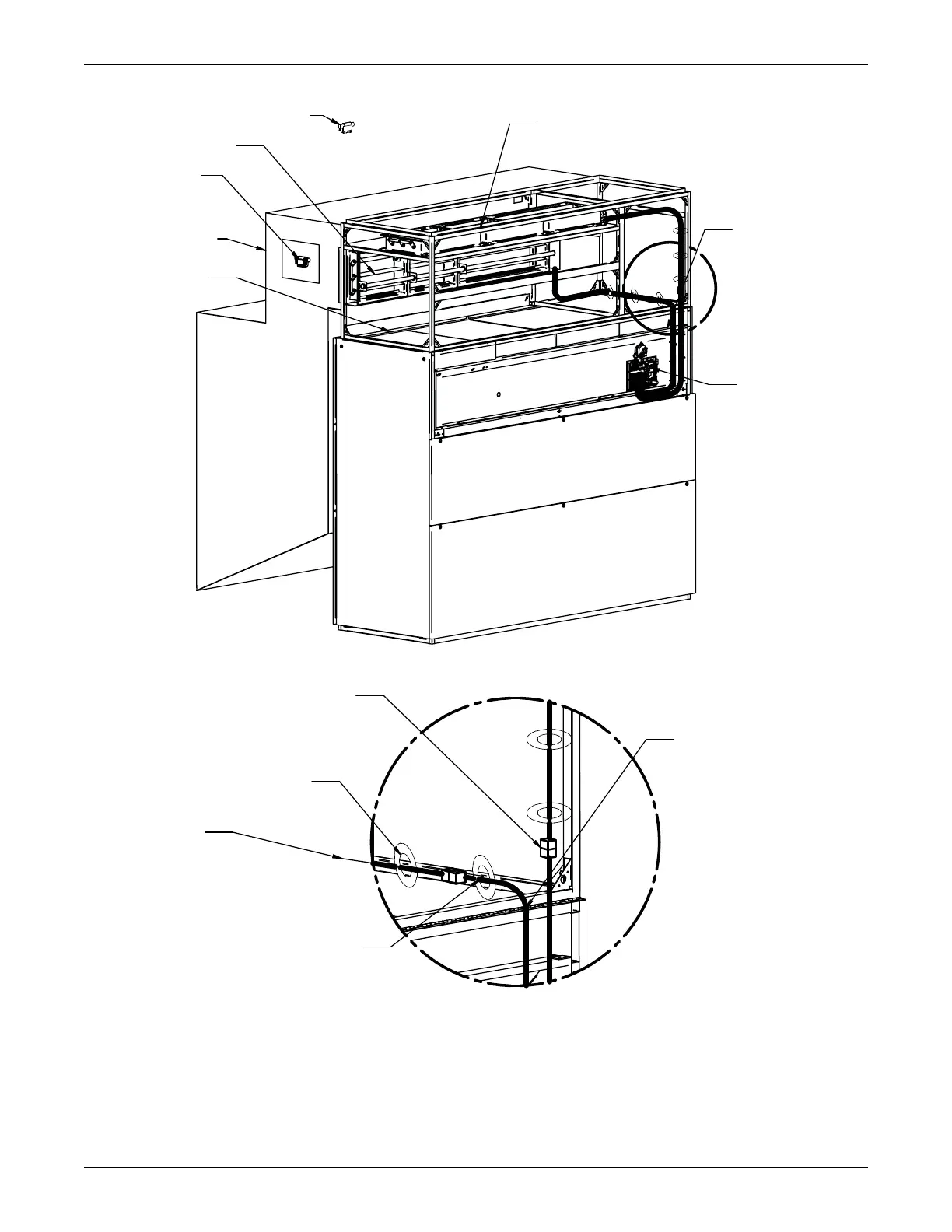

Figure B-6 Liebert Air Economizer damper wiring, CW026 – CW084 models
RETURN AIR
DAMPER MOTOR
CONNECTION
(TOP MOTOR)
OUTDOOR AIR
DAMPER MOTOR
CONNECTION
(BOTTOM MOTOR)
PROVIDE STRAIN RELIEF USING
CABLE TIE ANCHORS AS SHOWN.
CONFIRM TIES ARE TIGHTENED
TO SECURE CABLE.
CABLE TIES / ANCHORS
ROUTE CABLE THROUGH
LOOSE CABLE TIE ON BOTTOM
PLATE OF ECONOMIZER.
TIGHTEN TO PROVIDE
STRAIN RELIEF
FIELD SUPPLIED
OUTDOOR AIR DUCT
RETURN AIR
T/H SENSOR
RETURN AIR
DAMPER
OUTDOOR AIR
DAMPER
FRONT VIEW
A
DETAIL A
LIEBERT
CONTROL BOARD
LOCATION
ROUTE CABLES
THROUGH HOLES
IN TOP OF ELECTRIC
BOX AND INTO THE
BOTTOM OF
ECONOMIZER
2" PRE-FILTERS
OUTDOOR AIR
T/H SENSOR
(IDENTIFIED WITH
OUTDOOR LABEL)
DPN001449
Pg. 3 Rev. 3
