Cabinet and Floor-planning Dimensions—Upflow Models with EC Fans
35 Liebert
®
CW
™
System Design Manual

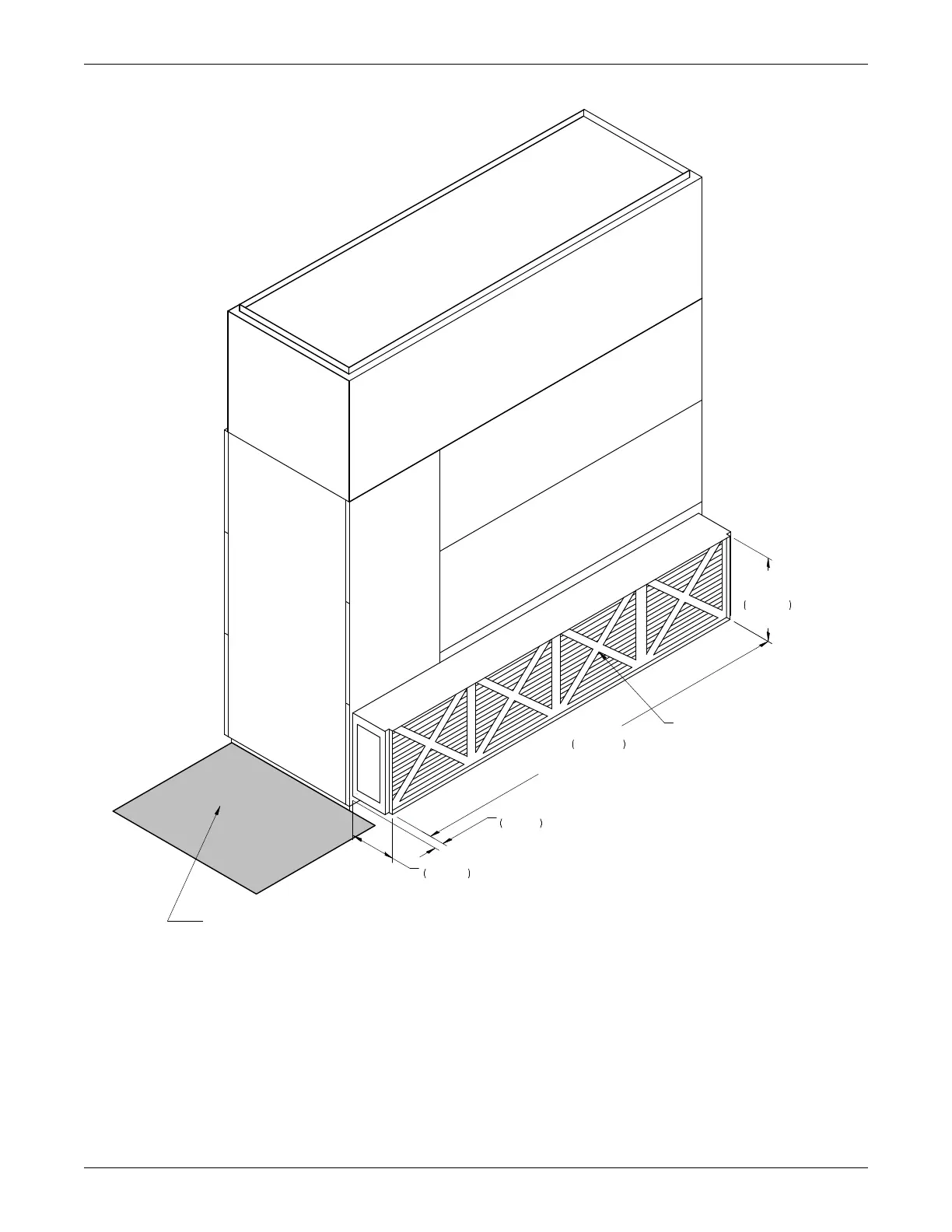

Figure 4-12 Cabinet and floor-planning dimensions, upflow, CW106, CW114 with EC fans, rear return
24 1/4"
616mm
2 1/4"
57mm
117 1/2"
2984mm
RETURN AIR DUCT
CONNECTION DATA
MODELS WITH REAR RETURN
SHADED AREA INDICATES A RECOMMENDED
CLEARANCE OF 25" (635mm) BE PROVIDED FOR
REAR RETURN FILTER REMOVAL ON ONE END
OF THE UNIT.
RETURN AIR FILTER OPENING
22"
559mm
DPN003216
Pg. 2 Rev. 1
