Emerson CW026 - Figure 5-2 Piping General Arrangement, Downflow, CW146 - CW181

Piping
Liebert
®
CW
™
System Design Manual 54

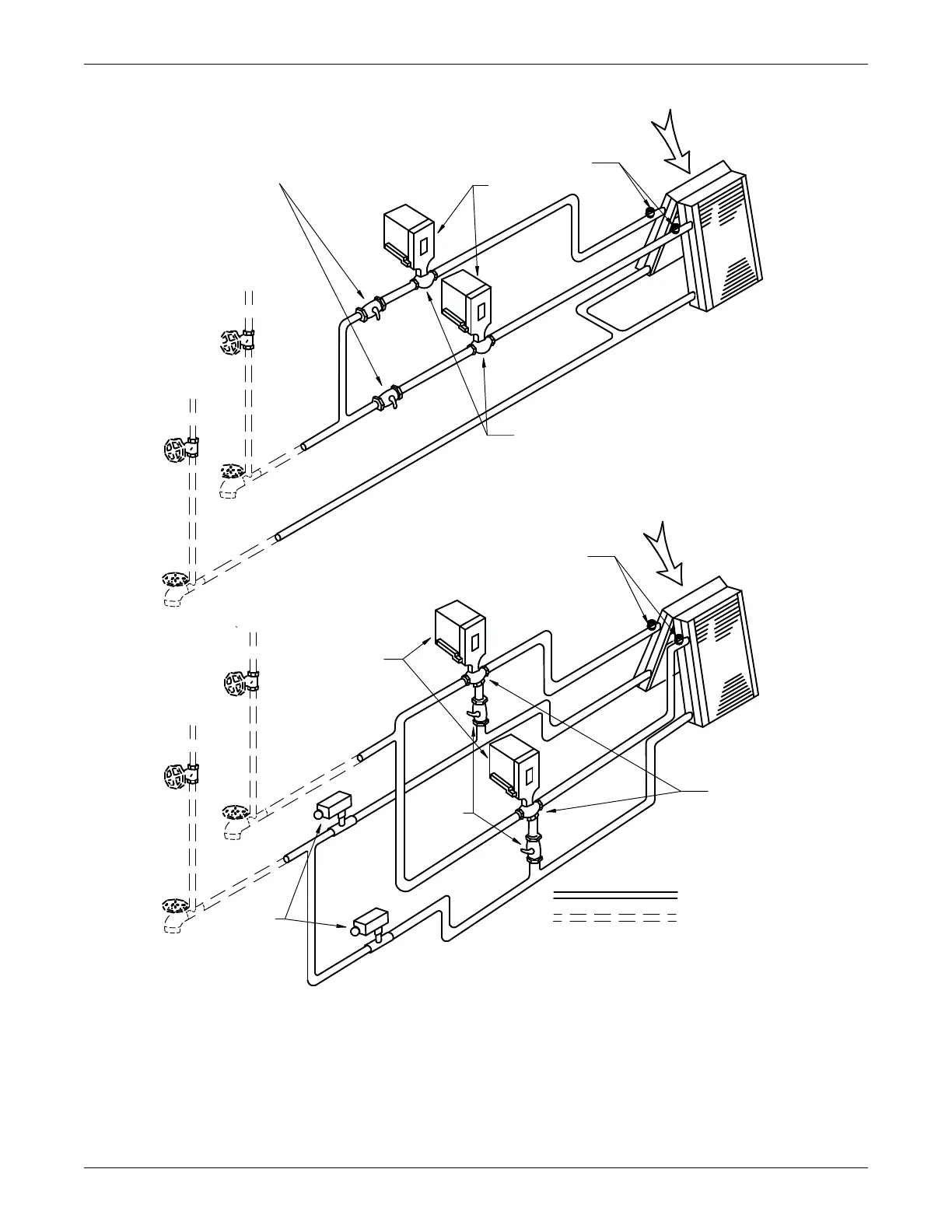

Figure 5-2 Piping general arrangement, downflow, CW146 – CW181
Chilled
Water
Return
Chilled
Water
Supply
Shut*
Off
Valves
Hose*
Bibs
Valve
Actuator
Air Flow
Chilled
Water
Coil
2-WAY VALVE
Chilled
Water
Supply
Chilled
Water
Return
Shut*
Off
Valves
Hose*
Bibs
2-Way Chilled
Water Valve
Air Flow
Chilled
Water
Coil
FACTORY PIPING
FIELD PIPING
*Components are not supplied by Liebert but
are required for proper circuit operation
and maintenance.
3-WAY VALVE
Ball Valve
(Optional)
A
AB
B
A
AB
B
3-Way Chilled
Water Valve
Valve
Actuator
Flow
Switch
(Optional)
Ball Valve
(Optional)
Bleed Valve
Bleed Valve
DPN001657
Rev. 3
