Cabinet and Floor-planning Dimensions—Upflow Models with EC Fans
33 Liebert
®
CW
™
System Design Manual

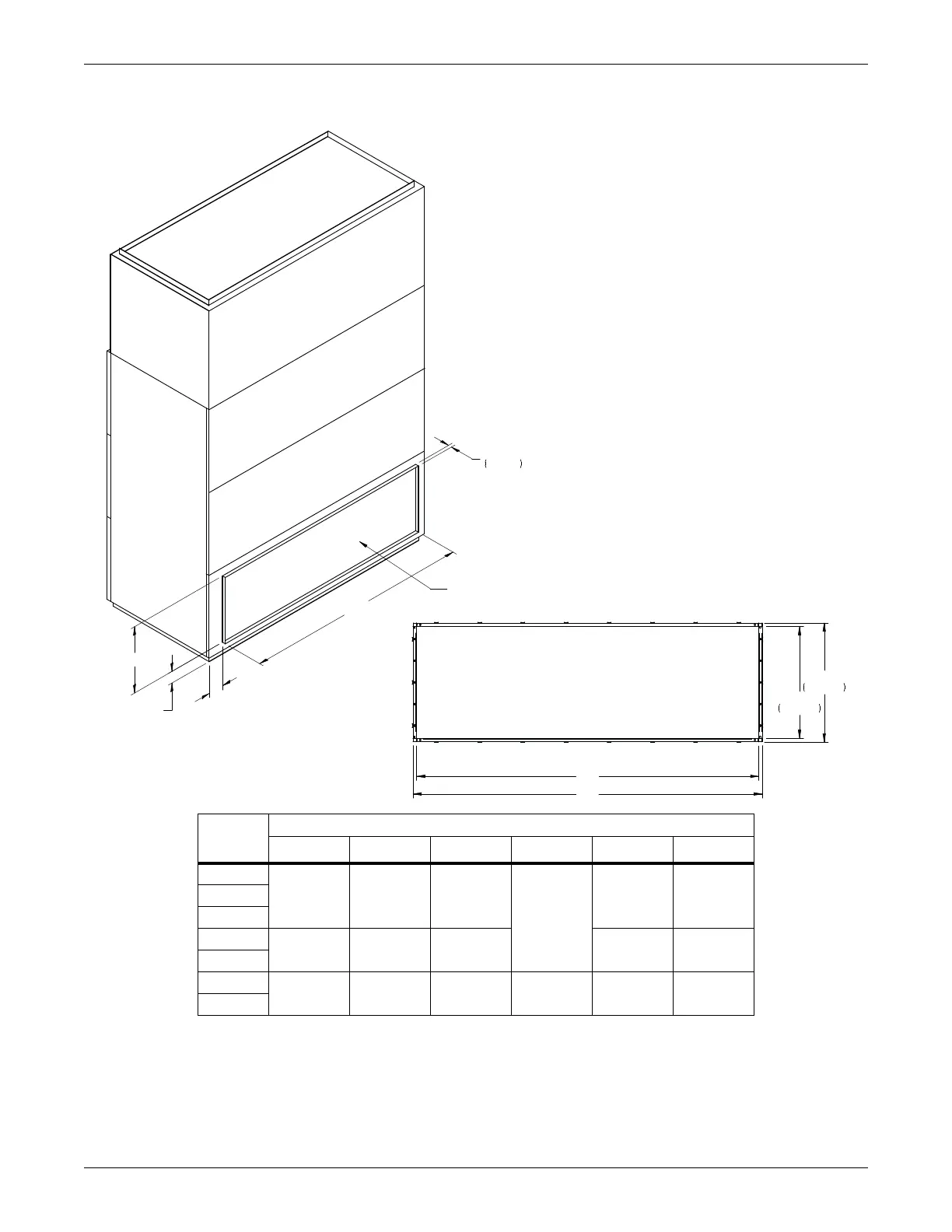

Figure 4-10 Cabinet and floor-planning dimensions, upflow,
CW026 - CW084 with EC fans, rear and bottom air return
Chilled
Water
Model
Dimensional Data inches (mm)
ABCDEF
CW026
44 (1118) 18 (457) 5 (127)
3 (76)
46 (1168) 48 (1219)CW038
CW041
CW051
68 (1727) 20 (508) 4 (102) 70 (1778) 72 (1829)
CW060
CW076
86 (2184) 18 (457) 5 (127) 6-1/2 (165) 95 (2413) 97 (2464)
CW084
1"
25mm
C
B
A
D
REAR AIR RETURN MODEL
RETURN AIR OPENING
BOTTOM VIEW
33"
838mm
31"
787mm
F
E
FRONT OF UNIT BOTTOM AIR RETURN MODEL
DPN003215
Pg. 2 Rev. 1
