Emerson CW026 - Cabinet and Floor-Planning Dimensions-Upflow Models with Forward-Curved Blowers; Figure 4-15 Cabinet and Floor-Planning Dimensions, Upflow, CW026 - CW084 with Forward-Curved Blowers

Dimensions
Liebert
®
CW
™
System Design Manual 38
4.5 Cabinet and Floor-planning Dimensions—
Upflow Models with Forward-curved Blowers

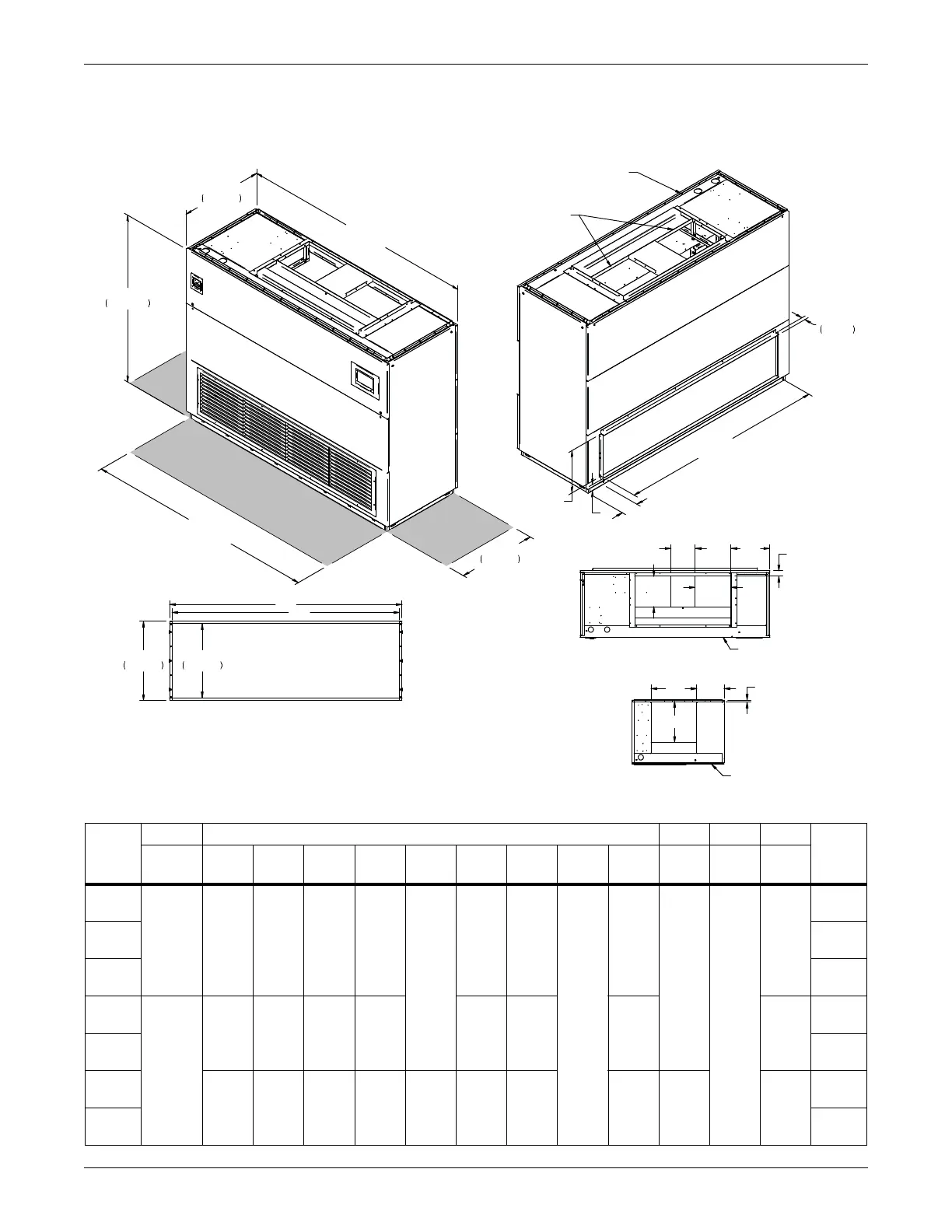

Figure 4-15 Cabinet and Floor-planning dimensions, upflow, CW026 – CW084 with forward-curved blowers
Chilled
Water
Model
Dimensional Data inches (mm)
Net
Weight
lb (kg)
No. of
Blowers A B C D E F G H J K L M
CW026
1
50
(1270)
48
(1219)
46
(1168)
44
(1118)
3 (76)
5 (127)
18
(457)
15-7/8
(403)
18-5/8
(473)
1 (25)
19-1/2
(495)
N/A
760
(345)
CW038
795
(361)
CW041
855
(388)
CW051
2
74
(1880)
72
(1289)
70
(1778)
68
(1727)
4 (102)
20
(508)
14-3/4
(375)
11
(279)
1090
(494)
CW060
1155
(524)
CW076
99
(2515)
97
(2464)
95
(2413)
86
(2184)
6.5
(165)
5 (127)
18
(457)
18-5/8
(473)
2 (51)
12-5/8
(321)
1320
(599)
CW084
1420
(644)
MODELS W/ REAR RETURN
A
OVERALL
35.00"
889mm
CABINET
72.00"
1829mm
33.00"
838mm
UNIT BASE
B
UNIT BASE
D
AIR RETURN
F
G
AIR
RETURN
BOTTOM AIR RETURN OPENING CW026-CW084
C
31.00"
787mm
B
33.00"
838mm
E
Notes:
1. Air Grille may be supplied on units with front or rear return air.
2. Shaded areas indicate a recommended clearance of 36" (914mm)
be provided for component access and filter removal.
3. A Return Air Grille may be ordered in place of the duct flange on
units with rear return air (see specification sheet for option supplied).
1.00"
25mm
TYP.
1" (25mm) duct flange
for plenum alignment
FLANGES PROVIDED ON
BLOWER(S) OUTLET FOR
SUPPLY AIR DUCTING.
CW026-041
J L
CW051-084
H
Typ.
J
Typ.
M L
K
K
Front of unit
Front of unit
H
DPN003194
Rev. 2
