Emerson CW026 - Figure 1-7 Blower Configurations-Upflow, Front Return, Forward-Curved Blowers; Figure 1-8 Blower Configurations-Upflow, Rear Return, Forward-Curved Blowers

Blower Configurations
7Liebert
®
CW
™
System Design Manual

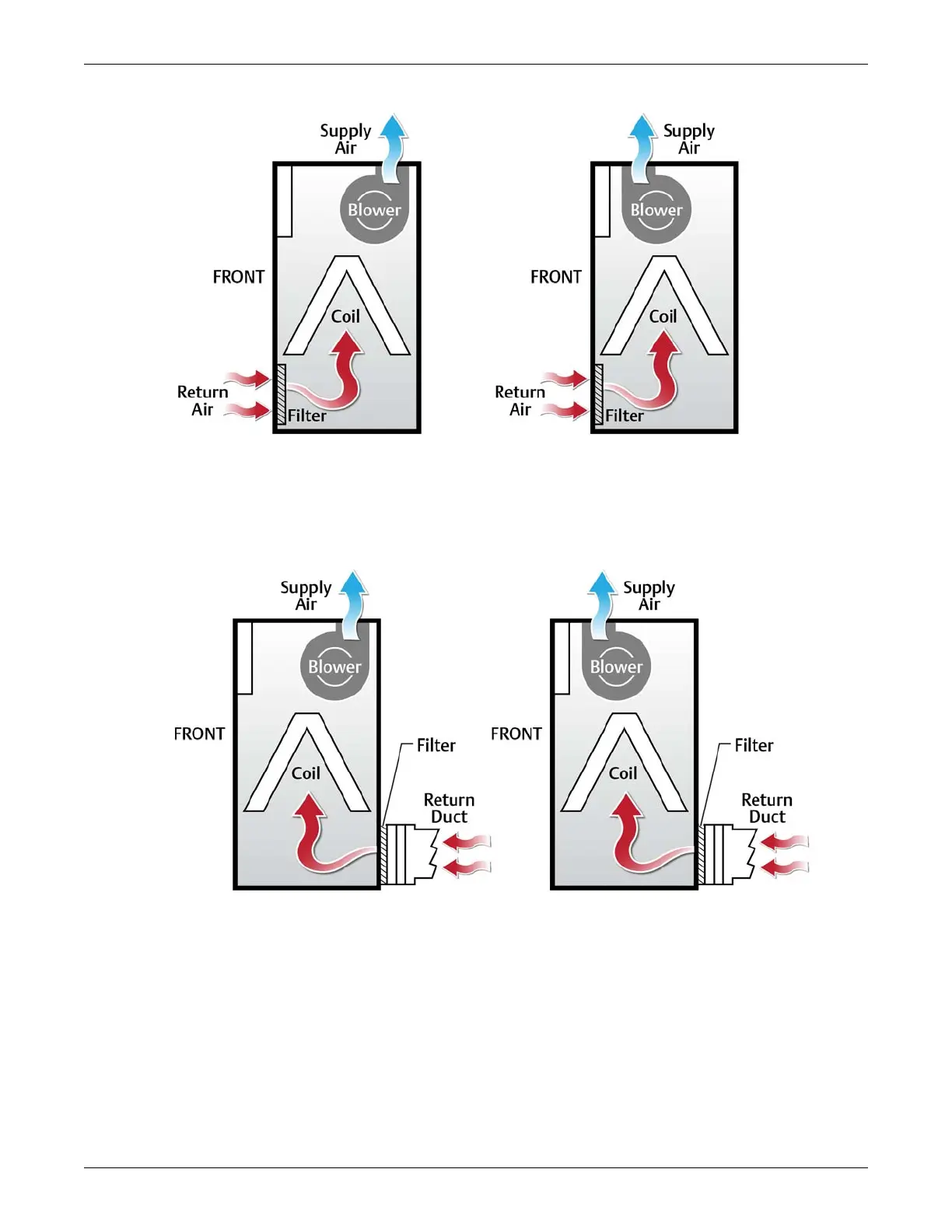

Figure 1-7 Blower configurations—Upflow, front return, forward-curved blowers
Figure 1-8 Blower configurations—Upflow, rear return, forward-curved blowers
Front Throw
Rear Throw
Rear Throw,
Front Throw
