Emerson CW026 - Blower Configurations; Figure 1-3 Blower Configurations-Downflow, Front and Rear Supply, EC Fans; Figure 1-4 Blower Configurations-Downflow, Bottom and Under-Floor Supply, EC Fans

Blower Configurations
5Liebert
®
CW
™
System Design Manual
1.3 Blower Configurations

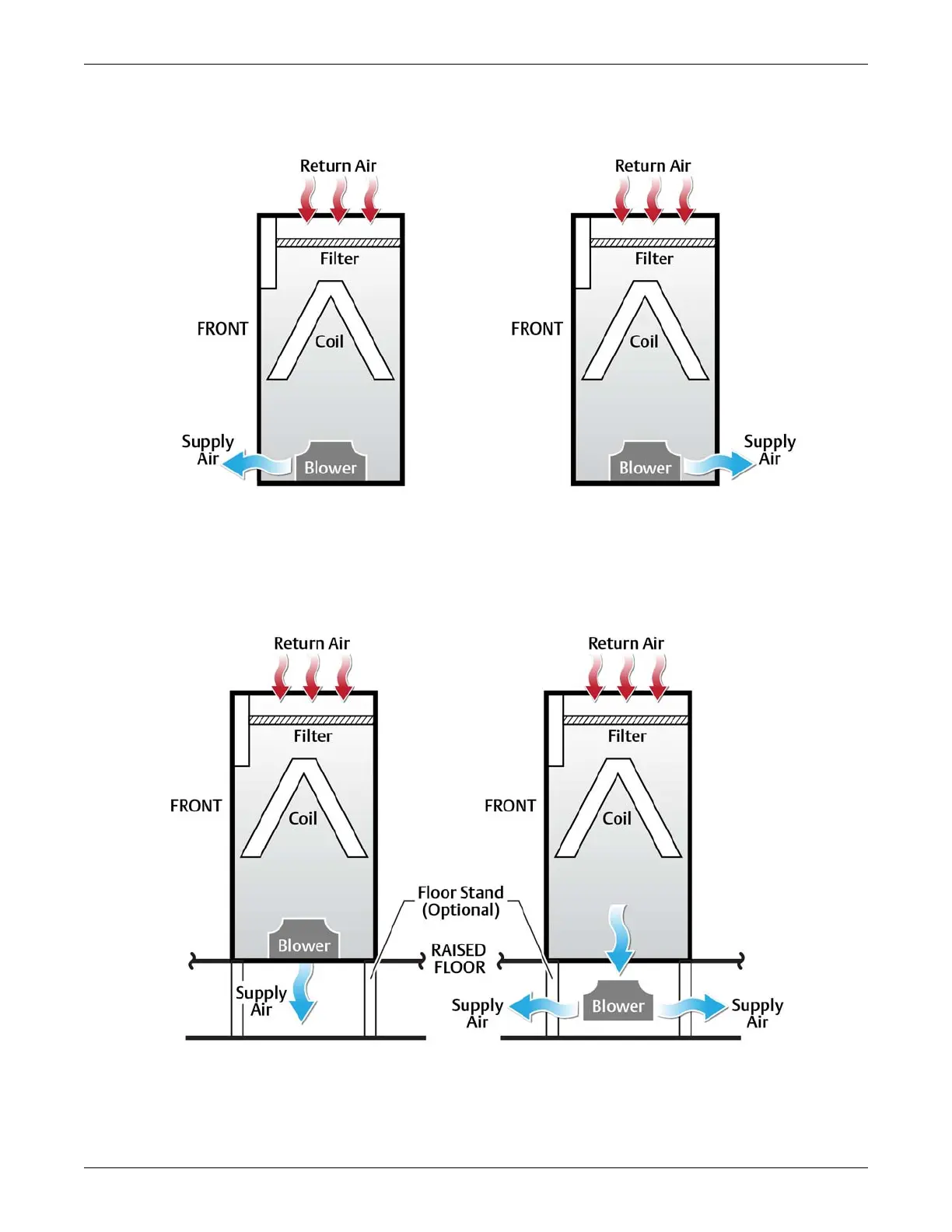

Figure 1-3 Blower configurations—Downflow, front and rear supply, EC fans
Figure 1-4 Blower configurations—Downflow, bottom and under-floor supply, EC fans
Rear Supply
Applicable to installations
without raised floors
Front Supply
Applicable to installations
without raised floors
Under-Floor Supply
(requires 24" minimum height)
Bottom Supply
