Dimensions
Liebert
®
CW
System Design Manual 46
4.7 Floor-stand Dimensions—Units with Forward-curved Blowers

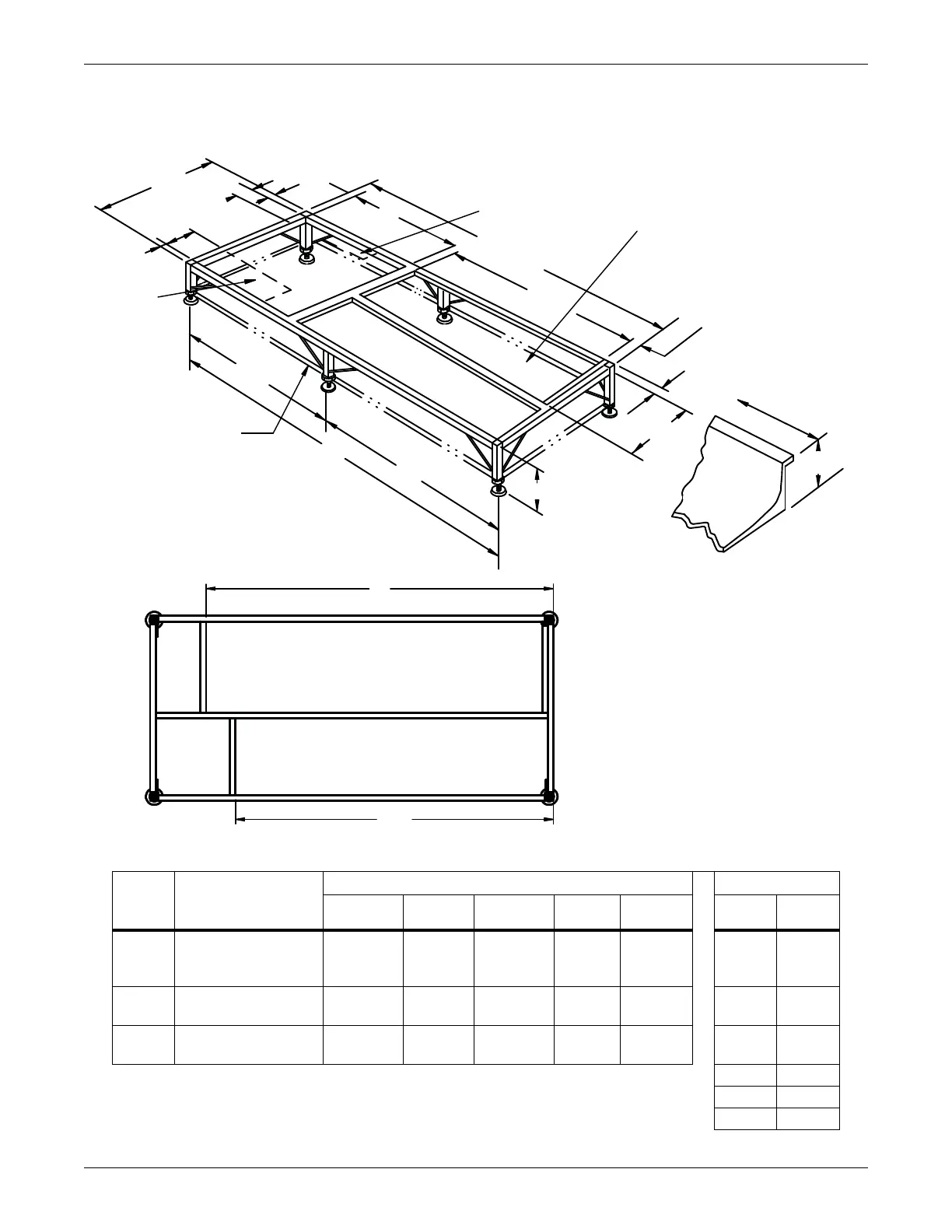

Figure 4-23 Floor-stand planning dimensions, CW026 – CW084 with forward-curved blowers
Model
Overall width
of Unit,**
in. (mm)
Dimensional Data, in. (mm)
Height, in. (mm)
ABCDE
H*
Nominal J
CW026
CW038
CW041
50 (1270) 48 (1219) 0 0 36 (914) 8 (203) 9 (229)
6-1/2
(165)
CW051
CW060
74 (1880) 72 (1829) 0 0
60
(1524)
12 (305) 9 (229)
CW076
CW084
99 (2515) 97 (2464)
48-1/2
(1232)
48-1/2
(1232)
77-3/4
(1975)
15-1/4
(362)
15 (381) 12 (305)
*Leveling feet are provided with ±1-1/2 in. (38 mm) adjustment from nominal height H.
**Overall unit dimension includes panels.
18 (458) 15 (381)
21 (553) 18 (458)
24 (610) 21 (553)
1
(25.4mm)
"
8
(203mm)
3
(76.2mm)
(25.4mm)
1
"
"
"
B
A
C
STANDARD
PIPING AND
ELECTRICAL
ENTRANCE
LOCATION
E
D
OPTIONAL STEAM/HOT WATER
REHEAT OR HUMIDIFIER
PIPING ENTRANCE
LOCATION
AIR DISCHARGE
OPENING
1"
(25.4mm)
2"
(50.8mm)
16 1/4"
(413mm)
LENGTH OF
VANE = D - 1/8" (3mm)
J
OPTIONAL TURNING VANE
FIELD INSTALLED IN
FAN DISCHARGE OPENING
FOR REAR OR FRONT AIR
DISCHARGE
H _ 1 1/2" (38mm) *
+
LEG SUPPORT SUPPLIED ON
18, 21 & 24" HIGH MODELS
33"
(838mm)
56.75"
CROSS-BRACING LOCATION FOR 72" FRAMES ONLY
62"
(1574.8mm)
(1441.5mm)
48" (1219.2mm)
72" (1828.8mm)
97" (2463.8mm)
DPN001676
Rev. 1
