Emerson CW026 - Figure 1-5 Blower Configurations-Downflow, Under-Floor Supply, Forward-Curved Blowers; Figure 1-6 Blower Configurations-Upflow, EC Fans in Plenum

Nomenclature and Components
Liebert
®
CW
™
System Design Manual 6

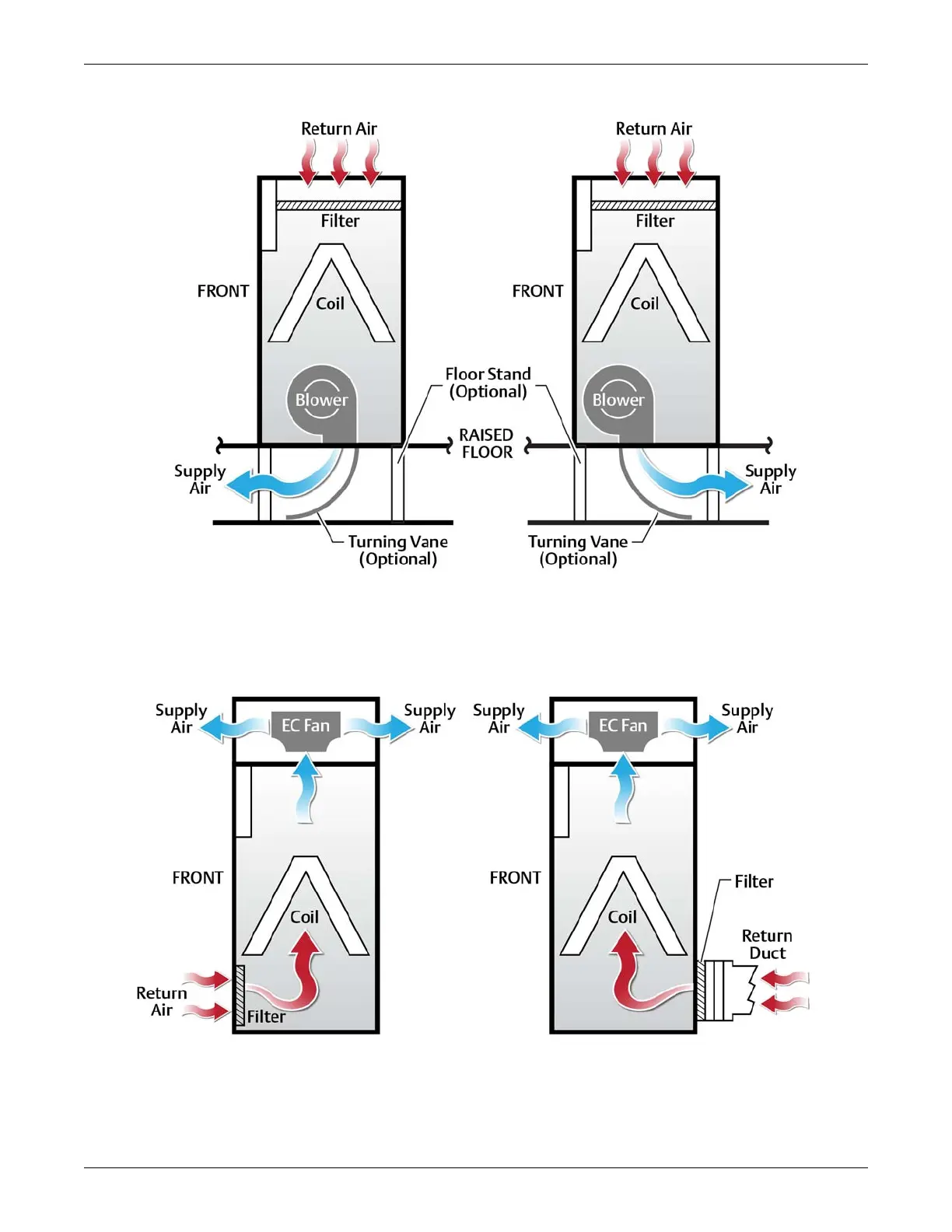

Figure 1-5 Blower configurations—Downflow, under-floor supply, forward-curved blowers
Figure 1-6 Blower configurations—Upflow, EC fans in plenum
Front Throw
Rear Throw,
Front Return
Rear Return, Ducted
