NOTE: Refer to specification sheet for full load amp and wire size amp ratings.

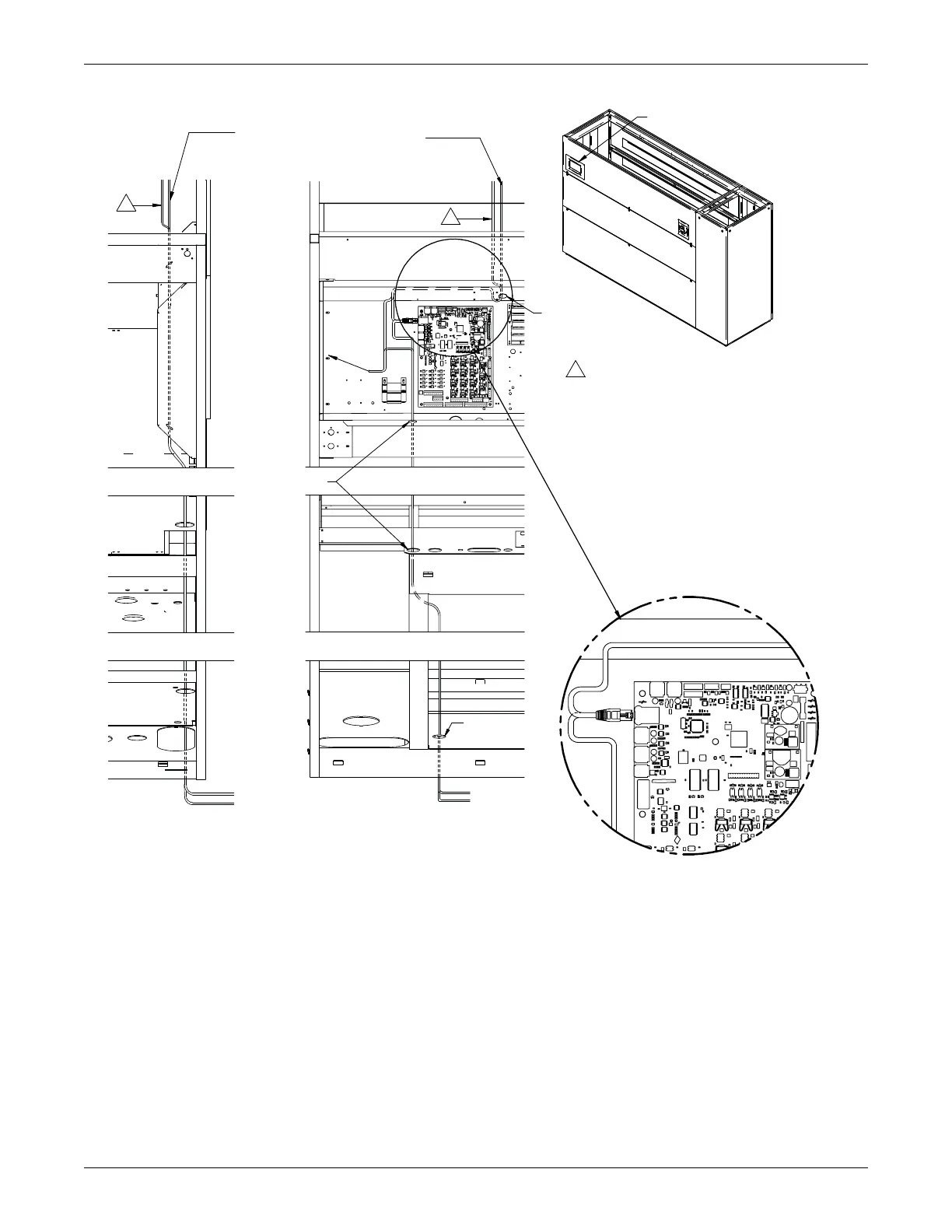

Low Voltage Communication Wiring
CAT5E Ethernet connections – field installed
Avoid routing near high voltage wiring.
Secure wiring to prevent damage and
use bushing or edge guard to avoid sharp edges.
Remove knockouts
to access control board.
Top Entrance
Electric Box Bottom
Coil Support Frame
Unit Bottom
Bottom Entrance
Monitoring Panel
To display
1. To provide unit to unit (U2U) networking, unplug the cable
from P64 on the iCOM board and from ETH-1 on the touch
screen display. Remove the cable. The first customer
connection point will be to ETH-1 on the display.
The second customer connection point will be P64 at the iCOM
control board. Alternatively, the cable can be unplug at P64
on the iCOM control board, and plug into a straight-thru
Ethernet coupler (Not provided). The first customer connection
will be on the other side of the coupler. The second connection
will be at P64 on the iCOM control Board.
Notes:
1
1
Remove knockout
to access control board.
Remove knockout
P64
DPN003199
Pg. 2 Rev. 1
