Emerson CW026 - Figure 1-2 Upflow Model Component Locations

Nomenclature and Components
Liebert
®
CW
™
System Design Manual 4

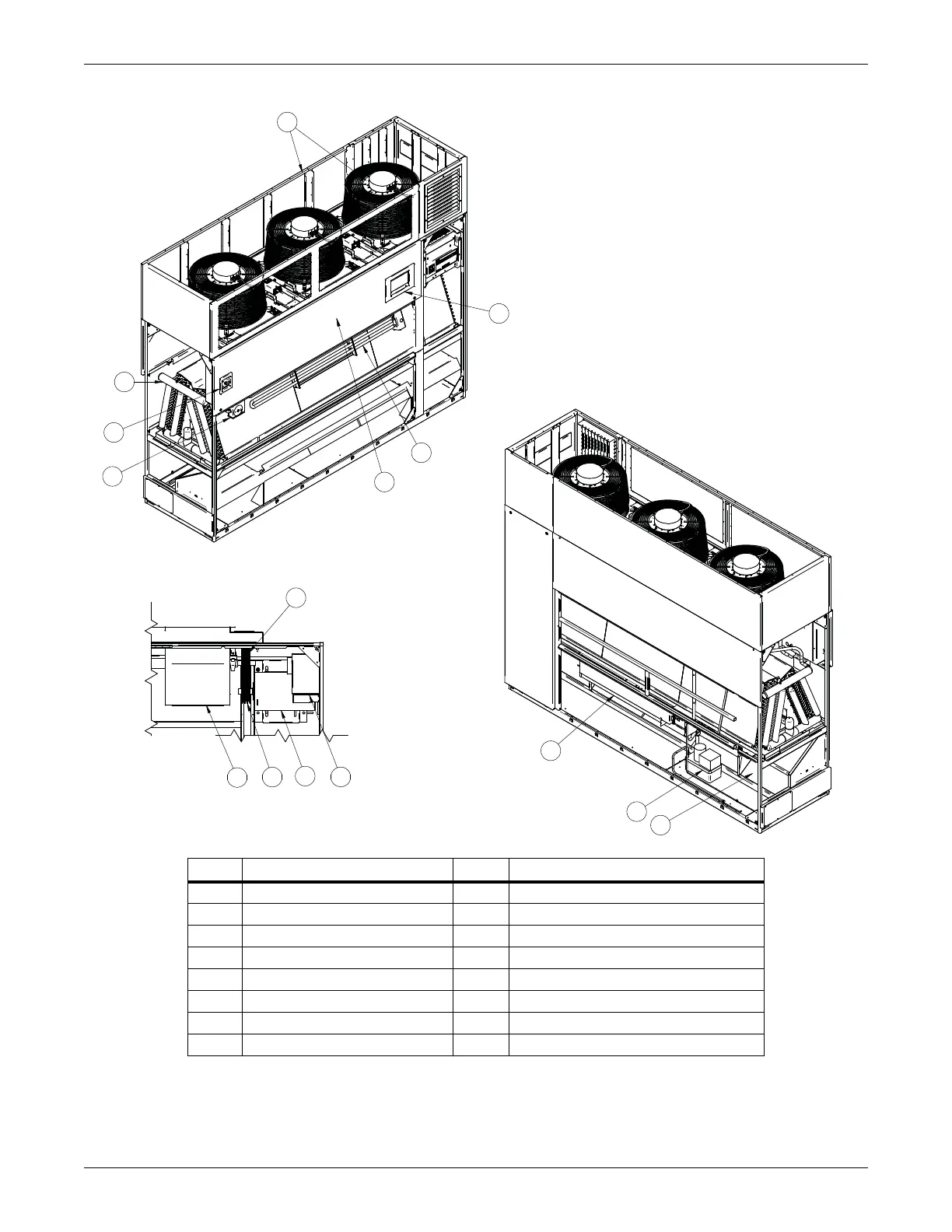

Figure 1-2 Upflow model component locations
Item Description Item Description
1 iCOM control display 9 Infrared humidifier (optional)
2 Electric box 10 Reheat (optional)
3 Filters 11 Disconnect (optional)
4 Coil 12 Condensate pump (optional)
5 Motor 13 Variable-frequency drive (optional)
6 Blower 14 Plenum with EC fans (optional)
7 Fan Pulley 15 Smoke Detector (optional)
8 Motor sheave and belts
Optional Forward-curved Blower Configuration
Front View
1
2
3
4
5
6
7
8
9
11
12
13
14
10
15
Optional EC Fan Configuration
Front View
Optional EC Fan Configuration
Rear View
Ships loose for field installation
on bottom return units.
Ships loose for
field installation
DPN002868
Rev. 1
