Emerson CW026 - Figure 4-22 Floor-Stand and Floor-Planning Dimensions, Downflow, CW300 and CW400 with EC Fans

Floor-stand Dimensions—Units with EC Fans
45 Liebert
®
CW
™
System Design Manual

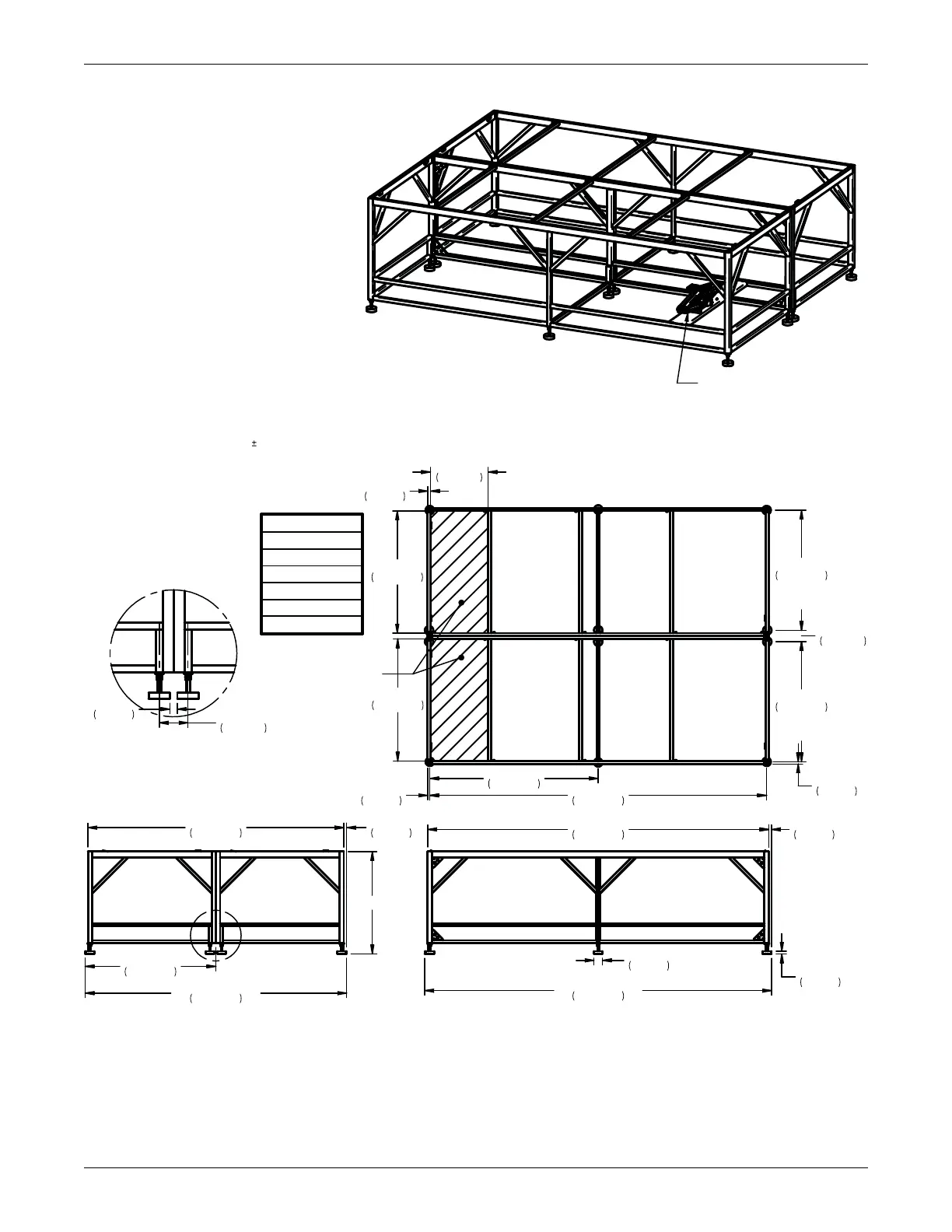

Figure 4-22 Floor-stand and floor-planning dimensions, downflow, CW300 and CW400 with EC fans
NOTE:
1) This floorstand should be used when EC fans are
permitted to be lowered into the floorstand.
2) All paneled sides of unit overhang floorstand 1” (25mm).
3) The floorstand used with EC units is not symmetrical and its orientation to the Liebert CW is critical for lowering the
EC fans. Unless the floorstand is installed in the correct position, the blowers will not lower into the floorstand.
4) Jack and jack support are shipped loose and are intended to be placed into position under each fan and utilized to
lower or raise that fan as needed.
*Leveling feet are provided with
1-1/2” (38mm) adjustment from nominal height 36” (914mm).
5) Hatched area for piping access.
See note 5
See note 4
Height in ( mm )
A*
24 (610)
30 (762)
36 (914)
42 (1067)
48 (1219)
92"
2338mm
OVERALL DEPTH
A*
90"
2287mm
1"
25mm
46"
1169mm
122"
3099mm
OVERALL WIDTH
3"
76mm
TYP.
120"
3048mm
1"
25mm
7/8"
23mm
3/4"
19mm
118 1/2"
3010mm
59 1/4"
1505mm
3/4"
19mm
42 1/4"
1073mm
CENTER OF
FEET
4"
102mm
42 1/4"
1073mm
CENTER OF
FEET
A
DETAIL A
4"
102mm
1"
26mm
20 1/4"
514mm
1"
25mm
43"
1092mm
43"
1092mm
DPN002433
Rev. 0
