Emerson X-STREAM XE - Fig. 4-10: Sockets X4.1 and X4.2 - Pin Configuration

Emerson Process Management GmbH & Co. OHG 4-15
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
4
Installation
4.6.1 Installation - X-STREAM XEGK, X-STREAM XEGP

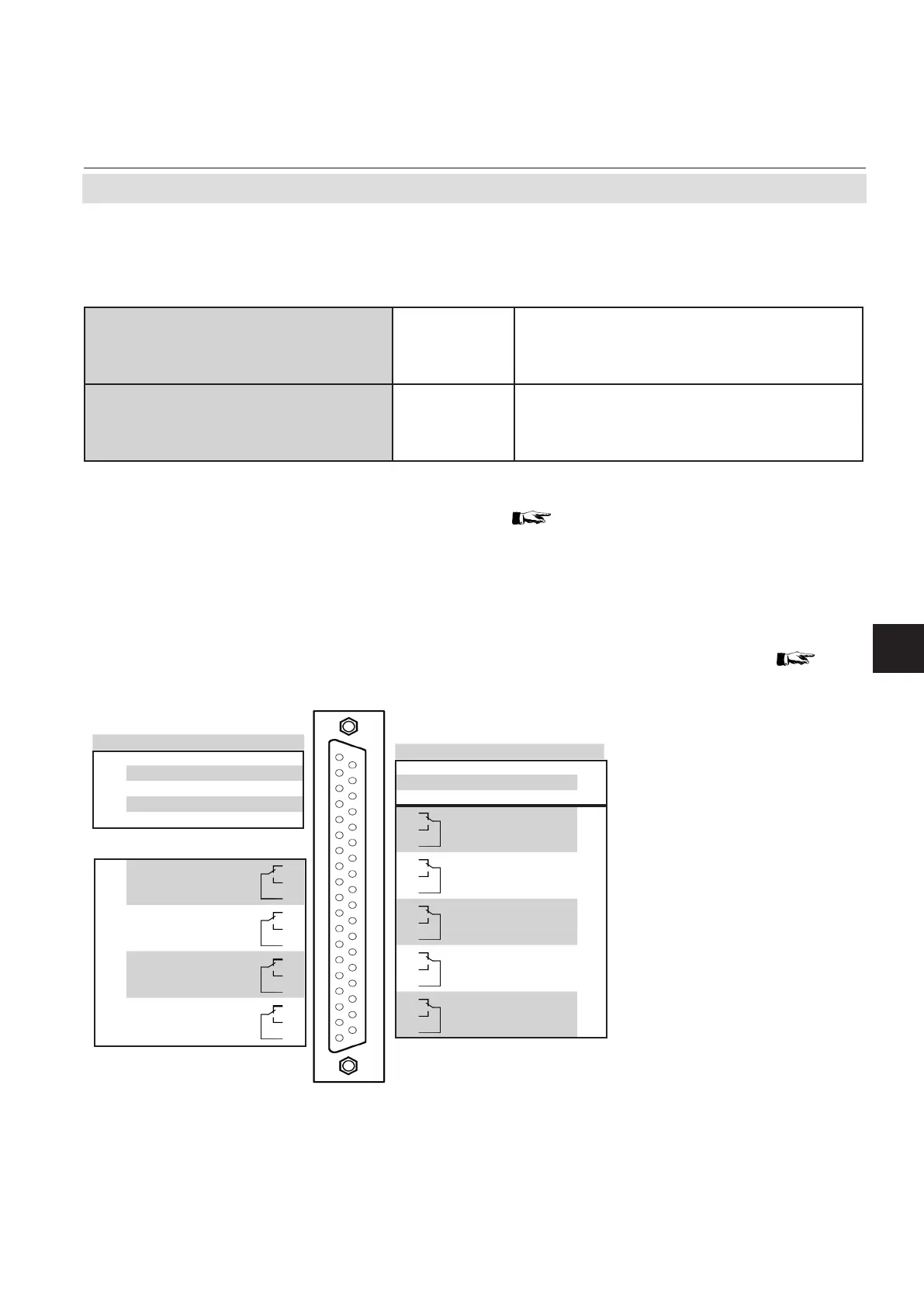

Fig. 4-10: Sockets X4.1 and X4.2 - Pin Conguration
Digital inputs & outputs
Notes!
Depending on model and conguration, an
analyzer may be tted with up to 2 of these
sockets (the unit is thus equipped with 14
digital inputs and 18 digital outputs).
To aid identication, the sockets are label-
led X4.1 and X4.2.
Consider the installation notes in
sec-
tion 4.7
Signal Pin
Input 1 1
Input 2 2
Input 3 3
Input 4 4
GND for all digital inputs 5
unused 6
unused 7
Output 5 NC 8
Output 5 NO 9
Output 5 COM 10
Output 6, NC 11
Output 6, NO 12
Output 6, COM 13
Output 7, NC 14
Output 7, NO 15
Output 7, COM 16
Output 8, NC 17
Output 8, NO 18
Output 8, COM 19
Digital
outputs
Digital
inputs
Pin Signal
20 Input 5
21 Input 6
22 Input 7
23 Output 9, NC
24 Output 9, NO
25 Output 9, COM
26 Output 10, NC
27 Output 10, NO
28 Output 10, COM
29 Output 11, NC
30 Output 11, NO
31 Output 11, COM
32 Output 12, NC
33 Output 12, NO
34 Output 12, COM
35 Output 13, NC
36 Output 13, NO
37 Output 13, COM
Digital
outputs
Digital
inputs
Note!
The conguration illustrated here
is that of the rst socket, labelled
X4.1.
Inputs 8–14 and outputs 14–22
are on the second socket (X4.2),
if installed.
7 or 14 digital inputs
(X-STREAM XEGK: max. 7 inputs)
electrical
specication
max. 30 V, internally limited to 2.3 mA
HIGH: min. 4 V; LOW: max. 3 V
common GND
9 or 18 additional relay outputs
(X-STREAM XEGK: max. 9 add.
outputs)
electrical
specication
Dry relay change-over contacts can be
used as NO or NC
max. load. 30 V; 1 A; 30 W resistive
Digital in- & outputs are located on shared 37-pin submin sockets (X4.1 or X4.2; Fig. 4-10),
or on optional terminals adaptor XSTD (XEGP only; next page)
