Emerson X-STREAM XE - X-STREAM XEGP: 19 Inch Tabletop and Rack-Mount Models; Fig. 2-6: X-STREAM XEGP - Dimensions

Emerson Process Management GmbH & Co. OHG2-12
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
2.2.2 Model-Specic Technical Data: X-STREAM XEGP
2.2.2 X-STREAM XEGP: 19 Inch Tabletop and Rack-Mount Models

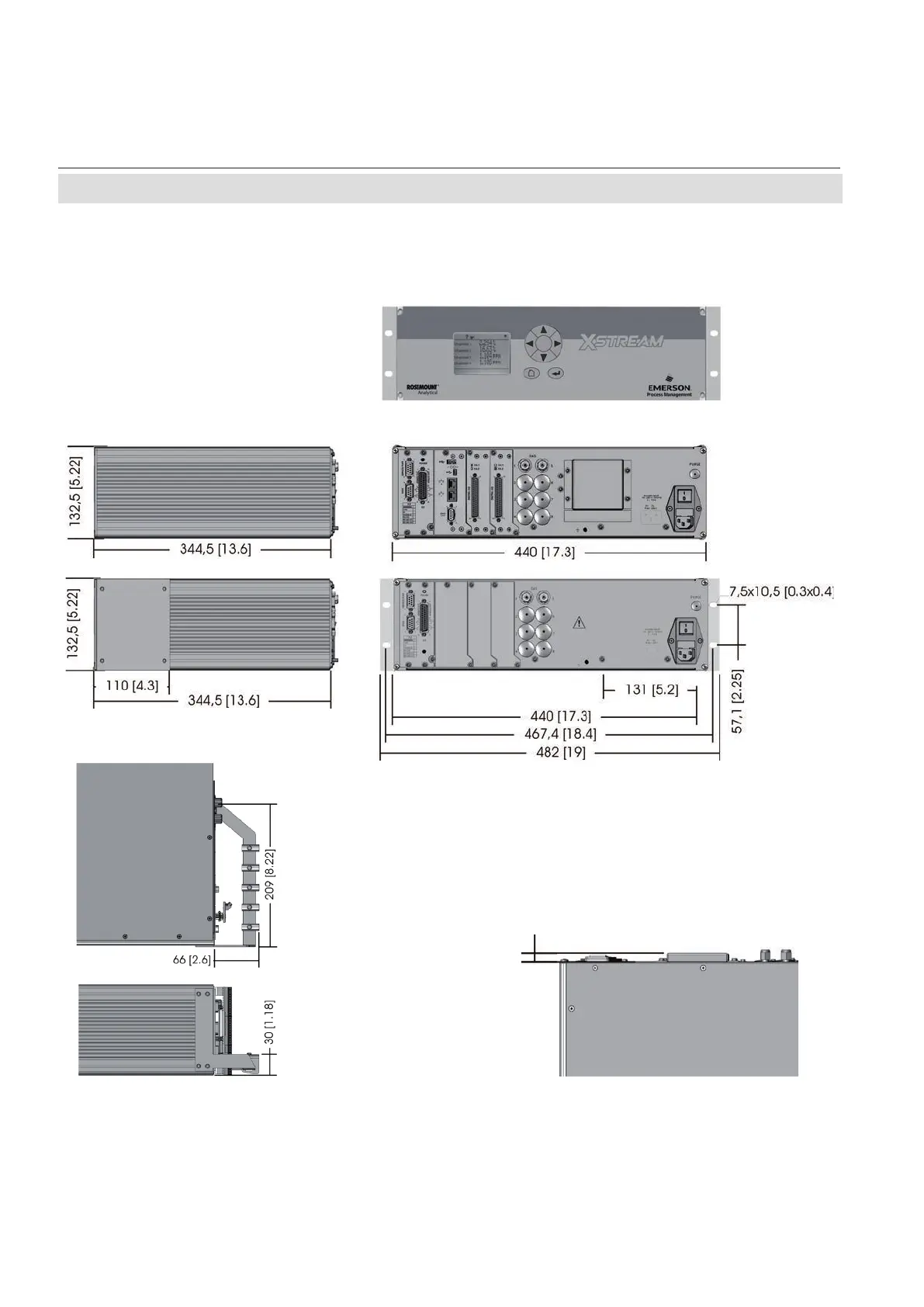

Fig. 2-6: X-STREAM XEGP - Dimensions
approx. values in mm [in]
Strain relief bracket, detail
(model with clamping adapters)
X: Height of rear panel cover for
tO2 cell: 10 mm [0.39]
eO2 cell: 36 mm [1.42]
X
