2.2.3 Model-Specic Technical Data: X-STREAM XEXF Field Housings

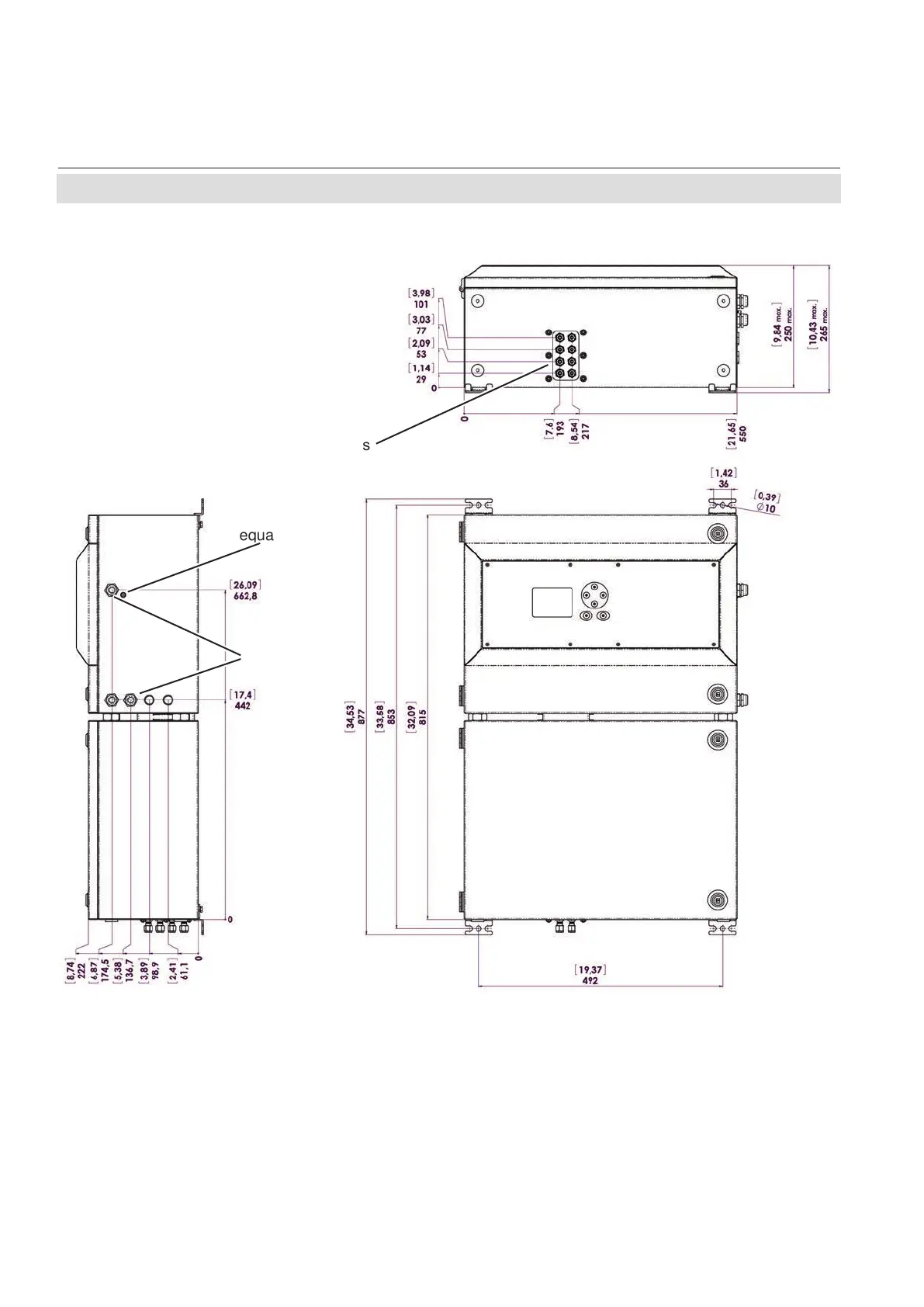

Fig. 2-10: X-STREAM XDF - Dimensions
All dimensions in mm
[inches in brackets]
Cable glands
Connector
for potential
equalization
Gas ttings
