Emerson X-STREAM XE - Fig. 4-18: Terminal Block X1 - Analog Signals and Relay Outputs 1-4

Emerson Process Management GmbH & Co. OHG 4-25
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
4
Installation
4.6.2 Installation - X-STREAM XEXF Field Housings

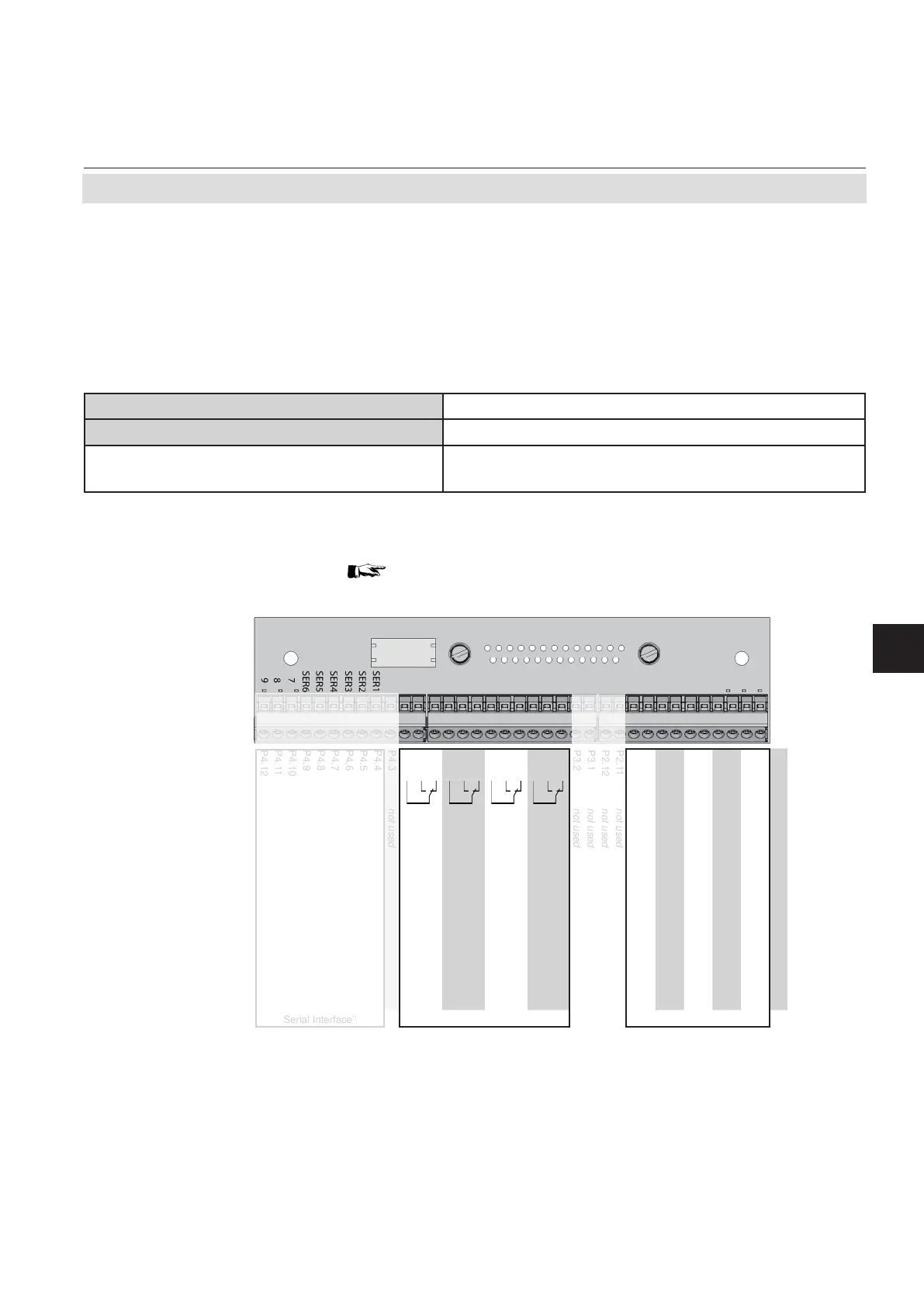

Fig. 4-18: Terminal Block X1 - Analog Signals and Relay Outputs 1-4
Note!
Consider the installation notes in section
4.7and the notes on installing cable glands
on page 4-22.
Pin Signal P2.1 Channel 1, (+) 4 (0) - 20 mA P2.2 Channel 1, GND P2.3 Channel 2, (+) 4 (0) - 20 mA P2.4 Channel 2, GND P2.5 Channel 3, (+) 4 (0) - 20 mA P2.6 Channel 3, GND P2.7 Channel 4, (+) 4 (0) - 20 mA P2.8 Channel 4, GND P2.9 Channel 5, (+) 4 (0) - 20 mA P2.10 Channel 5, GND P2.11 not used P2.12 not used P3.1 not used P3.2 not used P3.3 Output 1 (Failure), NC P3.4 Output 1 (Failure), NO P3.5 Output 1 (Failure), COM P3.6 Output 2 (Maintenance Request), NC P3.7 Output 2 (Maintenance Request), NO P3.8 Output 2 (Maintenance Request), COM P3.9 Output 3 (Out of Spec), NC P3.10 Output 3 (Out of Spec), NO P3.11 Output 3 (Out of Spec), COM P3.12 Output 4 (Function check), NC P4.1 Output 4 (Function check), NO P4.2 Output 4 (Function check), COM P4.3 not used P4.4 P4.5 P4.6 P4.7 P4.8 P4.9 P4.10 P4.11 P4.12
Relay Outputs
**)
Analog Outputs
Serial Interface
*)
**)
Conguration of relay output termi-
nals as per standard factory setting
(NAMUR status signals)
Analog signals
Relay outputs 1-4
Terminals for analog signals and relay outputs
1 - 4 are located on the outer left module
(terminal block X1; Fig. 4-18).
Specication of analog signal outputs: 4(0)–20 mA; burden: R
B
≤ 500 Ω
Specication of relay outputs 1-4: max. 30 VDC, 1 A, 30 W
Note
Dry relay change-over contacts, can be used as
NO or NC.
