Emerson Process Management GmbH & Co. OHG 4-19
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
4
Installation
Power supply
Optional DC Supply for X-STREAM XEGK
24 VDC is supplied to the unit by means of a
three-pin XLR connector on the rear panel of
the instrument.
Depending on the order, the following is sup-
plied as an accessory: either
• an external power supply unit which can
be connected directly to the analyzer using
the supplied cable
or
• a connector which can be used with a
cable and PSU as specied by the cu-
stomer.
Note the conguration of the connector´s pins
(
Fig. 4-14).
X-STREAM XEGK and XEGP
AC power is supplied to the unit by means of
a three-pin IEC connector on the rear panel
of the instrument.

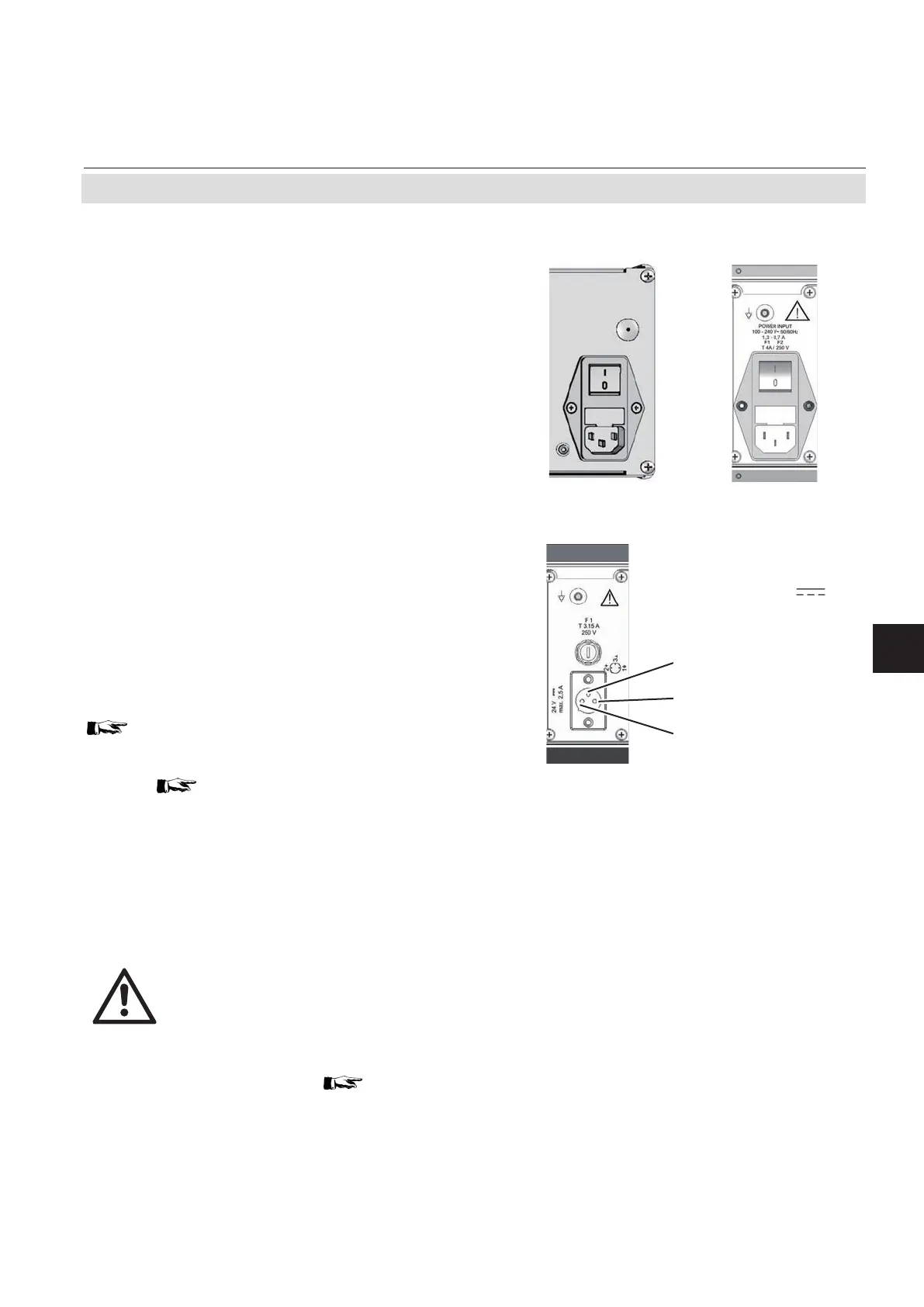

Fig. 4-14: Power Supply Connectors
Details of any PSUs supplied with the unit are
given on 2-9.
4.6.1 Installation - X-STREAM XEGK, X-STREAM XEGP
XEGP AC connectors XEGK
DC connector XEGK
1: ME
2: + 24 V
3: 0 V (⊥)
2
1
3
To achieve best and proper
measuring results you must
ensure the gas path system
does not have leaks.
For this reason we recommend to carry out a
leak test, as it is described within
„Chapter 7
Maintenance and other procedures“.
Completing the installation process
